32 7603-K507 Peripheral Integration, Blk7, XR6
Installing the Customer Display
The Customer Display may be installed either on the front or rear end of the Tray
Support Bracket. If a SpacePole arm is used for the display head and the SpacePole
mounting holes should use the inner mounting holes of the bracket, install the Customer
Display on the front end.
To install a 597x Customer Display, a short or long post is required. For more
information, refer to Customer Display Post Mount (5976-K837/K838).

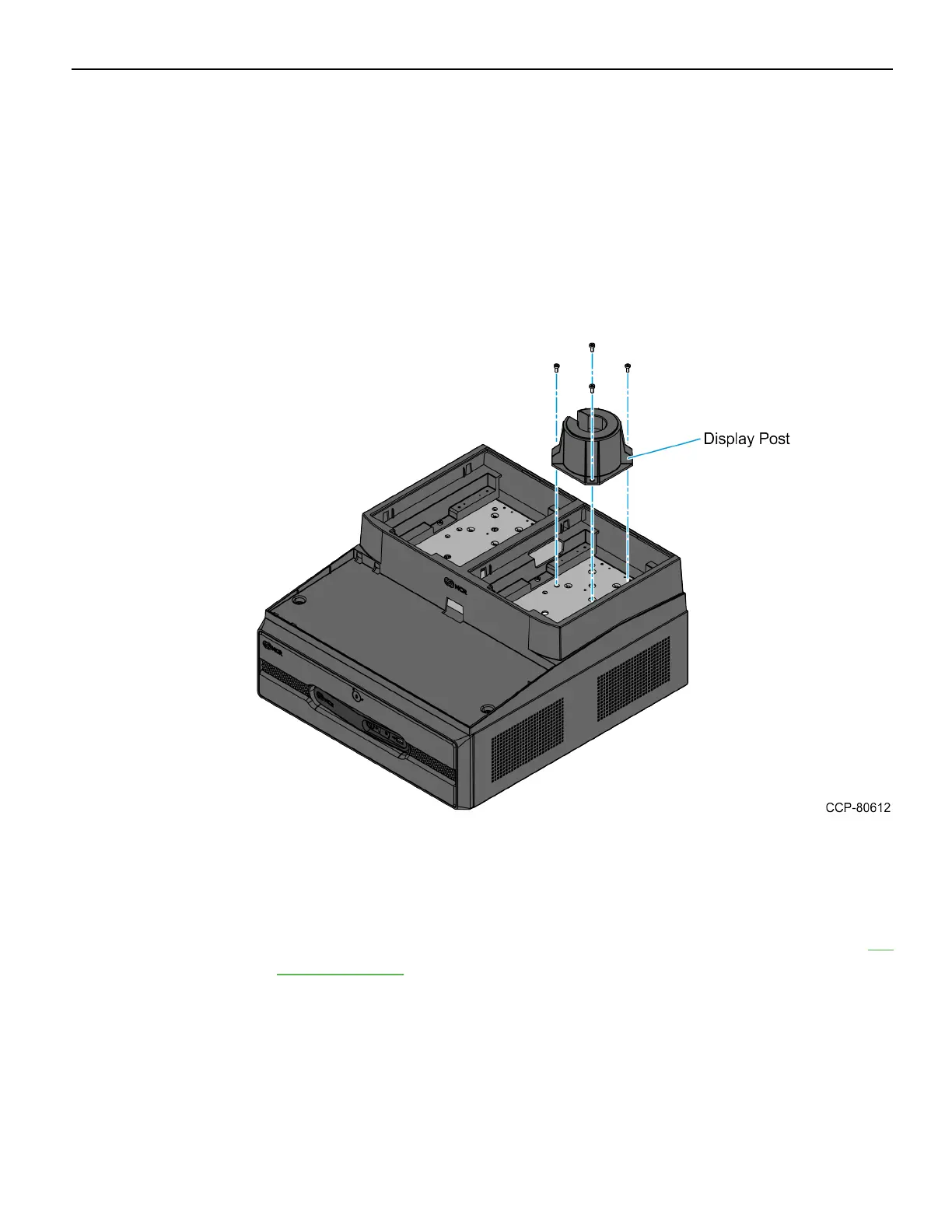

1. Install the Customer Display Post.
a. Position the Customer Display Post on top of the Tray Support Bracket.
b. Align the mounting holes on the post with the mounting holes on the bracket,
and secure the post using four #8Phillips screws.
c. For configurations without a customer display, install the Filler Cap. Refer to No
Customer Display on page35
