RS-232 Installation

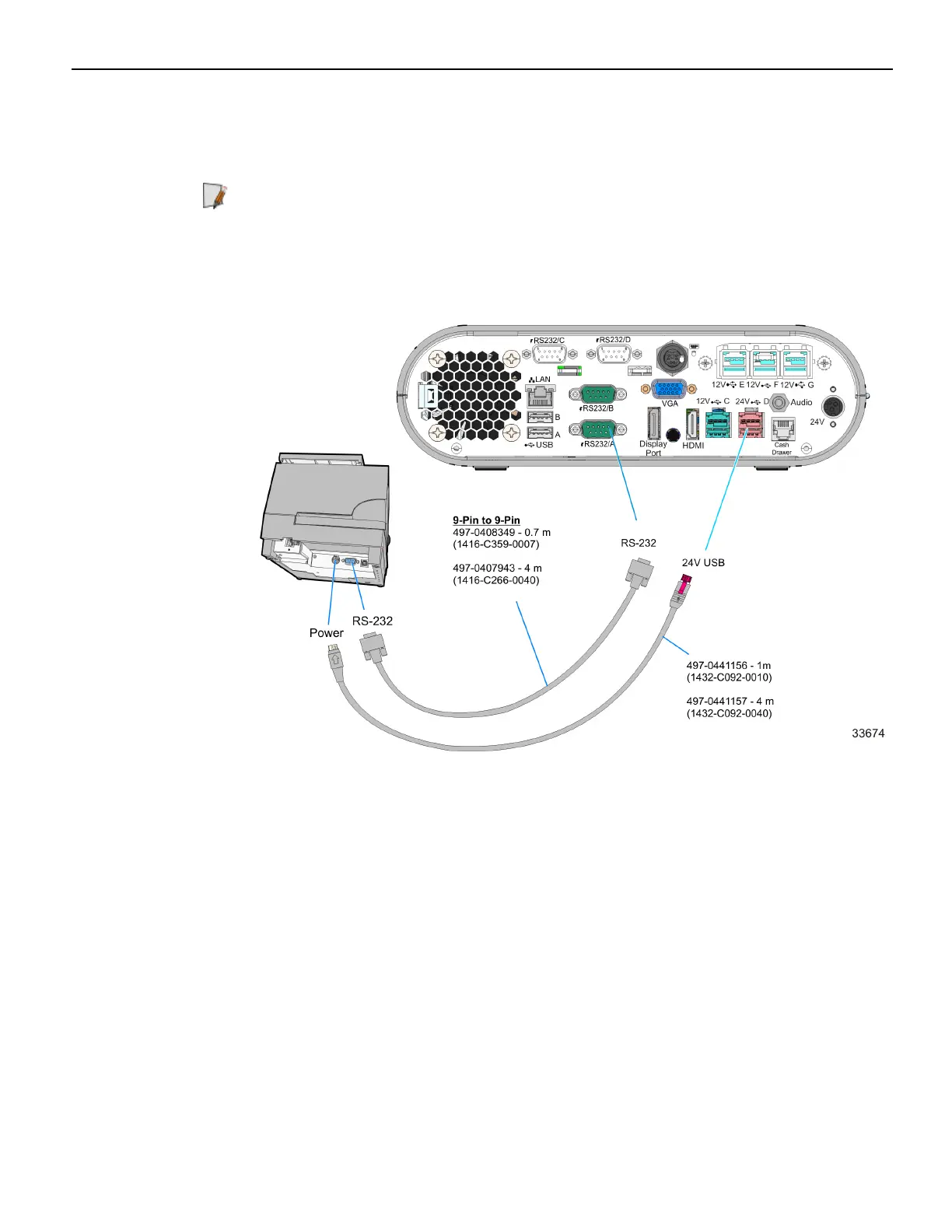

1. Connect the RS-232 Printer Interface Cable to the RS-232 connector on the printer

and to a non-powered RS-232 connector on the terminal.

Note: The factory default setting for the RS-232 ports is powered. See the Appendix:

Powered Serial Port Settings.

2. Connect the Powered USB Printer Interface Cable to the Power Connector on the

printer and to the 24V Powered USB Connector on the terminal.
