28 7603-K507 Peripheral Integration, Blk7, XR6
Connecting NCR 5943/5967 15-inch LCD Cables

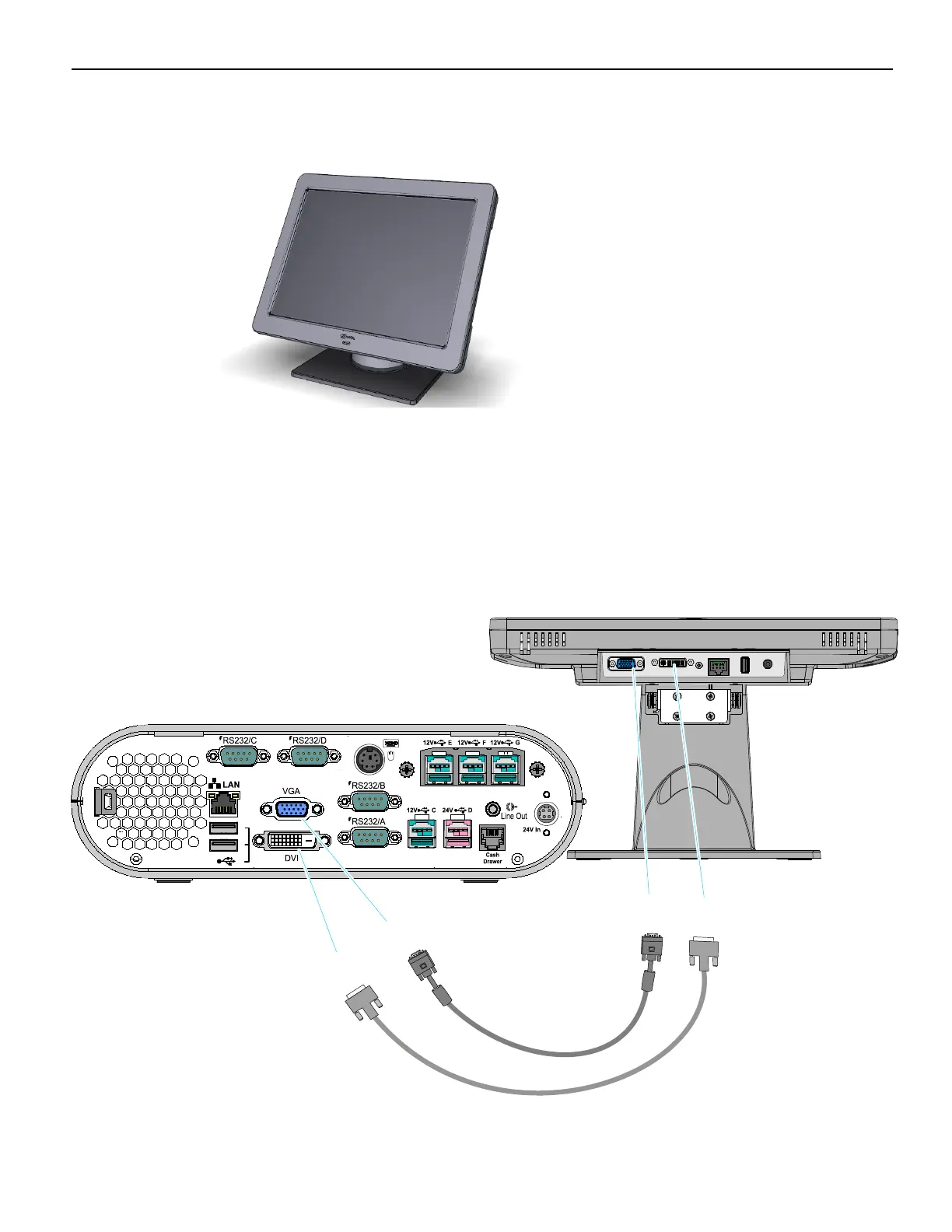

The following illustrations show the cable connections for the 5943 LCD and the 7603
terminal. There are two cables required.
• VGA or DVI cable for video
• Powered Universal Serial Bus (USB) for data and power
VGA/DVI Connections
Connect either a VGA or an HDMI to DVI cable.
32033
A
B
VGA
VGA
497-0446721 - 1.0 m
(1432-C191-0010)
497-0446722 - 4.0 m
(1432-C191-0040)
DVI
497-0435044 - 1m
(1416-C972-0009)
497-0435045 - 4m
(1416-C972-0040)
DVI
To Next Page
