RealPOS XR7 Integration Tray Kit Instructions 3
Installation Procedures
The Integration Tray can be installed on an NCR 2181 Cash Drawer or it can be installed
directly onto a counter top.
Installing on a Cash Drawer

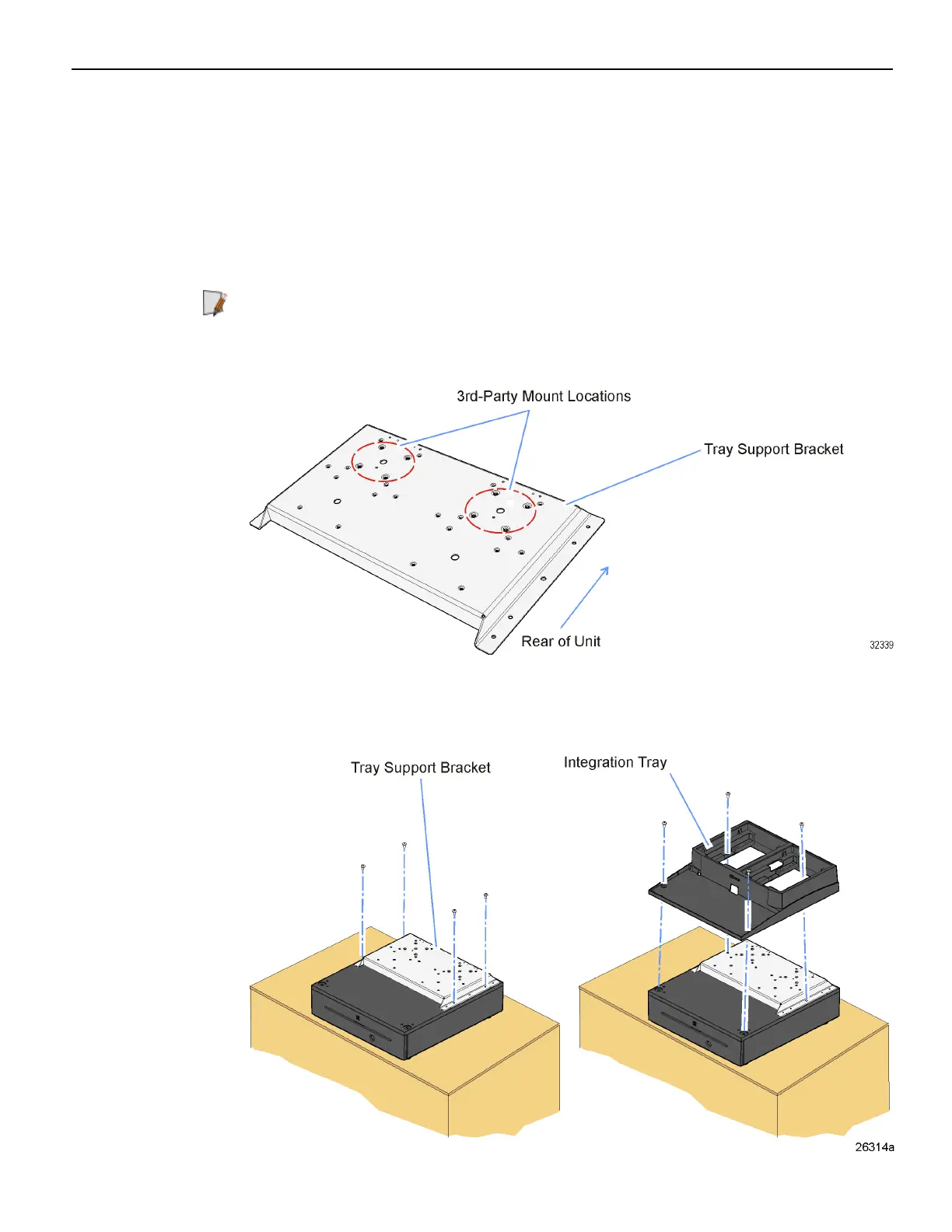

1. Position the Tray Support Bracket on a Cash Drawer and secure it using the supplied
screws (4).
Note: The mounting holes for the 3rd-party mount much be located toward the
rear of the unit.
2. Position the Integration Tray on top of the Tray Support Bracket and secure it with
screws (4).
