RealPOS XR7 Integration Tray Kit Instructions 5
Installing the Keyboard
Note: If a keyboard is not used, insert the Integration Tray Plug into the opening
where the keyboard cable would normally be routed.

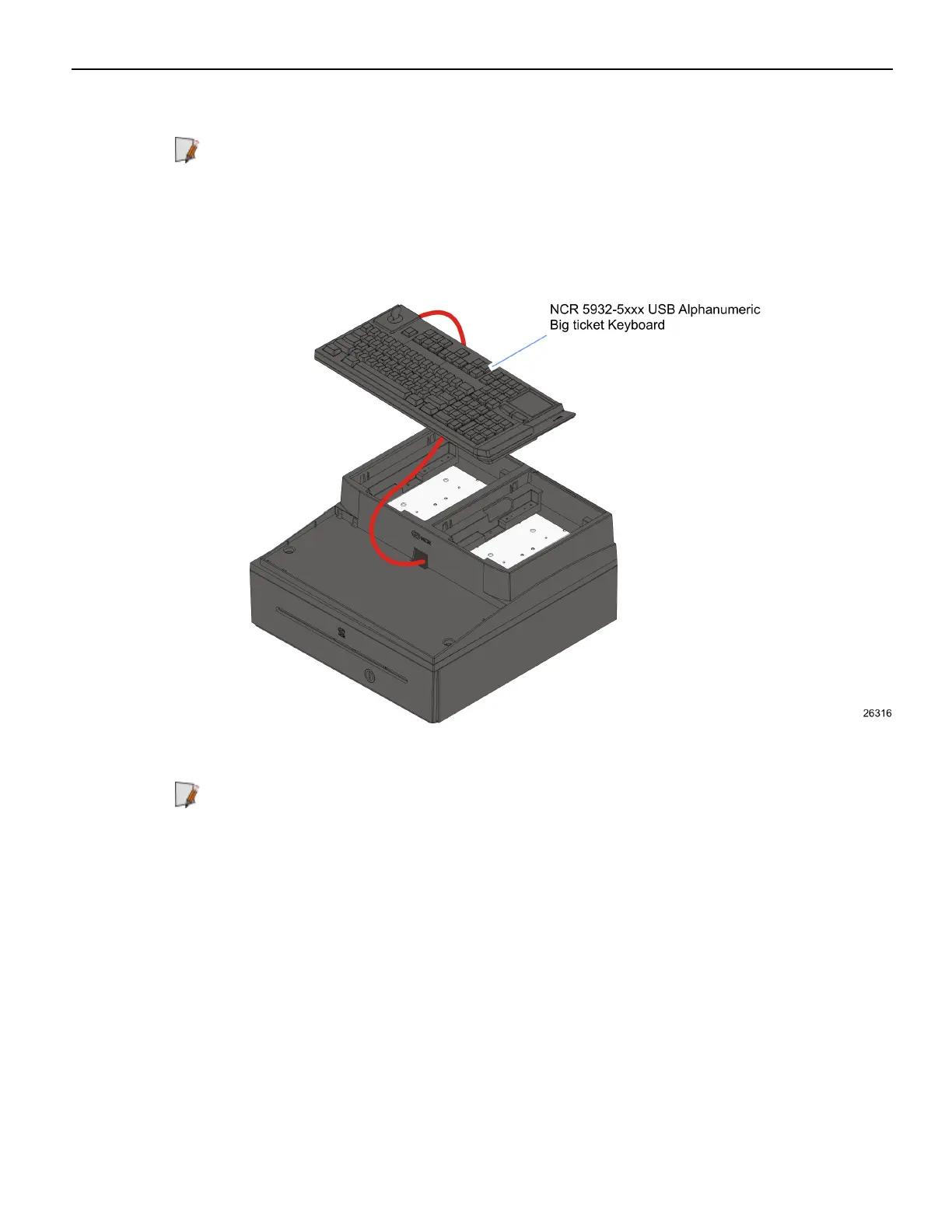

1. Install the keyboard in the Integration Tray.
2. Route the cable through the opening in the Integration Tray. It will be routed up
through the XR7 Mount later when the XR7 is installed.
Compact Keyboard: Install the Keyboard Tray Insert beside the keyboard.
Note: There are two Keyboard Tray Inserts. The narrow tray is used in all cases except
when using the 5932 65xx PS/2 model without an MSR.
To Next Page
