For installing the GT12ZLB
Preparation: Tools needed for installation:
A hexagonal driver is supplied with the optional lens.

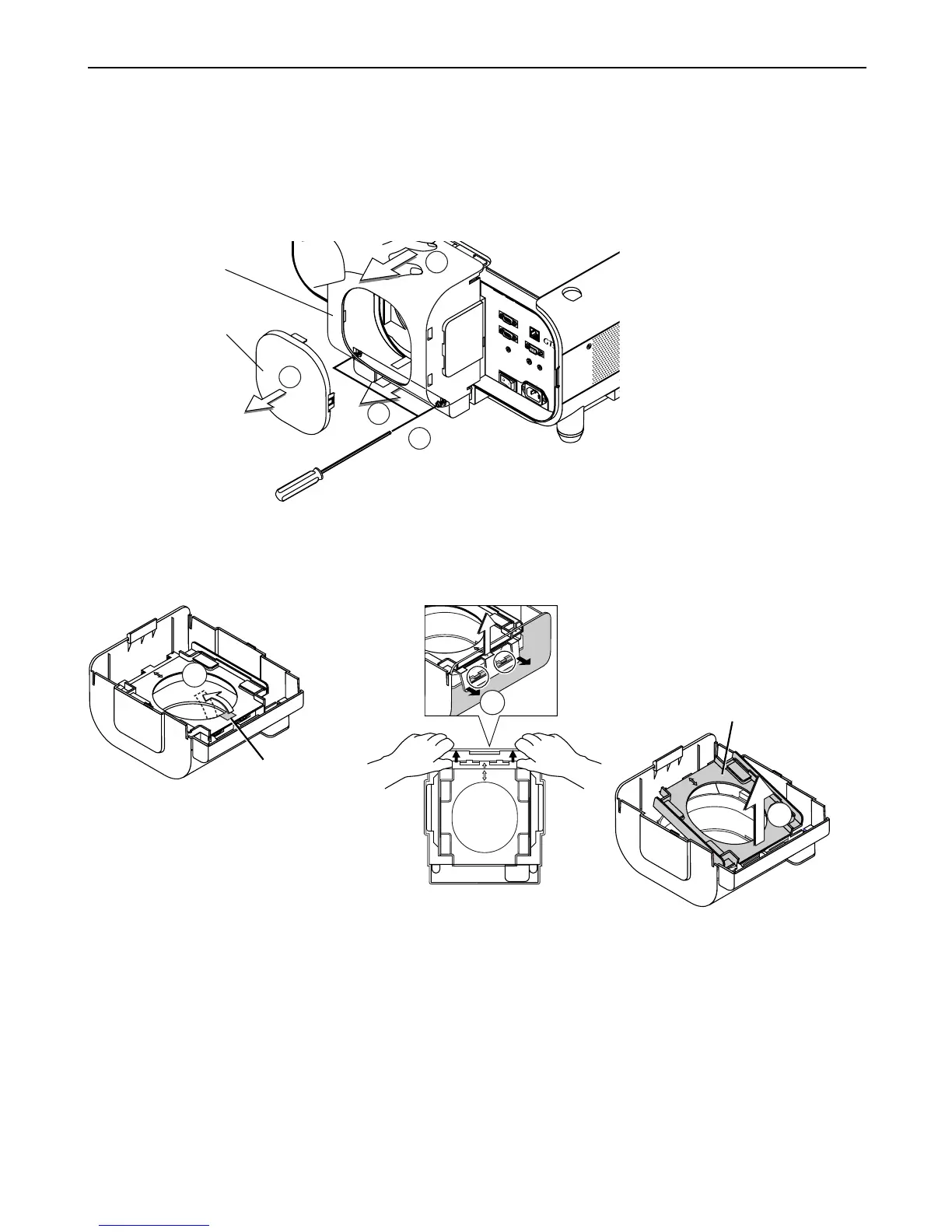

1. Remove the lens hood cap and lens hood.
q Remove the lens hood cap.
w Loosen and remove the 2 screws on the lens hood using the hexagonal driver.
e Remove the lens hood by pushing down and pulling the top toward you.
PC CARD
PC CONTROL
IN
IN
OUT
OU
T
SC TR
IGGE
R
R
EMOTE 2
R
EM
OTE 1
LAN
AC IN
U
SB
(
MO
US
E/HUB
)
U
SB
(
PC
)
2
1
B/Cb
V
H/
HV
R
L/MONO
R
L/MONO
-
V
ID
E
O
1
2
3
3
Lens hood
Lens hood cap
2. Remove the dust-protective plate.
q Remove the shipping tape on the back of the lens hood.
w Pull on the portion of the dust-protective plate hooked at the two locations at the same time.
e Remove the dust-protective plate from the lens hood.
1
Shipping tape
2. Installation
2
3
Dust-protective plate
To Next Page
