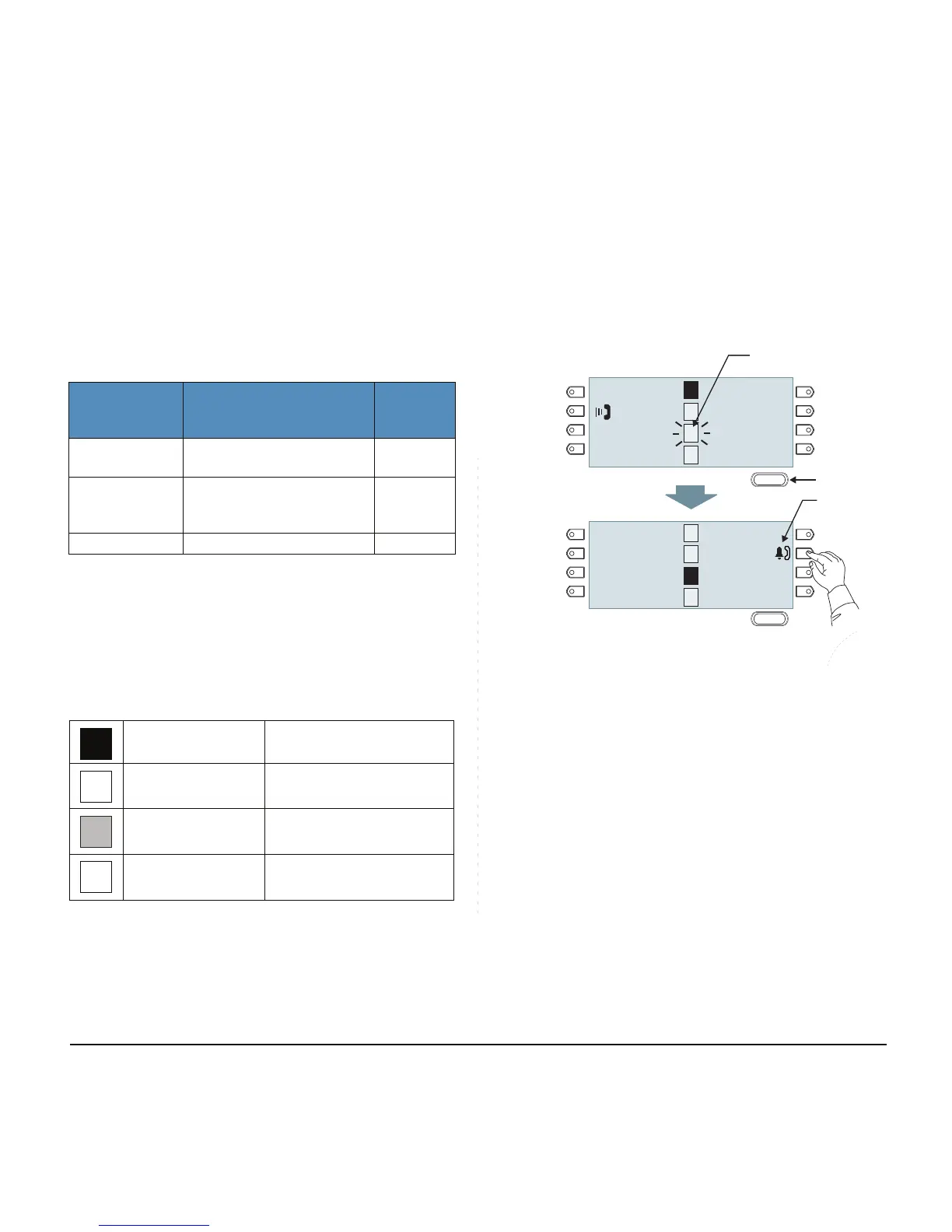

(b) Programmable Key Information
Programmable Key Information displays the fol-
lowings.
(c) Page Icon (DTL-8LD, ITL-8LD only)
DESI-less screen has four pages (8 programma-
ble keys per page). Page Icon key indicates cur-
rently displayed page. You can switch the
programmable key display from page 1 to 4 by
using Scroll key.
.
Example: Page Turning by Scroll Key
Key Description
Maximum
digits to be
displayed
Line Key
- Name and Number informa-
tion
8 digits.
One-Touch
Speed Dial Key
- Speed Dial Name Informa-
tion
- Number Information
8 digits.
Feature Key - Feature Name 6 difits.
Programmable Key
1-8
Black background indicates
currently displayed page.
Programmable Key
9-16
Programmable Key
17-24
Flashing indicates page with
event happening.
Programmable Key
25-32
Note:
The icon flashes during events such as call termi-
nation to a line key or call back.
Note:
For ITL-8LDE-1, DESI-less screen has only one
page. Thus, Page Icon is not displayed.
1
2
3
4
Note:
For example, when an incoming call is terminated
to a line key on Page 3 while Page 1 is being dis-
played on the screen, the screen is not automati-
cally switched from Page 1 to page 3. You must
display Page 3 manually and then answer the
incoming call.
Scroll
Scroll
BEN
RACHEL
LINDA
PAUL
012345
HANNAH
FDA
FDN
Key No. 1
Key No. 2
Key No. 3
Key No. 4
Key No. 5
Key No. 6
Key No. 6
Key No. 8
MICHAEL
PETER
JULIA
JAMES
POWELL
Switch Page
Key No. 17
Key No. 18
Key No. 19
Key No. 20
Key No. 21
Key No. 22
Key No. 23
Key No. 24
Press Feature Key 22 on Page 3
to answer incoming call.
Page 1
Page 3
Incoming
Call
Press twice.
Flashing
1
2
3
4
1
2
3
4
