32

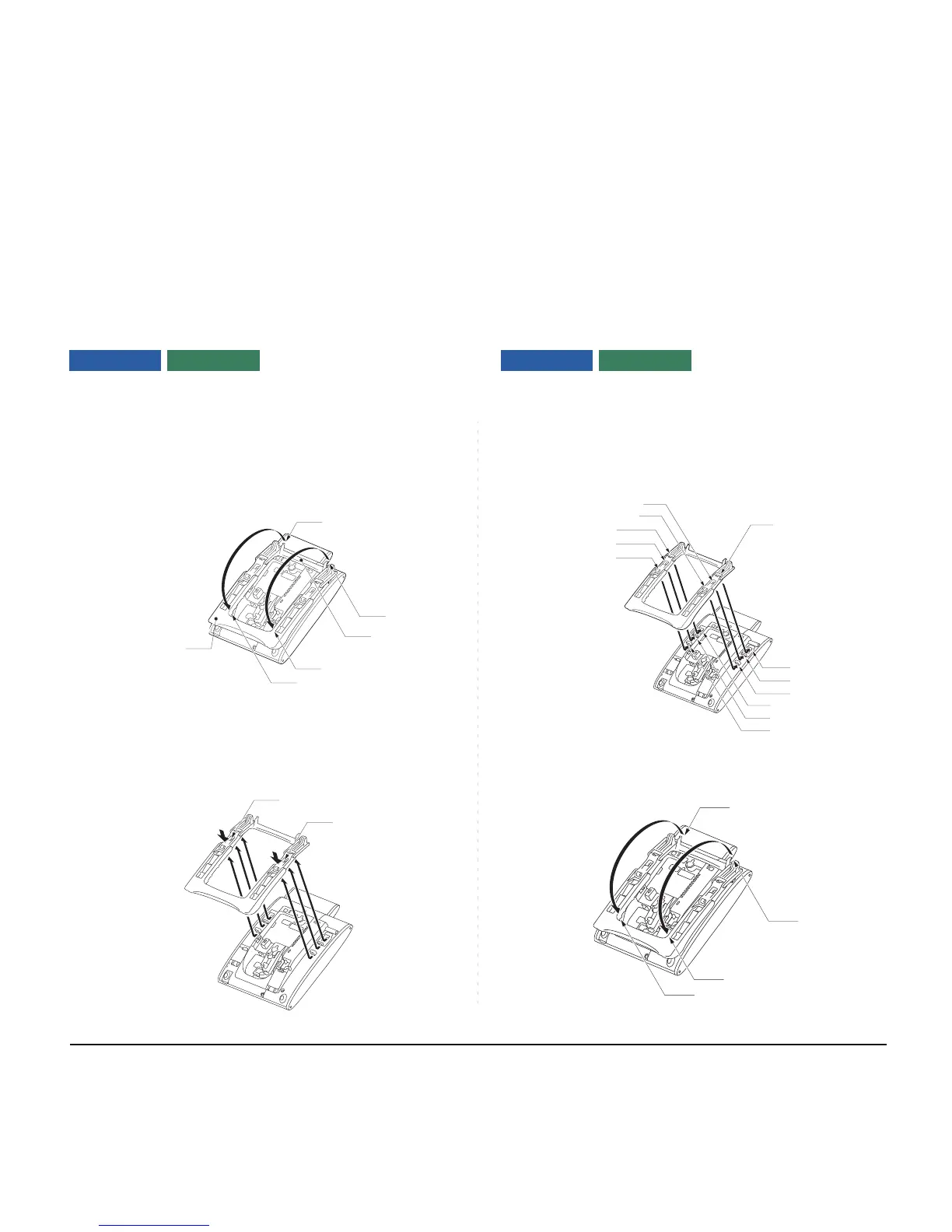

TO REMOVE TILT LEG
STEP 1: Turn the telephone set upside down.
STEP 2: Lower the tilt leg to first level.
STEP 3: Remove the indicated portions (a and b) of
the stopper from grooves (A and B) on the tilt
leg and then widen the tilt leg.
STEP 4: While pushing the two hooks, slide the tilt leg
downward. Remove the tilt leg from the termi-
nal.
TO ATTACH TILT LEG
STEP 1: Turn the telephone set upside down.
STEP 2: Align the hooks (c-h) of the tilt leg over the ap-
propriate slots (C-H) of the telephone set.
STEP 3: Slide the tilt leg upward until the hooks (c and
b) click into place.
STEP 4: Fit the indicated portions (a and b) of the stop-
per into the grooves (A and B) on the tilt leg.
DT730/710
DT330/310
Stopper
a
A
B
b
Tilt Leg
d
c
DT730/710
DT330/310
f
g
c
d
h
e
E
C
G
F
D
H
a
A
B
b
