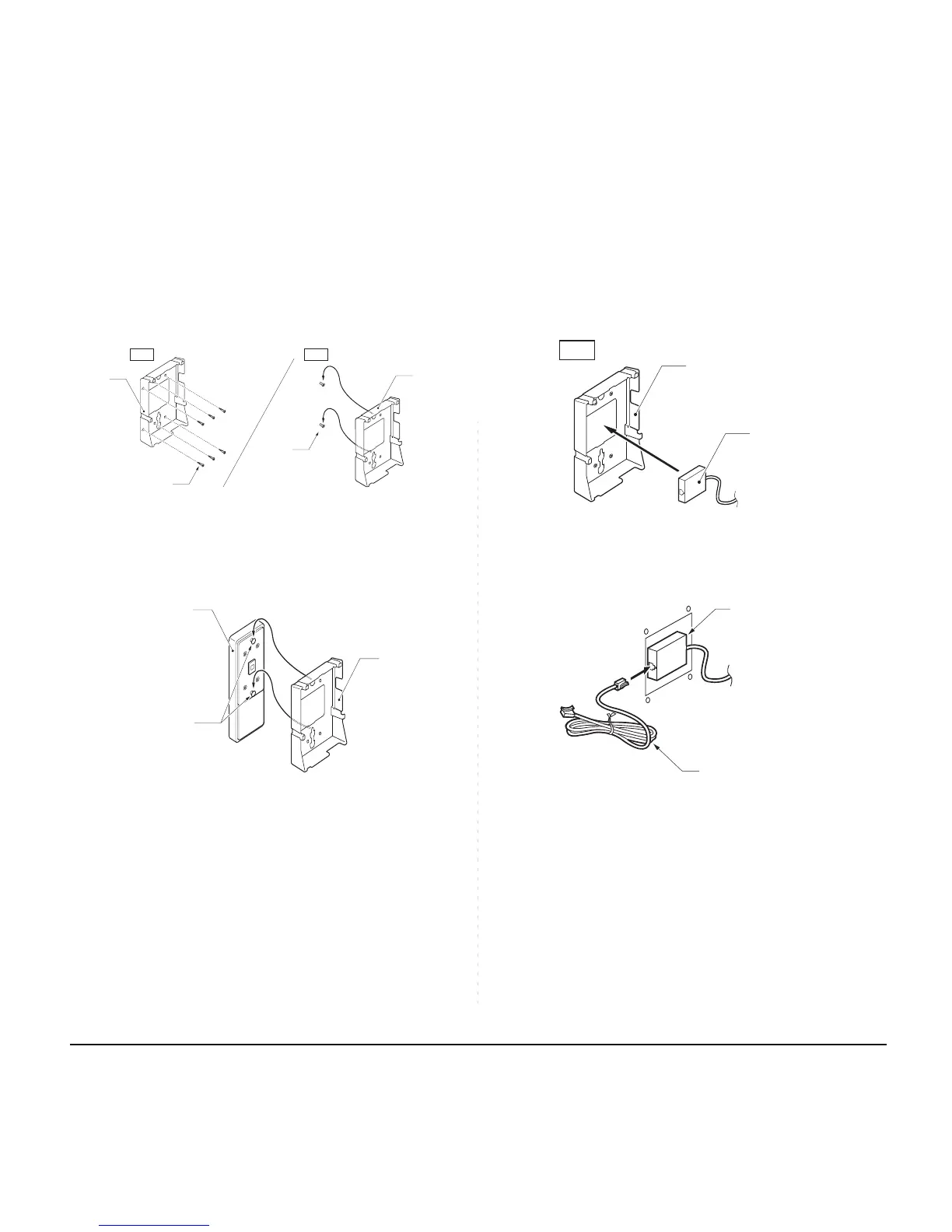

- When attaching WM-L UNIT to the wall plate:
Attach WM-L UNIT to the posts on the wall
plate as shown in the figure below.
The remainder of the procedure varies between DT300
Series and DT700 Series.
- In the case of DT300 Series: Go to the next step.
- In the case of DT700 Series: Go to Step 8 after the
LAN cable is connected to the telephone.
STEP 4: Attach the modular terminal to the wall as
shown in the following figure. If the modular
connector is attached directly on the wall or
the wall plate is used instead of modular ter-
minal, skip this step.
STEP 5: Insert the line cord plug (included with the
telephone set) into the modular connector.
STEP 6: Insert the line cord plug into the LINE connec-
tor on the back of the telephone. Wrap the ex-
cess cord and secure it with a tie wrap.
STEP 7: Thread the coiled cord through the groove on
the back of the telephone as shown in the fig-
ure below.
To Next Page
