NEC NP4100 - Pin Assignments of Mini D-Sub 15 Pin Input Connector

8. Specifications
128

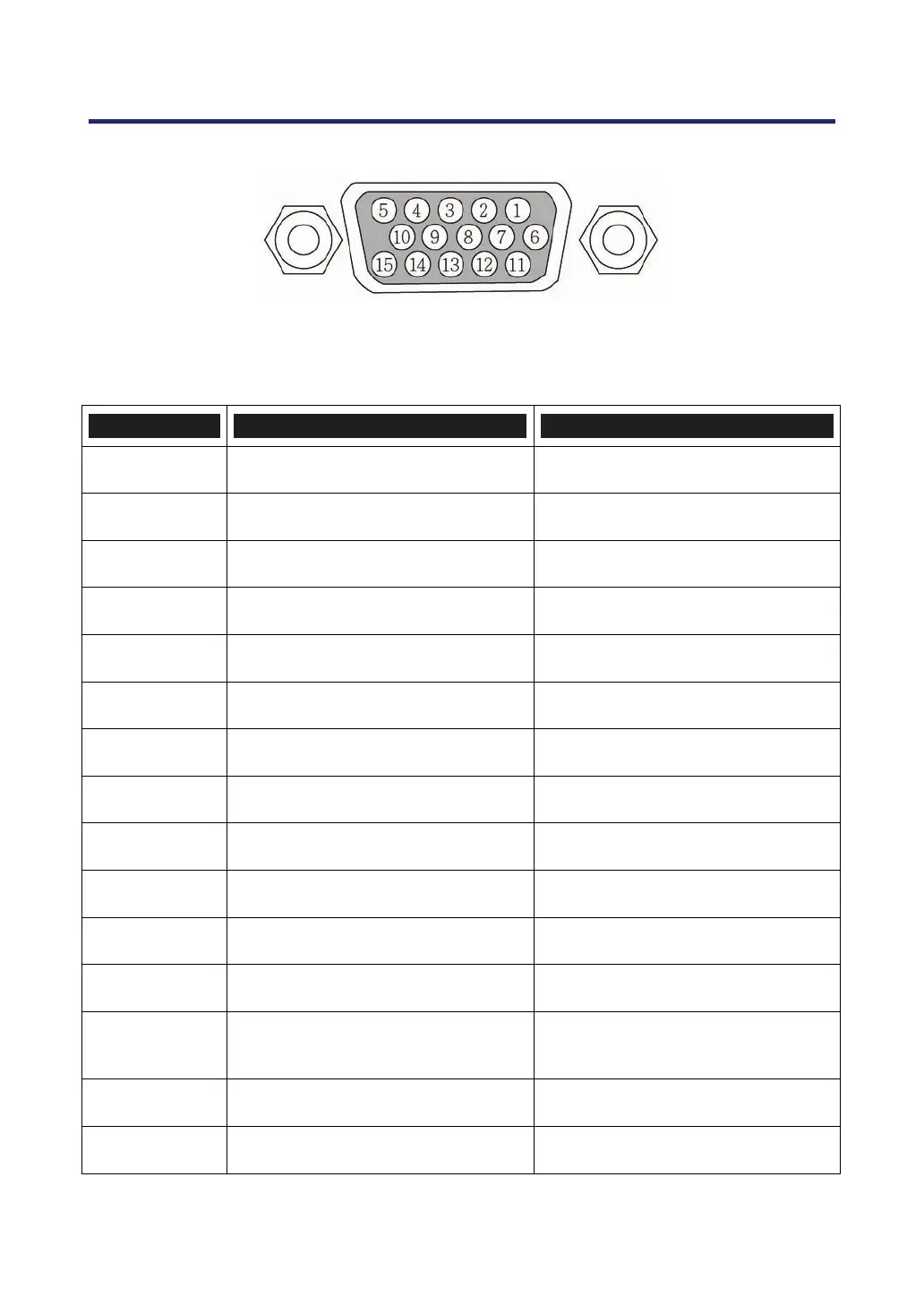

 Pin Assignments of Mini D-Sub 15 Pin Input Connector
Signal Levels
Video signal: 0.7Vp-p (Analog)
Sync signal: TTL level
PIN NUMBER RGB SIGNAL (ANALOG) YCBCR SIGNAL
1.
Red Cr
2.
Green or Sync on Green Y
3.
Blue Cb
4.
Ground
5.
Ground
6.
Red Ground Cr Ground
7.
Green Ground Y Ground
8.
Blue Ground Cb Ground
9.
No Connection
10.
Sync Signal Ground
11.
No Connection
12.
Bi-directional DATA (SDA)
13.
Horizontal Sync or Composite
Sync
14.
Vertical Sync
15.
Data Clock
