1. Introduction

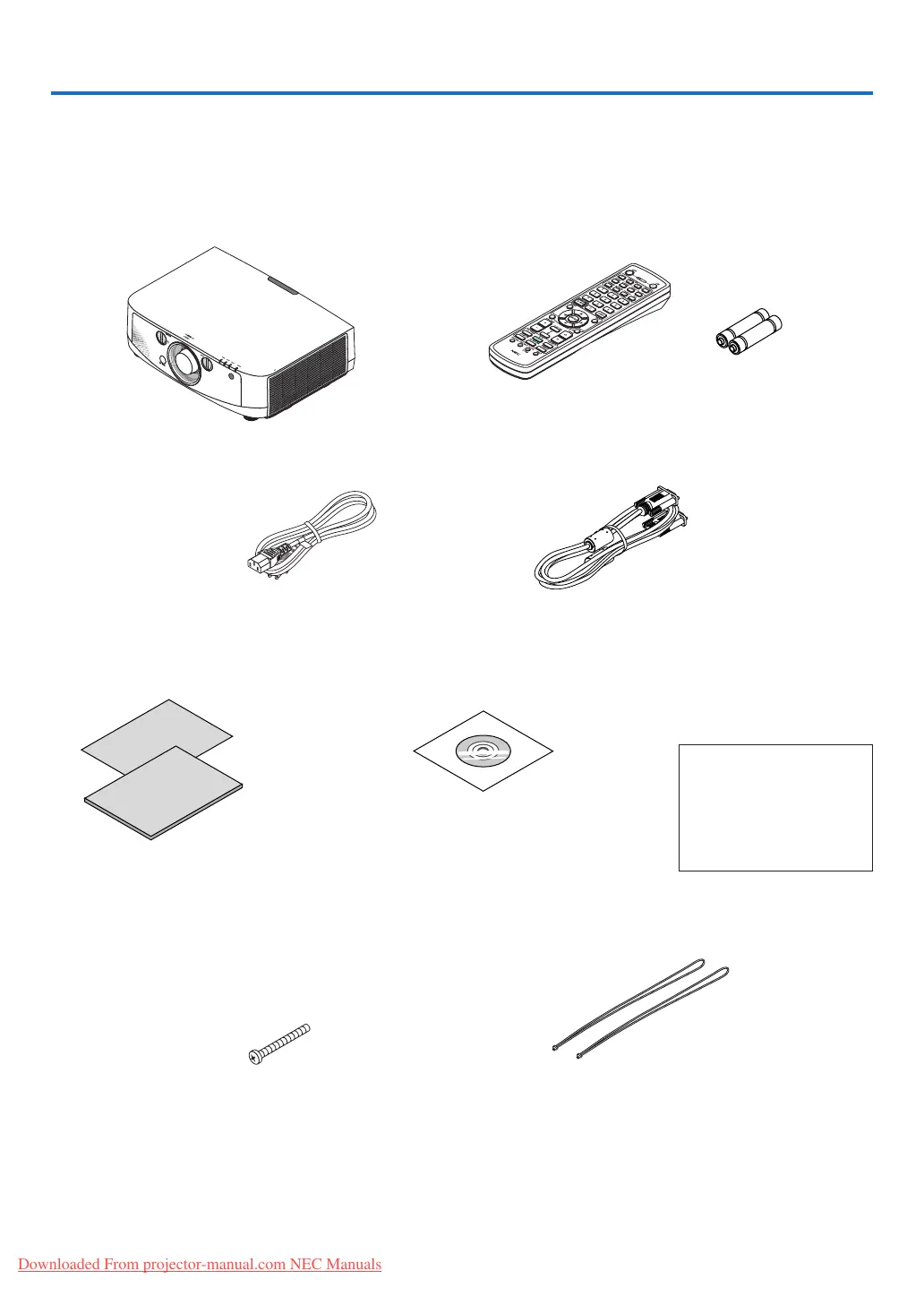

1 What’s in the Box?
Makesureyourboxcontainseverythinglisted.Ifanypiecesaremissing,contactyourdealer.
Pleasesavetheoriginalboxandpackingmaterialsifyoueverneedtoshipyourprojector.
Power cord
(US: 7N080236)
(EU: 7N080022)
Lens theft prevention screw (24V00841)
This screw makes it difficult to remove the
lens mounted on the projector. (→ page 142)
Straps (24J23901) (for preventing lamp and filter covers from
falling) (x2)
Attaching the straps to the lamp and filter covers prevents
them from falling when the projector is suspended from the
ceiling.
Computer cable (VGA)
(7N520073)
NEC Projector CD-ROM
User’s manual (PDF) and the utility
software
(7N951591)
For North America only
Registrationcard
Limitedwarranty
For customers in Europe:
YouwillndourcurrentvalidGuar-
anteePolicyonourWebSite:
www.nec-display-solutions.com
• ImportantInfomation(ForNorthAmerica:
7N8N1551) (For Other countries than North
America: 7N8N1551 and 7N8N1561)
• QuickSetupGuide(ForNorthAmerica:
7N8N1571) (For Other countries than North
America: 7N8N1571 and 7N8N1581)
Remote control
(7N900961)
AA alkaline batteries
(x2)
Dust cap for lens
* The projector is shipped without a
lens. For the types of lens and throw
distances, see page 201.
Downloaded From projector-manual.com NEC Manuals

NEC PA600X Specifications

General

Matrix size	0.8 \
Projection distance	0.74 - 20.9 m
Vertical scan range	48 - 120 Hz
Horizontal scan range	15 - 108 kHz
Projection technology	LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	25 - 500 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	30 °
Keystone correction, horizontal	40 °
Audio input	1
Aspect ratio	-
Dimensions (WxDxH)	499 x 366 x 164 mm
Maximum analog resolution	1920 x 1200 pixels
Focus	Manual
Focal length range	24.4 - 32.5 mm
Lamp power	330 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Ethernet LAN	Yes
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Product type	Large venue projector
Product color	White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	16 W
Power consumption (typical)	464 W
Power consumption (PowerSave)	372 W
Noise level	38 dB
Certification	UL, C-UL, NOM
Noise level (economic mode)	31 dB
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	VGA

Weight and Dimensions

Weight	7700 g
