NEC PA600X User Manual

4
1. Introduction

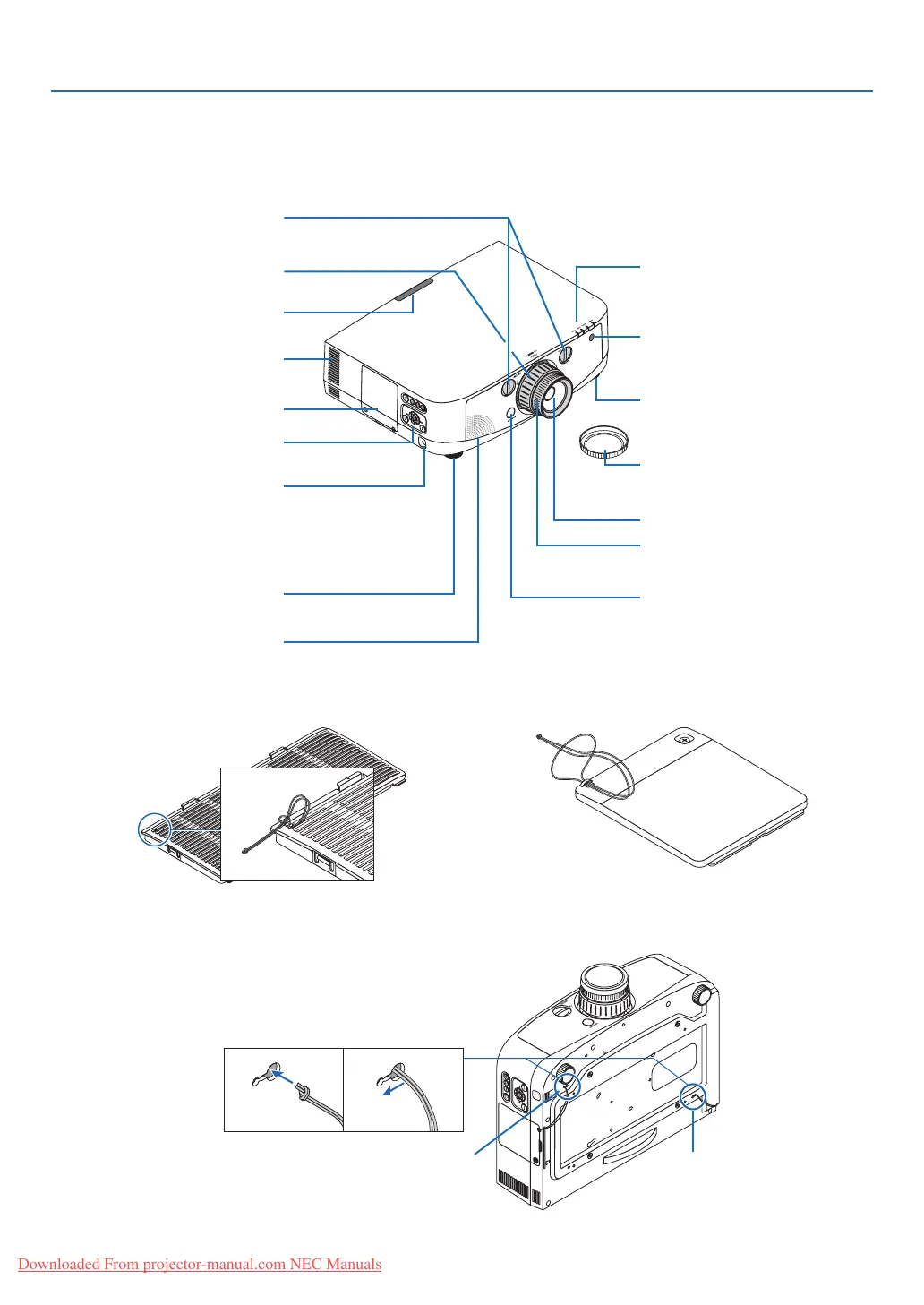

 Part Names of the Projector
Front/Top
Thelensissoldseparately.ThedescriptionbelowisforwhentheNP13ZLlensismounted.
Control Panel
(→ page 6)
Lens Shift Dial (vertical/horizontal)
(→ page 18)
Lens
Remote Sensor (located on the
front and the rear)
(→ page 9)
Remote Sensor
(→ page 9)
Zoom Lever/Zoom Ring (→ page 21)
Lens Cap
(The optional lens is shipped with
the lens cap.)
Focus Ring
(→ page 19)
Adjustable Tilt Foot
(→ page 21)
Indicator Section
(→ page 6)
Lens Release Button
(→ page 142)
Adjustable Tilt Foot
(→ page 21)
Ventilation (outlet)
Heated air is exhausted from here.
Mountingthestraps
1. Mount the straps to the filter cover and lamp cover as shown on the diagram below.
2. Insert the knot in the strap into the hole on the bottom of the projector and pull in the direction of the arrow
to fasten.
12
Lamp Cover (→ page 160)
Security Bar
Attach an anti-theft device.
The security bar accepts security
wires or chains up to 0.18 inch/4.6
mm in diameter.
Monaural Speaker (10 W)
Lamp cover strap insertion hole Filter cover strap insertion hole
Downloaded From projector-manual.com NEC Manuals

NEC PA600X Specifications

General

Matrix size	0.8 \
Projection distance	0.74 - 20.9 m
Vertical scan range	48 - 120 Hz
Horizontal scan range	15 - 108 kHz
Projection technology	LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	25 - 500 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	30 °
Keystone correction, horizontal	40 °
Audio input	1
Aspect ratio	-
Dimensions (WxDxH)	499 x 366 x 164 mm
Maximum analog resolution	1920 x 1200 pixels
Focus	Manual
Focal length range	24.4 - 32.5 mm
Lamp power	330 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Ethernet LAN	Yes
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Product type	Large venue projector
Product color	White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	16 W
Power consumption (typical)	464 W
Power consumption (PowerSave)	372 W
Noise level	38 dB
Certification	UL, C-UL, NOM
Noise level (economic mode)	31 dB
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	VGA

Weight and Dimensions

Weight	7700 g
