NEC PA600X User Manual

13
2. Projecting an Image (Basic Operation)
 Connecting Your Computer/Connecting the Power Cord
1. Connectyourcomputertotheprojector.
This section will show you a basic connection to a computer. For information about other connections, see “(2)
Making Connections” on page 143.

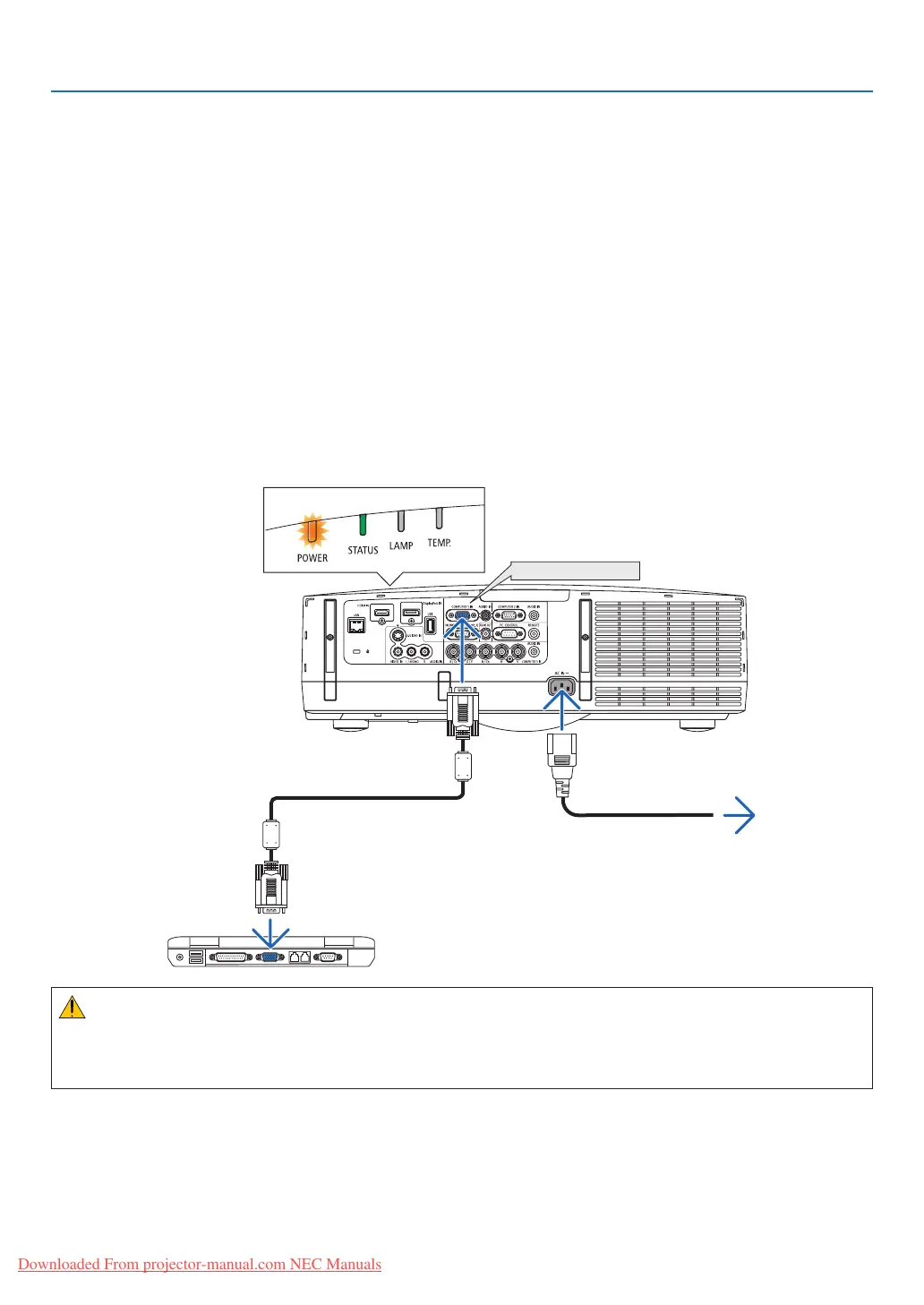

Connect the computer cable (VGA) between the projector’s COMPUTER 1 IN connector and the computer’s port
(mini D-Sub 15 Pin). Turn two thumb screws of both connectors to fix the computer cable (VGA).
2. Connectthesuppliedpowercordtotheprojector.
First connect the supplied power cord’s three-pin plug to the AC IN of the projector, and then connect the other
plug of the supplied power cord in the wall outlet.
The projector’s power indicator will light orange* (standby mode).
The STATUS indicator will also light green*.
* This will apply for both indicators when [NORMAL] is selected for [STANDBY MODE]. See the Power Indicator
section.(→ page 214)
COMPUTER 1 IN
Make sure that the prongs are fully inserted into
both the AC IN and the wall outlet.
To wall outlet
CAUTION:
PartsoftheprojectormaybecometemporarilyheatediftheprojectoristurnedoffwiththePOWERbuttonorifthe
ACpowersupplyisdisconnectedduringnormalprojectoroperation.
Usecautionwhenpickinguptheprojector.
Downloaded From projector-manual.com NEC Manuals

NEC PA600X Specifications

General

Matrix size	0.8 \
Projection distance	0.74 - 20.9 m
Vertical scan range	48 - 120 Hz
Horizontal scan range	15 - 108 kHz
Projection technology	LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	25 - 500 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	30 °
Keystone correction, horizontal	40 °
Audio input	1
Aspect ratio	-
Dimensions (WxDxH)	499 x 366 x 164 mm
Maximum analog resolution	1920 x 1200 pixels
Focus	Manual
Focal length range	24.4 - 32.5 mm
Lamp power	330 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Ethernet LAN	Yes
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Product type	Large venue projector
Product color	White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	16 W
Power consumption (typical)	464 W
Power consumption (PowerSave)	372 W
Noise level	38 dB
Certification	UL, C-UL, NOM
Noise level (economic mode)	31 dB
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	VGA

Weight and Dimensions

Weight	7700 g
