NEC PlasmaSync 42MP2

4

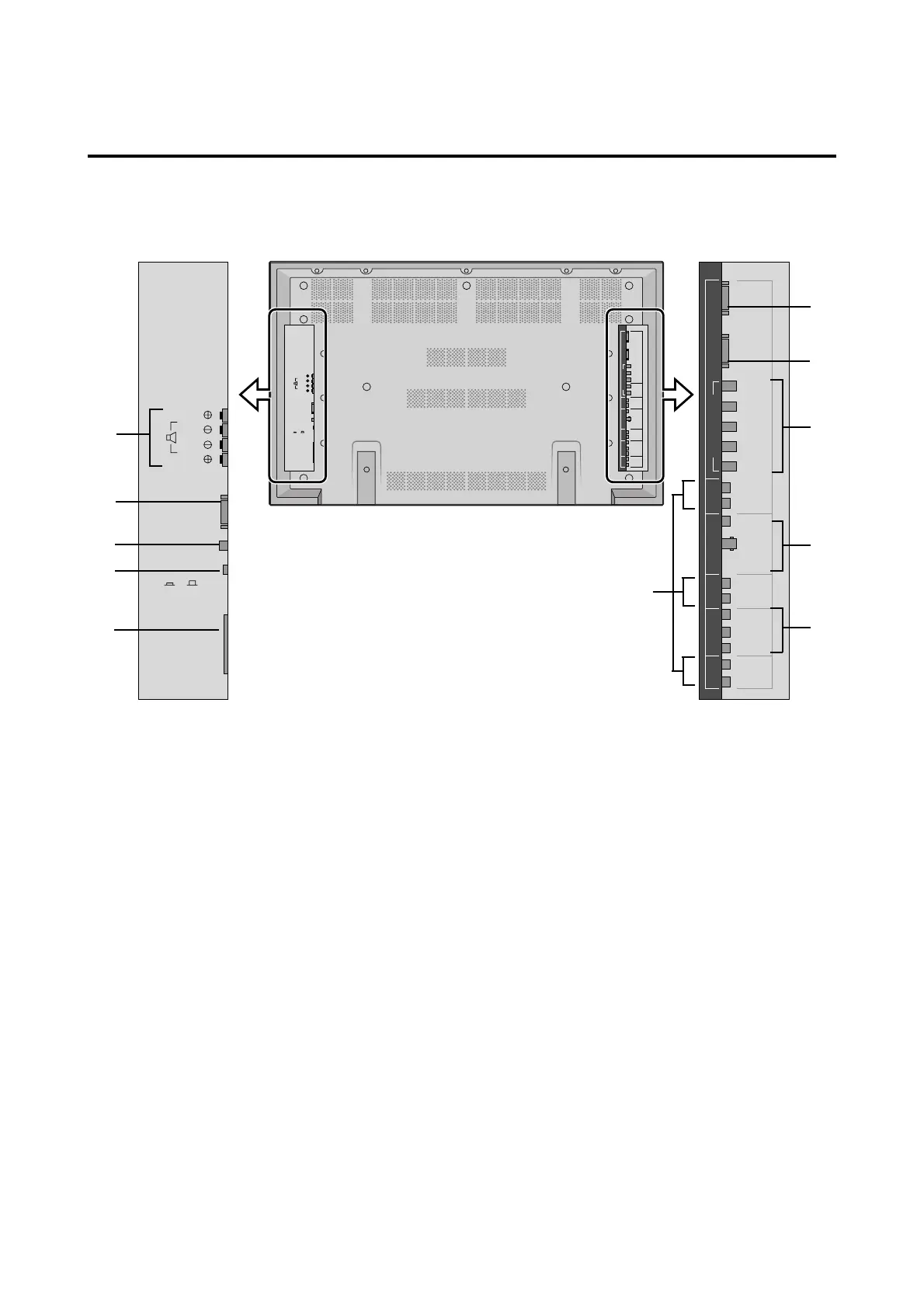

Rear View/ Terminal Board
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
LEFT
EXTERNAL
CONTROL
REMOTE
CONTROL
CONTROL
LOCK
ON/ OFF
AC IN
RIGHT
RGB 3
(Digital RGB)
RGB 1
R/CR/PR
G/Y
B/CB/PB
HD
VD
L(MONO)
R
L(MONO)
Y
CB/CR
PB/PR
R
L(MONO)
AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2
R
VIDEO 1
VIDEO 2
VIDEO 3
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
LEFT
EXTERNAL
CONTROL
REMOTE
CONTROL
CONTROL
LOCK
ON/ OFF
AC IN
RIGHT
RGB 3
(Digital RGB)
RGB 1
R/C
R /P R
G/Y
B/C
B /P B
HD
VD
L(MONO)
R
L(MONO)
Y
C
B /P B
C R /P R
R
L(MONO)
AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2
R
VIDEO 1
VIDEO 2
VIDEO 3
F
A EXT SPEAKER L and R
Connect speakers here.
B EXTERNAL CONTROL
This terminal is used when power ON/OFF, input se-
lection and AUDIO MUTE and other controls are oper-
ated externally (by external control). See also page 36
for external control.
C REMOTE CONTROL
Connect the supplied remote cable here.
D CONTROL LOCK
When “CONTROL LOCK” is set “ON”, the buttons on
the set's control panel do not function.
E AC IN
Connect the included power cord here.
G
H
I
J
K
A
B
C
D
E
F RGB3 (DVI 29pin)
Inputs a digital RGB signal (TMDS).
G RGB1
Inputs the analog RGB signal of personal computer, etc.
H RGB2/ DVD2/ HD2
RGB2: Inputs the analog RGB signal.
DVD2/ HD2: Connect DVD's, high definition Laser
Discs, etc. here.
I VIDEO1, 2, 3
Connect VCR's, DVD's or LaserDiscs, etc. here.
J DVD1 / HD1
Connect DVD's high definition LaserDiscs, etc. here.
K AUDIO1, AUDIO2, AUDIO3
These are audio input terminals.
The input is selectable. Set which video image to allot
them to on the menu screen.
