How to Attach Options to the Plasma Monitor
Drawing A
Drawing B
31
mm
(1.22")
1110
mm
(43.7")
748
mm
(29.5")
31
mm
(1.22")
50
mm
(2") 50
mm
(2")
Wall
Wall
Ventilation Requirements for
enclosure mounting
To allow heat to disperse, leave space between
surrounding objects as shown on the diagram be-
low when installing.

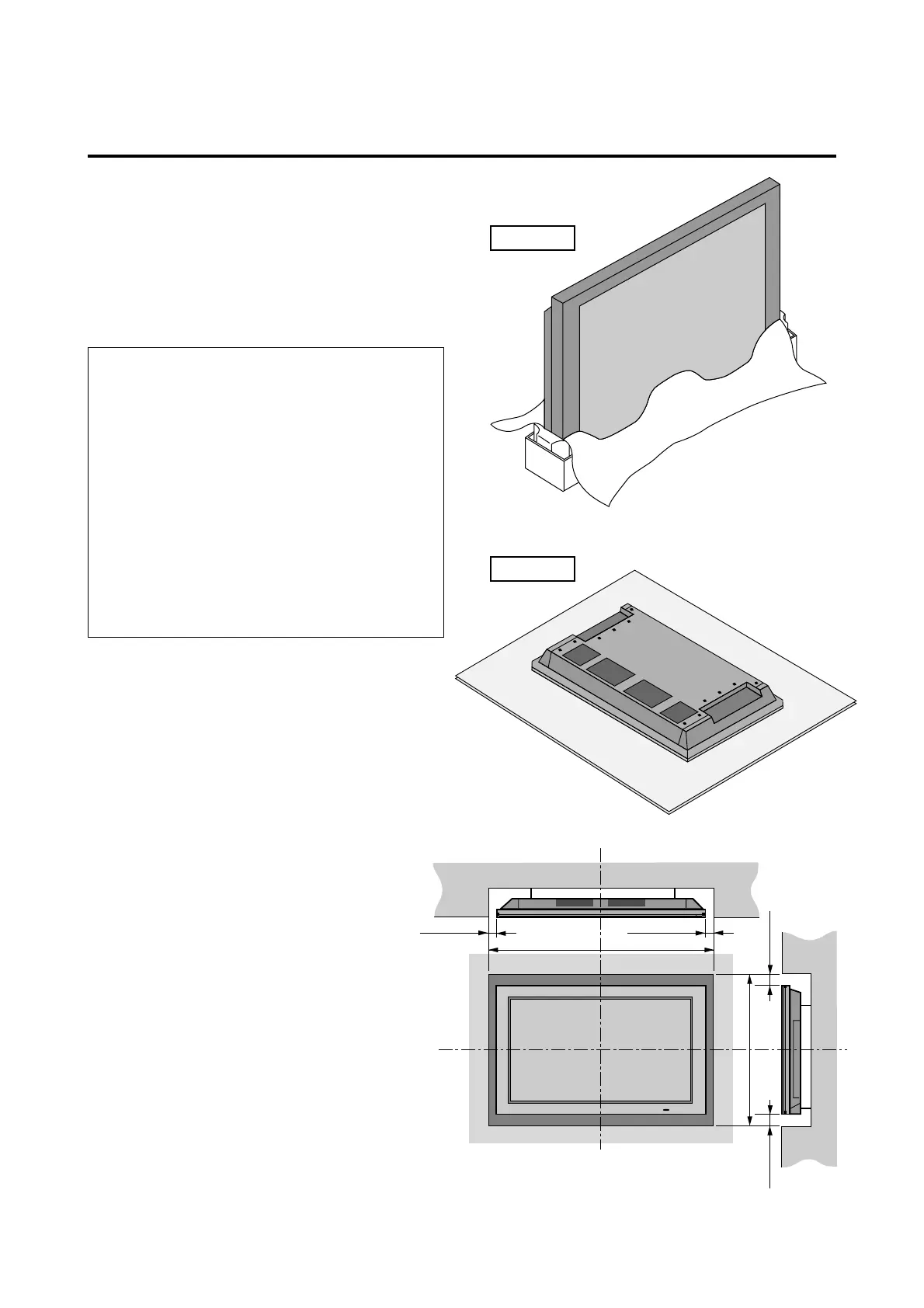

You can attach your optional mounts or stand to the plasma
monitor in one of the following two ways:
* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Draw-
ing B). Lay the protective sheet, which was wrapped
around the monitor when it was packaged, beneath the
screen surface so as not to scratch the screen face.
• This device cannot be installed on its own.
Be sure to use a stand or original mounting
unit. (Wall mount unit, Stand, etc)
* See page 2.
• For correct installation and mounting it is
strongly recommended to use a trained,
authorized NEC dealer.
Failure to follow correct mounting proce-
dures could result in damage to the equip-
ment or injury to the installer.
Product warranty does not cover damage
caused by improper installation.
