External Speaker Connections
External speakers may be connected to the plasma monitor
to reproduce sound from VIDEO, DVD or RGB signal
sources.
External speakers may be connected directly to the SPEAK-
ERS terminals or indirectly by connecting a stereo system
amplifier to the audio outputs.
CAUTION:
Unplug the plasma monitor and all con-
nected components before connecting external speak-
ers. Use only speakers with 6-ohm impedance and a
power output rating of 7 watts or more.

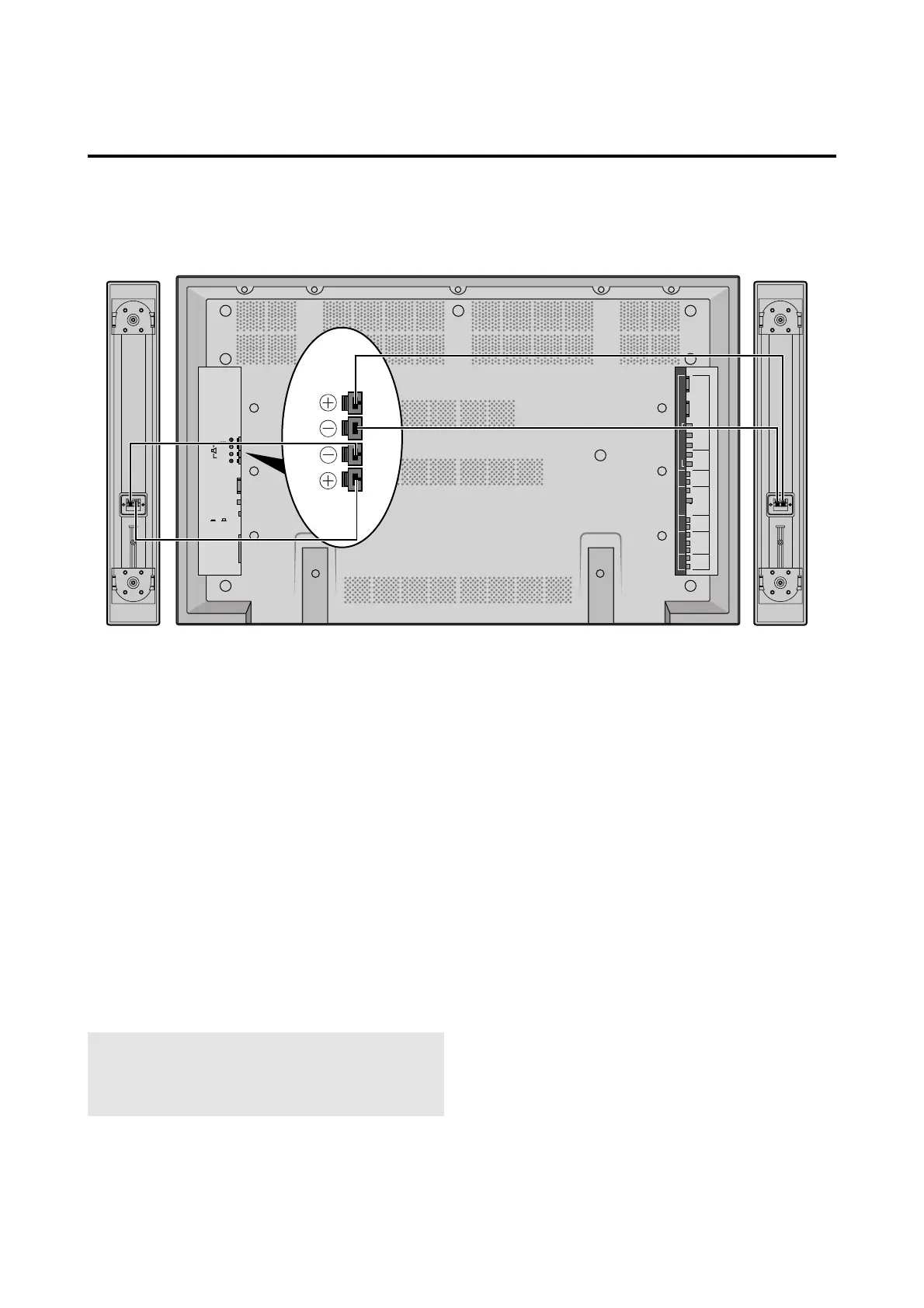

To connect external speakers directly to the plasma monitor:
1. Strip the ends of the speaker wires.
2. Press down the tabs below the SPEAKERS terminals,
insert the speaker wire and release the tab to secure the
speaker wire connection:
[a] Connect the right speaker (located at right side
of the monitor when viewed from the front)
positive (+) wire to RIGHT +.
[b] Connect the right speaker negative (–) wire to
RIGHT -.
[c] Connect the left speaker negative (–) wire to
LEFT–.
[d] Connect the left speaker positive wire (+) to
LEFT+.
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
LEFT
EXTERNAL
CONTROL
REMOTE
CONTROL
CONTROL
LOCK
ON/ OFF
AC IN
RIGHT
RGB 3
(Digital RGB)
RGB 1
R/CR/PR
G/Y
B/CB/PB
HD
VD
L(MONO)
R
L(MONO)
Y
CB/CR
PB/PR
R
L(MONO)
AUDIO 3 AUDIO 2 AUDIO 1 RGB2/ DVD2/ HD2
R
VIDEO 1
VIDEO 2
VIDEO 3
RIGHT
LEFT
