H
I
J
K
3
4

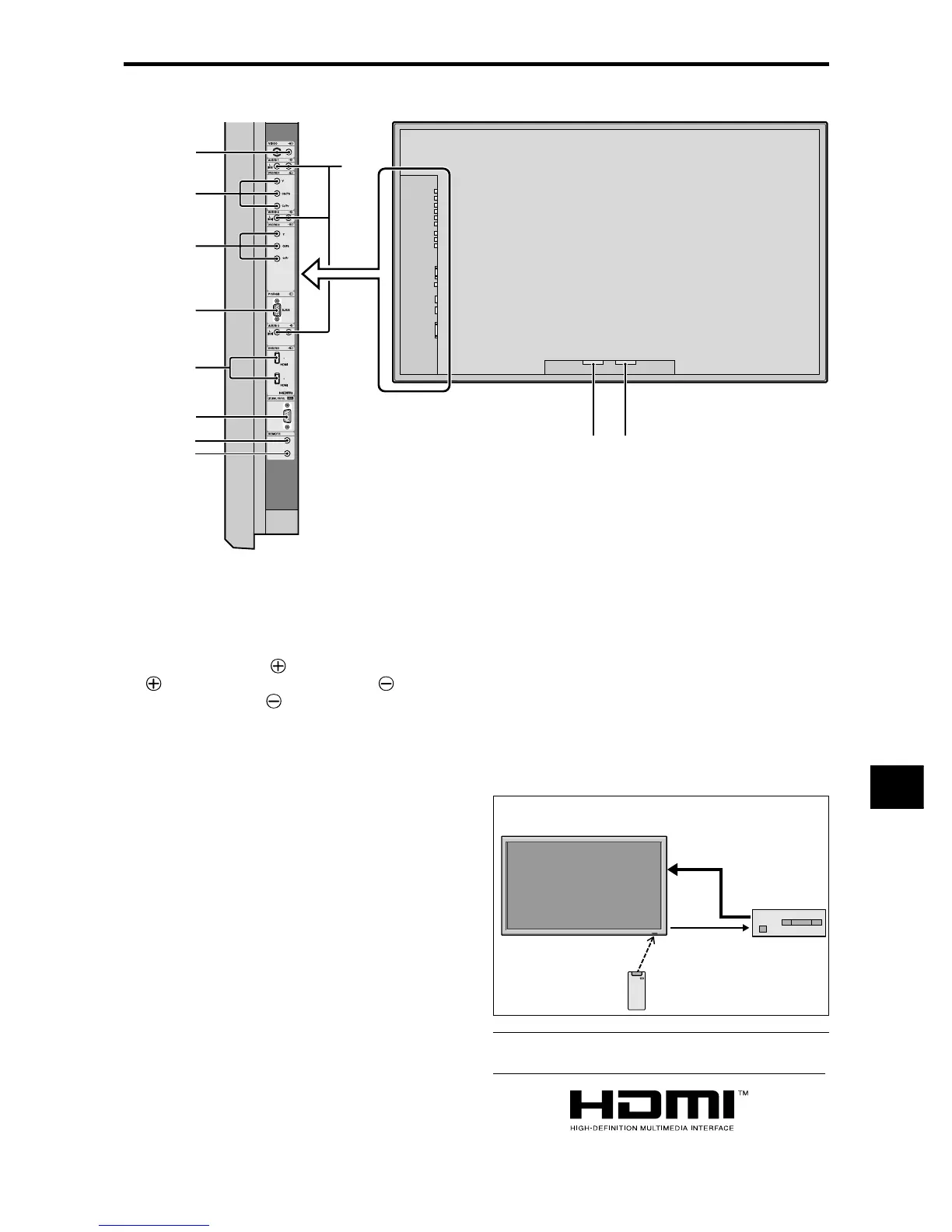

Rear View/ Terminal Board
50/61 inch
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
A AC IN
Connect the included power cord here.
B EXT SPEAKER L and R
Connect speakers (optional) here. Maintain the correct
polarity. Connect the
(positive) speaker wire to the
EXT SPEAKER terminal and the (negative)
speaker wire to the
EXT SPEAKER terminal on
both LEFT and RIGHT channels.
Please refer to your speaker’s owner’s manual.
C VIDEO1, 2 (RCA, S-Video)
Connect VCR’s, DVD’s or Video Cameras, etc. here.
D AUDIO1, AUDIO2, AUDIO3
These are audio input terminals.
The input is selectable. Set which video image
corresponds to the audio input from the audio menu
screen.
E DVD/HD1
Connect DVD’s, High Definition or Laser Discs, etc.
here.
F DVD/HD2
You can connect DVDs, High Definition sources, Laser
Discs, etc. here.
G PC/RGB (D-Sub)
Connect an analog RGB signal from a computer, etc.
here.
H DVD/HD3, DVD/HD4 (HDMI)
Connect a digital signal from a source with a HDMI
output. See “Specifications” on “Model Information”.
I EXTERNAL CONTROL (D-Sub)
This terminal is used when operating and controlling
the monitor externally with a control system (by RS-
232C).
J REMOTE IN* (DC +5V)
K REMOTE OUT* (C-MOS DC +5V)
Use these terminals to control external equipment.
* The 1/8 Stereo Mini cable must be purchased separately.
PLASMA DISPLAY
VIDEO
IN
VIDEO
OUT
REMOTE
OUT
TV Tuner
REMOTE
IN
TV Tuner
Remote Control
Carrier fHz: 38kHz
Connection Example: Connecting a TV tuner
To Next Page
