QX-S5500 Series Ethernet Switches
4
Starting and Configuring the Switch
On Windows 7, Windows Vista, or another operating system, obtain a third-party
terminal control program first, and then follow the user guide or online help to log in to
the device.
2) Set terminal parameters (take the HyperTerminal of Windows XP as an example) as
follows:
Bits per second: 9,600
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
Emulation: VT100
The specific procedure is as follows:
3) Select Start > Programs > Accessories > Communications > HyperTerminal to enter
the HyperTerminal window, and then click
to establish a new connection. The
connection description interface appears, as shown below.

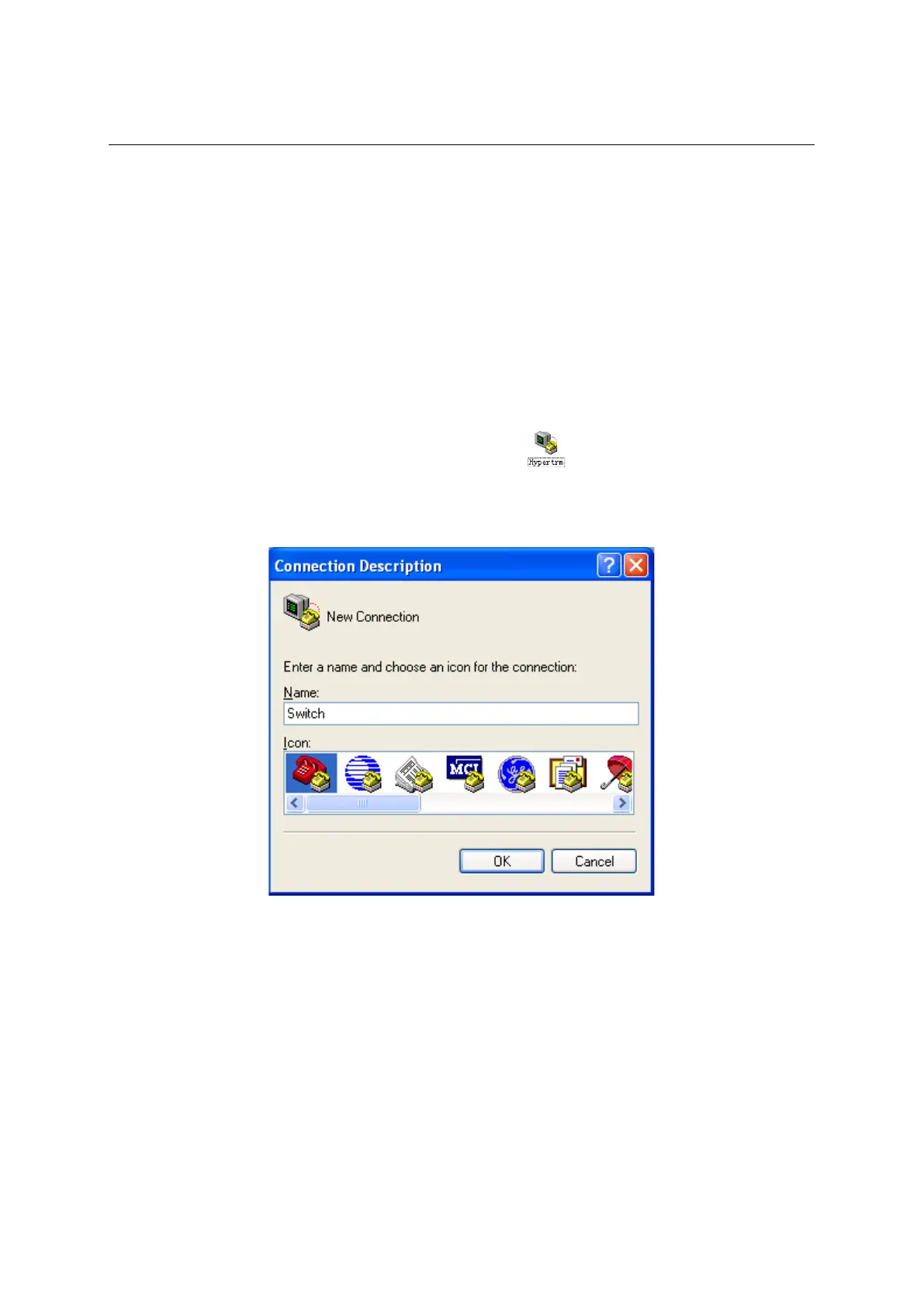

Figure 4-2 Connection description of HyperTerminal
4) Type the name of the new connection in the connection description interface and click
OK. The following interface pops up. Select the serial port to be used from the Connect
using drop-down list.
4-2
