128

8. Appendix

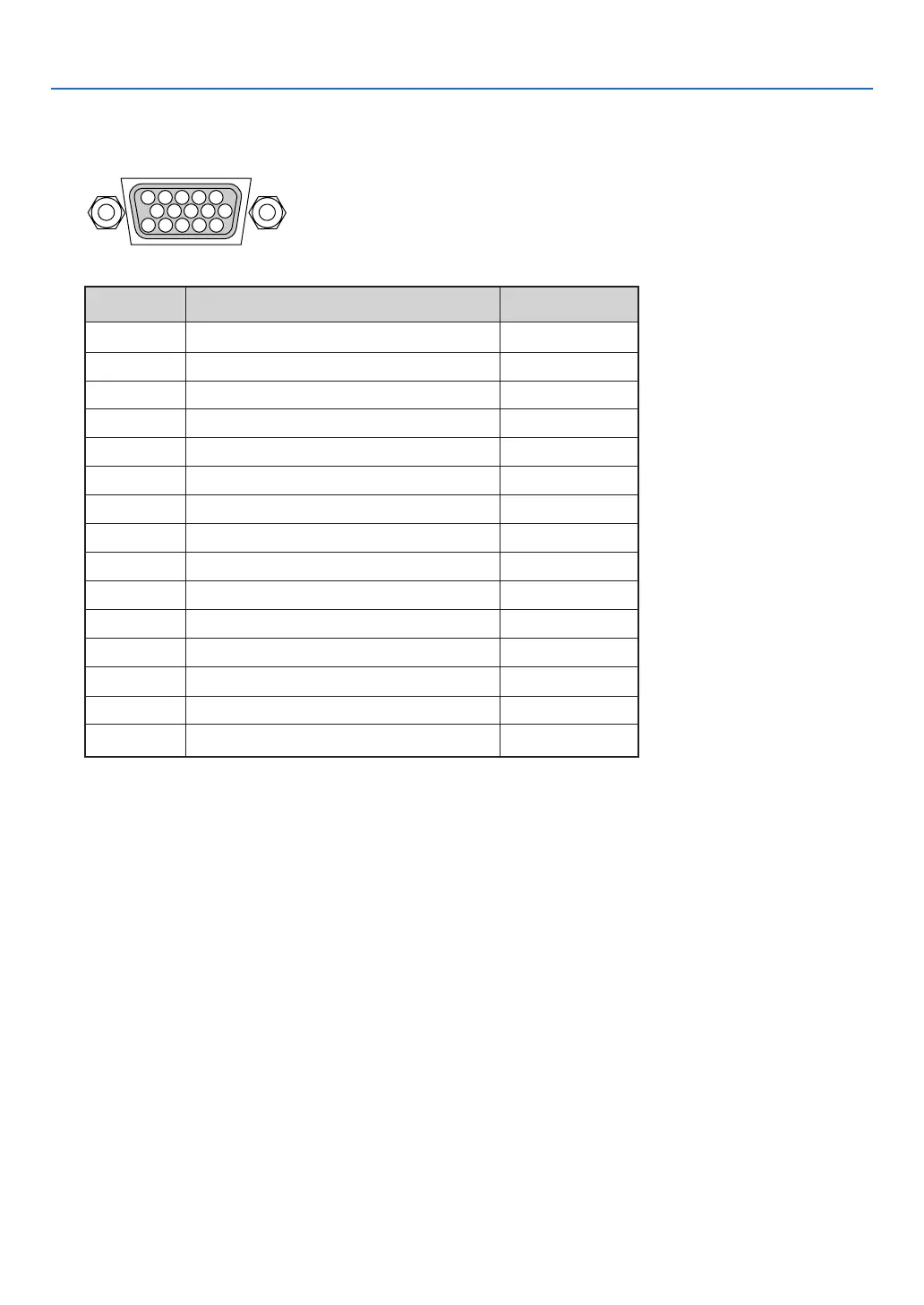

Mini D-Sub 15 Pin Connector

❺

Pin Assignments of D-Sub COMPUTER1/2 Input Connector

Signal Level

Video signal : 0.7Vp-p (Analog)

Sync signal : TTL level

1115 1214 13

54321

10 798

Pin No. RGB Signal (Analog) YCbCr Signal

1 Red Cr

2 Green or Sync on Green Y

3 Blue Cb

4 Ground

5 Ground

6 Red Ground Cr Ground

7 Green Ground Y Ground

8 Blue Ground Cb Ground

9 No Connection

10 Sync Signal Ground

11 No Connection

12 Bi-directional DATA (SDA)

13 Horizontal Sync or Composite Sync

14 Vertical Sync

15 Data Clock
