2. Installation and Connections
AUDIO IN
LR
AUDIO OUT
L R
Component
YCbCr
WIRELESS
WIRELESS
VIDEO IN
AUDIO IN
USB
LAN
AUDIO IN
HDMI IN
AUDIO IN
COMPUTER /
COMPONENT 2 IN
COMPUTER /
COMPONENT 1 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN
AUDIO IN
L/MONO
L/MONO
R
R
COMPUTER/COMPONENT 1 IN
COMPUTER/COMPONENT 2 IN
AUDIO IN
AUDIO IN

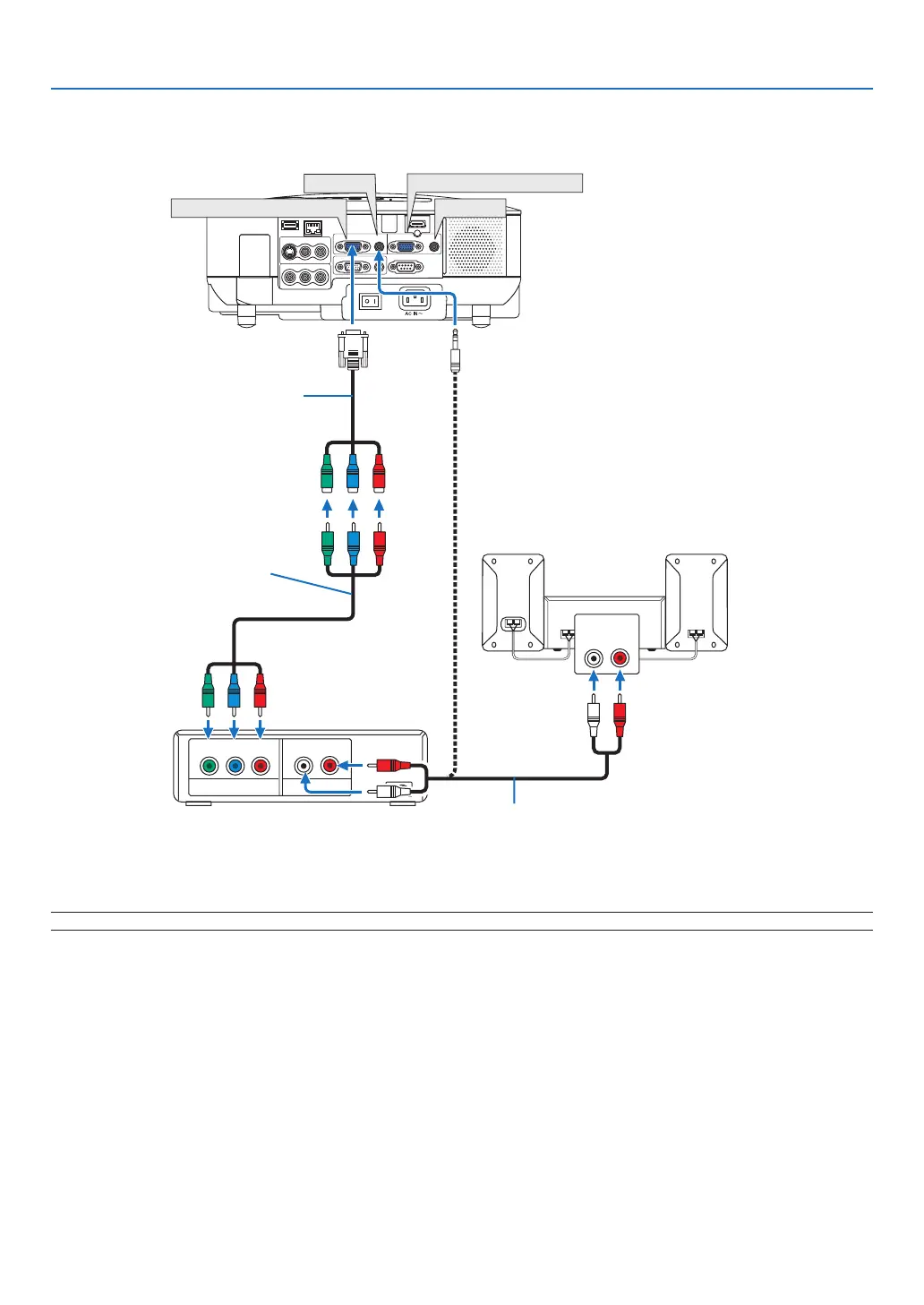

Connecting Your DVD Player with Component Output
DVD player
Audio Equipment
Audio cable (not supplied)
Component video RCAx3
cable (not supplied)
TIP: A component signal will be automatically displayed. If not, from the menu, select [SETUP] → [OPTIONS] → [SIGNAL SE-
LECT] → [COMPUTER1 (or 2)] → [COMPONENT].
NOTE: Refer to your DVD player’s owner’s manual for more information about your DVD player’s video output requirements.
Optional 15-pin - to - RCA (female) x 3
cable (ADP-CV1E)
