3. Projecting an Image (Basic Operation)
Use the adjustable tilt foot lever, the zoom lever or the focus ring to adjust the picture size and position.
❸
Adjusting the Picture Size and Position
NOTE*: See “
❹
Correcting Keystone Distortion” on page
26 for Keystone.
* In the above drawings, cables are omitted for clarity.

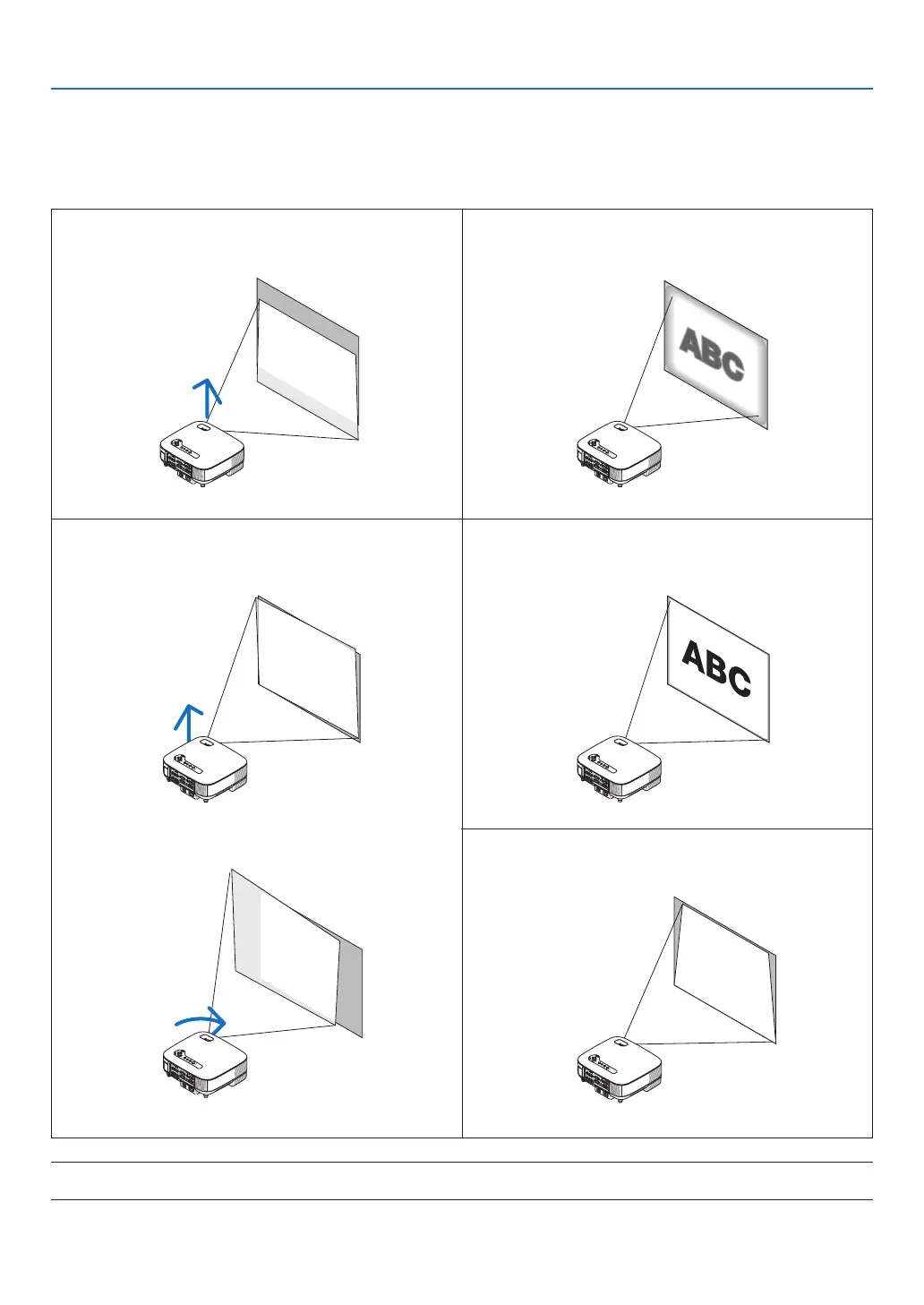

Adjusting the focus
[Focus ring]
Adjusting the throw angle (the height of an image)
[Tilt foot]
Finely adjusting the size of an image
[Zoom lever]
Adjusting the left and right tilt of an image
[Rear foot]
Adjusting the keystone correction
[Keystone] *
(→ page 25)
