2. Installation and Connections

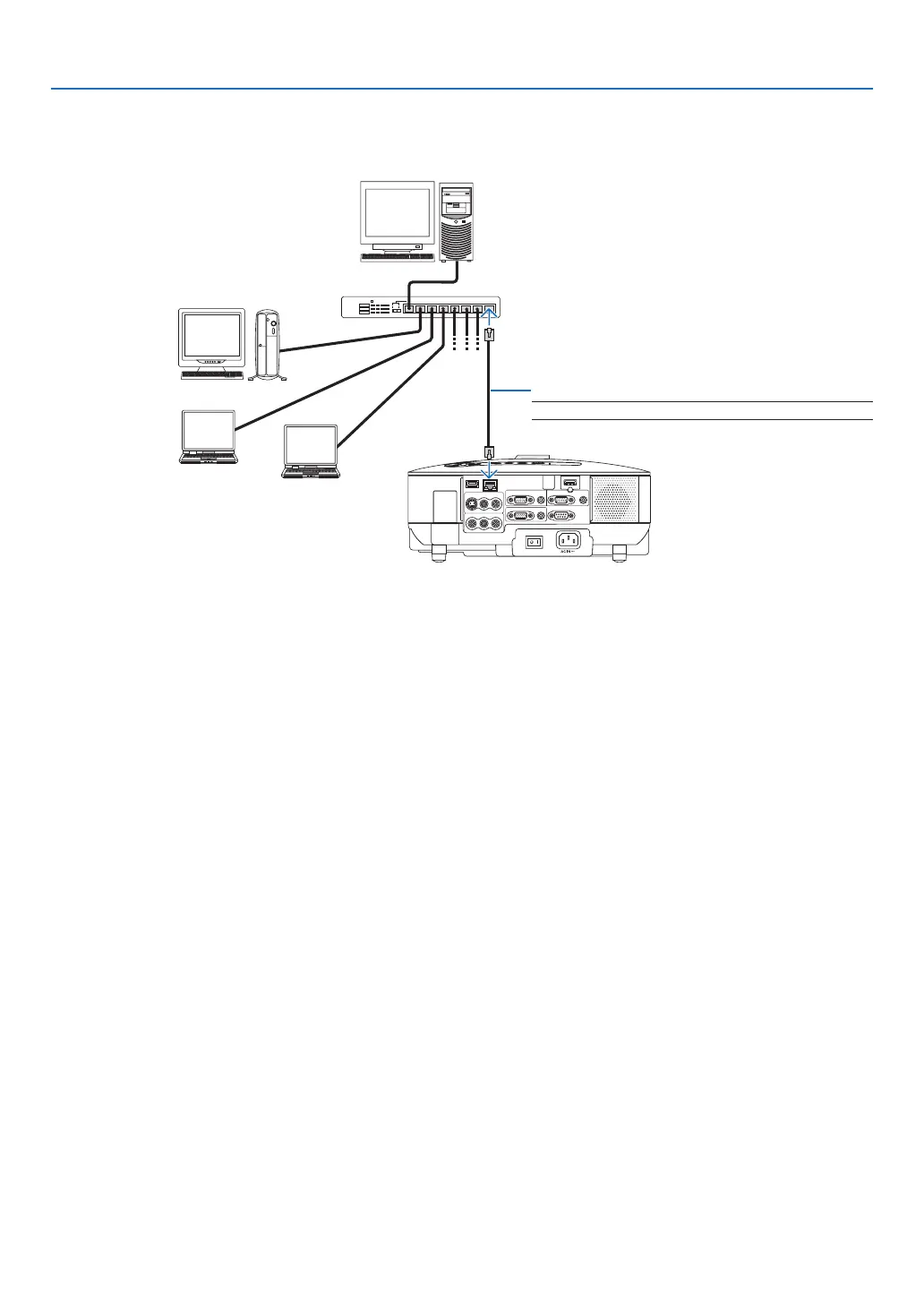

Example of LAN connection
Example of wired LAN connection
LAN
VIDEO IN
AUDIO IN
USB
LAN
AUDIO IN
HDMI IN
AUDIO IN
COMPUTER /
COMPONENT 2 IN
COMPUTER /
COMPONENT 1 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN
AUDIO IN
L/MONO
L/MONO
R
R
Server
Hub
LAN cable (not supplied)
NOTE: Use a Category 5 or higher LAN cable.
