Replacing the lower cutter
n
Attention
Turno󰀨themainpowerswitchandunplug
the machine.
The stationary lower cutter should be
changed when it becomes blunt. Change it
by following the below instructions. If you are
havinganydi󰀩culties,consultyourservice
agent to make the necessary adjustments.
- Turno󰀨theuppercutter.Openthefront
cover.
- Loosen the lower cutter set screw and
remove the stationary cutter.
- Place a new lower cutter in the groove of
the lower cutter holder. The blade of the
lowercuttershallbeushwiththestitch
plate.
- Tighten the lower cutter set screw.
- Turn the upper cutter on again.
- Turn the hand wheel so the needles are in
their lowest position.

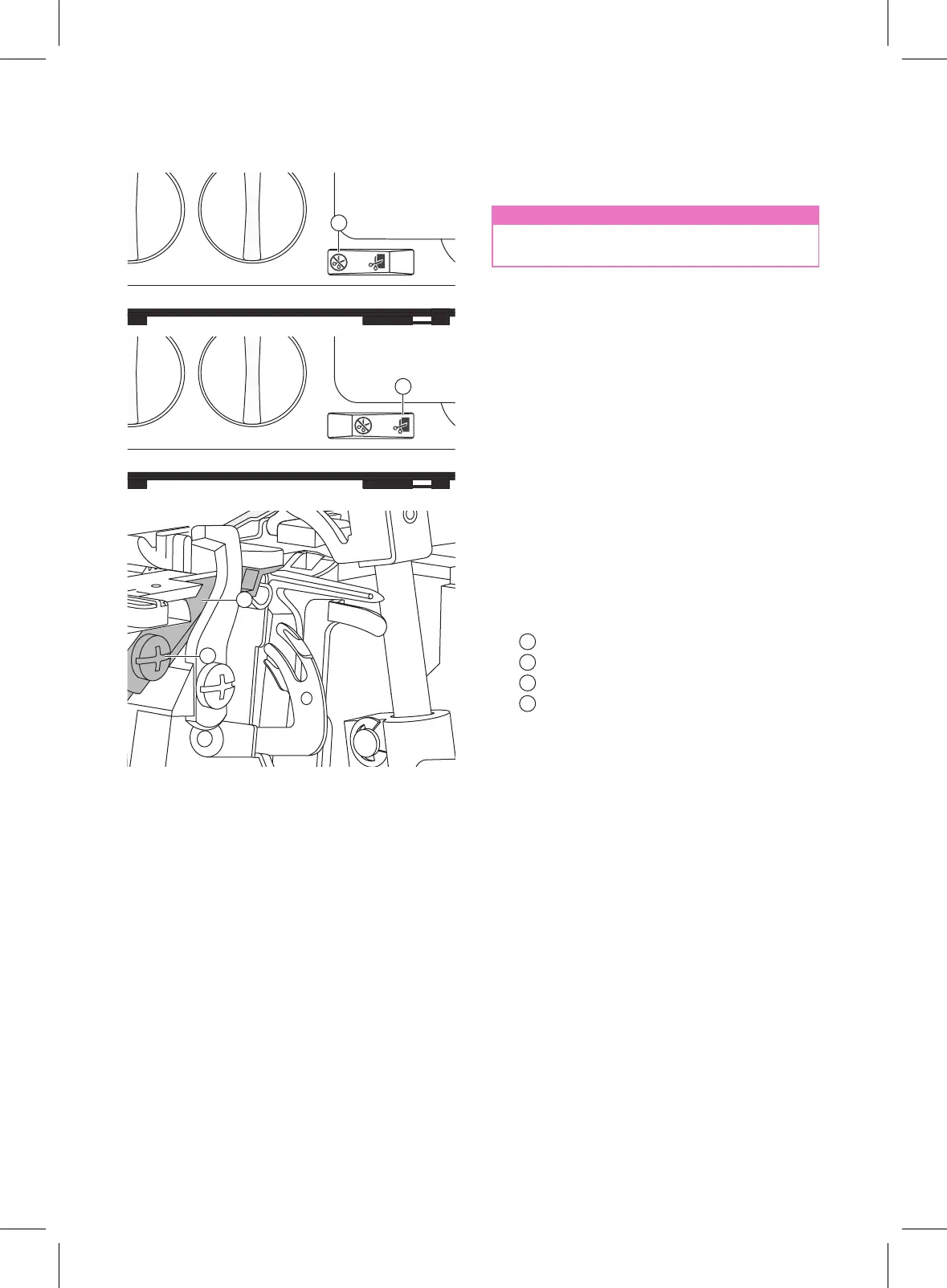

1
Non-cutting position
2
Cutting position
3
Lower cutter
4
Lower cutter set screw
1
2
4
3
