Necchi NL11C - Principal Parts of the Machine; Front And Side Of Machine

1
Principal parts of the machine
15
16
17
13
18
5
1
2
3
4
9 10 11 12
7
8
6
14
13
19
20
22 23 24
21
25
v

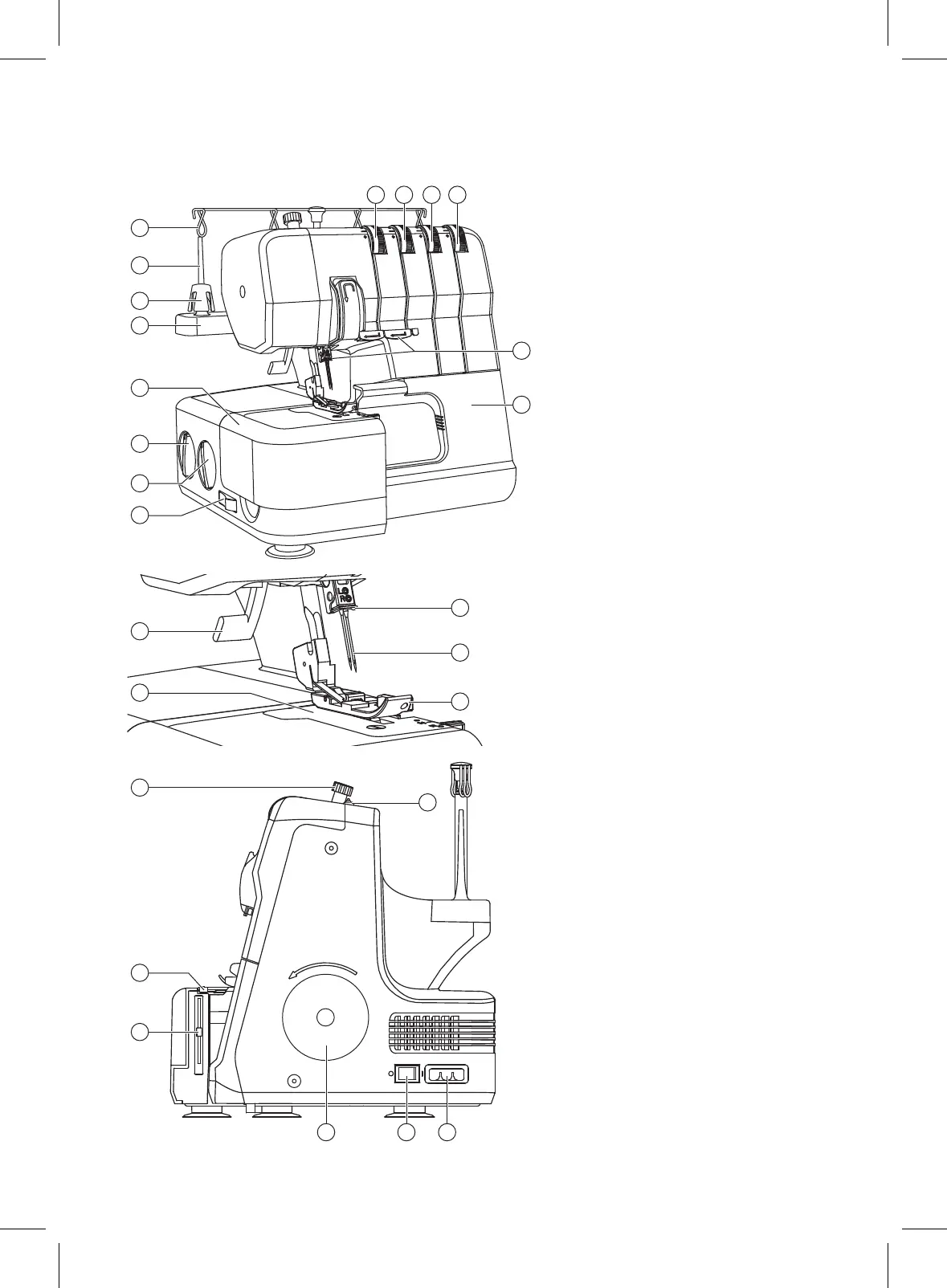

Front and side of machine
1. Telescopic thread stand
2. Spool pin
3. Cone holder
4. Spool stand
5. Flatbedextension
6. Di󰀨erentialfeeddial
7. Stitch length dial
8. Uppercutteron/o󰀨switch
9. Left needle thread tension dial
(purple)
10. Right needle thread tension dial
(green)
11. Upper looper thread tension dial
(red)
12. Lower looper thread tension dial
(yellow)
13. Thread guides
14. Frontcover(accessorystorage
available, Page 4)
15. Presser foot lifter
16. Needle plate
17. Needles
18. Presser foot
19. Presser foot pressure adjustment
knob
20. Stitchngerlever
21. Cutting width lever
22. Hand wheel
23. Power switch
24. Main plug socket
25. Thread guides
