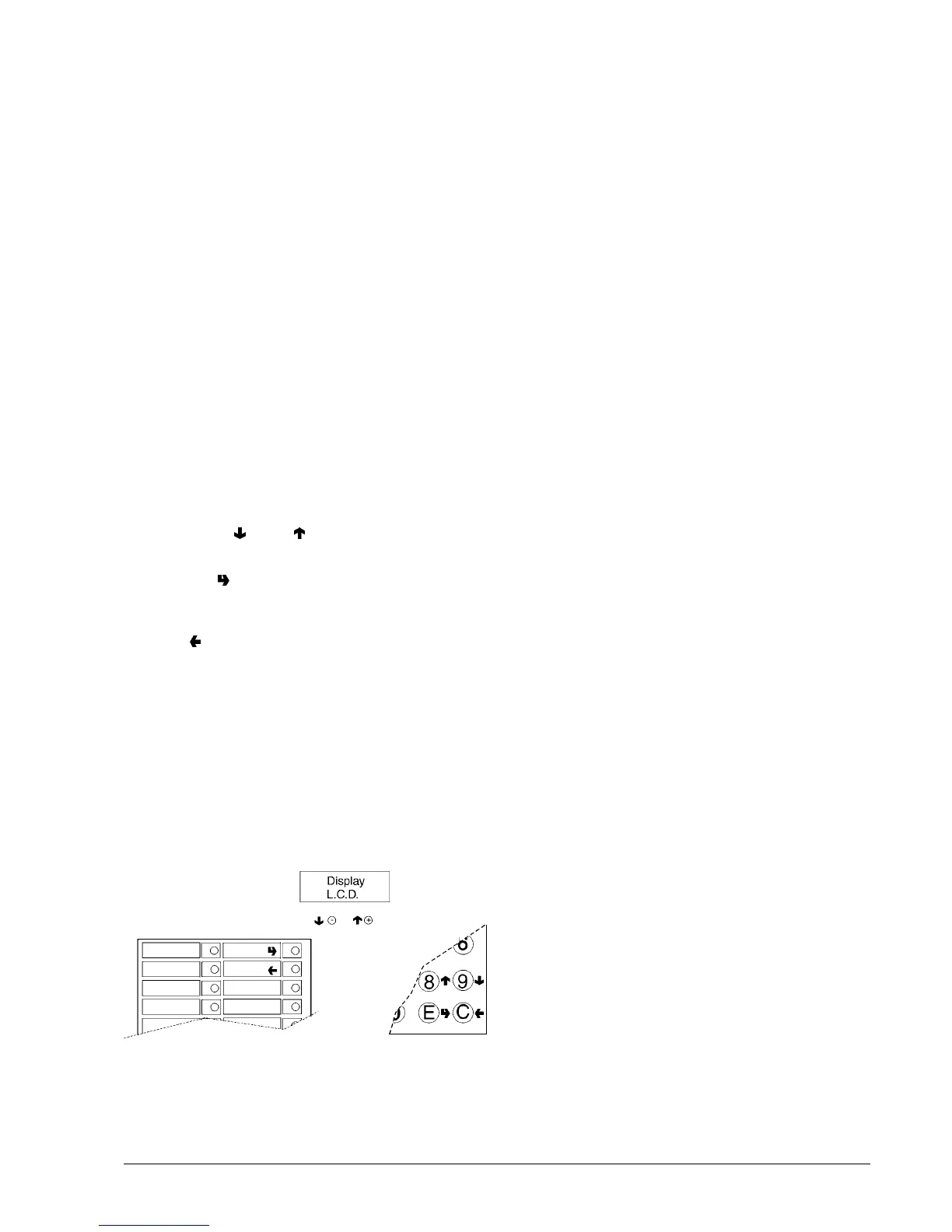

Fig. 21
OPERATING MODES
Three different operating modes are provided for the ma-
chine; the buttons will have different functions according to
the machine operating mode.
The available operating modes are as follows:
FUNCTIONS
Normal mode coins accepted
products dispensed
Filler menu test dispensing
machine maintenance
Technician menu programming
different parameters
USER INTERFACE
The interaction between system and user occurs through
the following components:
- Liquid crystal display (LCD) 4 lines of 20 characters.
- Pulsantiera esterna a selezione diretta o, in alternativa,
con i tasti numerici che, in modalità "Caricatore" e
"Tecnico", assumono le seguenti funzioni (vedi fig. 21):
Scrolling keys “ ” and “ ” :
To move to the next or previous menu option.
Confirm key “ ”:
To go from a menu to a sub-menu, or to confirm the
information on the display.
Exit key “ ”:
To move back from a sub-menu to the higher level menu,
or used to cancel the current information on the display.
It is also used to go from “technician menu” mode to “filler
menu” mode and vice versa.
NORMAL OPERATING MODE
When switching the machine on, the message “Starting” is
displayed for a few seconds, after which the machine goes
into normal operating mode.
The displayed massages indicating the operation being
carried out are fixed, while the instructions requiring an
action from the user are blinking; the messages include the
following:
DISPLAY FUNCTION
Select drink Machine ready
Press key
Vending machine Machine out
out of service of service
Selected drink Processing the proc-
essed drink
Wait please
Drink ready Dispensing ended
Take drink correctly
FILLER MENU
When pressing once the programming button located on the
coin mechanism compartment, the machine goes into
“Filler menu” mode.
The first option of the “filler” menu is displayed, allowing the
following functions:
“Statistics” Data reading
“Prices” Changing the price for one
selection
“Tube control” Manual refilling and release
of change-giver tubes
“Boiler temperature" Displaying the boiler
temperature in degree C.
“Test” Complete selection
Dispensing water only
Dispensing powder only
Dispensing without accessories
Dispensing accessories only
