30
0210 206-00

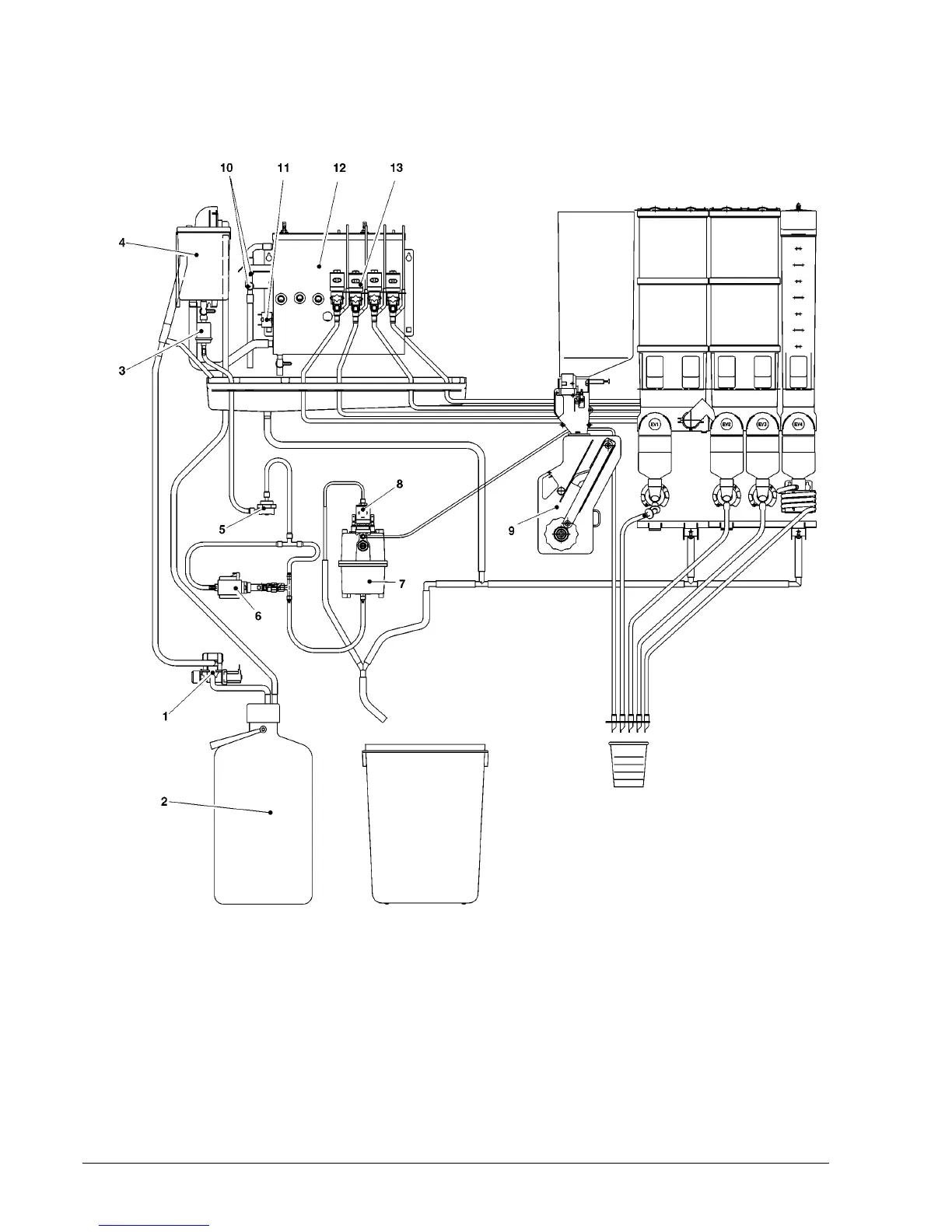

HYDRAULIC SYSTEM FOR ESPRESSO
1 - Water inlet solenoid valve
2 - Water softener (if provided)
3 - Mechanical filter
4 - Air-break
5 - Volumetric counter
6 - Vibration pump
7 - Coffee boiler
8 - Coffee dispensing solenoid valve
9 - Coffee unit
10 - Anti-boiling thermostats
11 - Safety thermostat
12 - Instant boiler
13 - Instant prod. solenoid valves
33
35
Table of Contents
Default Chapter
5
Default Chapter
5
Table of Contents
5
Introduction
6
Identification of the Vending Machine
6
In Case of Failure
6
Transport and Storage
6
Positioning the Vending Machine
7
Precautions in Using the Machine
7
Technical Specifications
7
Power Consumption
8
Variable Combination Lock
9
Accessories
9
Loading and Cleaning
10
Door Switch
10
Maintenance and Disinfection
10
Using the Vending Machines
10
Warning for Installation
7
Warning for Scrapping
7
Controls and Information
10
Loading Cups
11
Loading Coffee
11
Loading Sugar and Instant Products
11
Sanitising the Foodstuff Circuits and the Mixers
11
Cleaning the Sugar Dispenser
12
Weekly Cleaning of the Coffee Unit
12
Regenerating the Softener Unit
13
Suspending from Use
13
Installation
14
Door Switch
14
Unpacking the Vending Machine
14
Inserting the Product Labels
14
Connecting the Machine to the Water Mains
15
Connecting to the Power Supply
15
Installing the Payment System
16
Cleaning the Softener Resins
16
Filling the Water System
16
Coffee Unit Operation
17
Coffee Dispensing Cycle
17
Checking and Adjusting the Machine Settings
17
Standard Settings
18
Adjusting the Brewing Chamber Volume
18
Adjusting the Grinder
18
Adjusting the Coffee Dose
18
Adjusting the Water Temperature
18
Operating Modes
19
User Interface
19
Normal Operating Mode
19
Filler Menu
19
Statistics
20
Print
20
Display
20
Delete Statistics
20
Selection Prices
20
Change Tube Control
20
Displaying the Temperature
20
Test Dispensing
20
Gsm Pre-Alarms
20
Technician Menu
21
Failures
22
Programming Parameters
22
Cash
22
Selections
24
Vending Machine Parameters
25
Display
25
Preselections
25
Miscellaneous
26
Statistics
26
General Counter
26
Display
26
Reset
26
Displaying Counters
26
Print
26
Test
26
Special Functions
26
Miscellaneous
27
Machine Information
27
Initialising
27
Maintenance
28
Introduction
28
Brewing Unit Maintenance
28
Cleaning the Cup Dispenser
29
Annual Sanitising
29
Printed Board Functions and Indicator Lights
30
Actuation Board
30
Relay Board
31
Boiler Control Board
31
Cpu Board
31
Configuring the Electronic Boards
32
Software Update
32
Programmer
33
Automatic Setup Transfer
33
Transferred Data
33
Configuring the Language
33
Hydraulic Systems
34
Wiring Diagram
62
