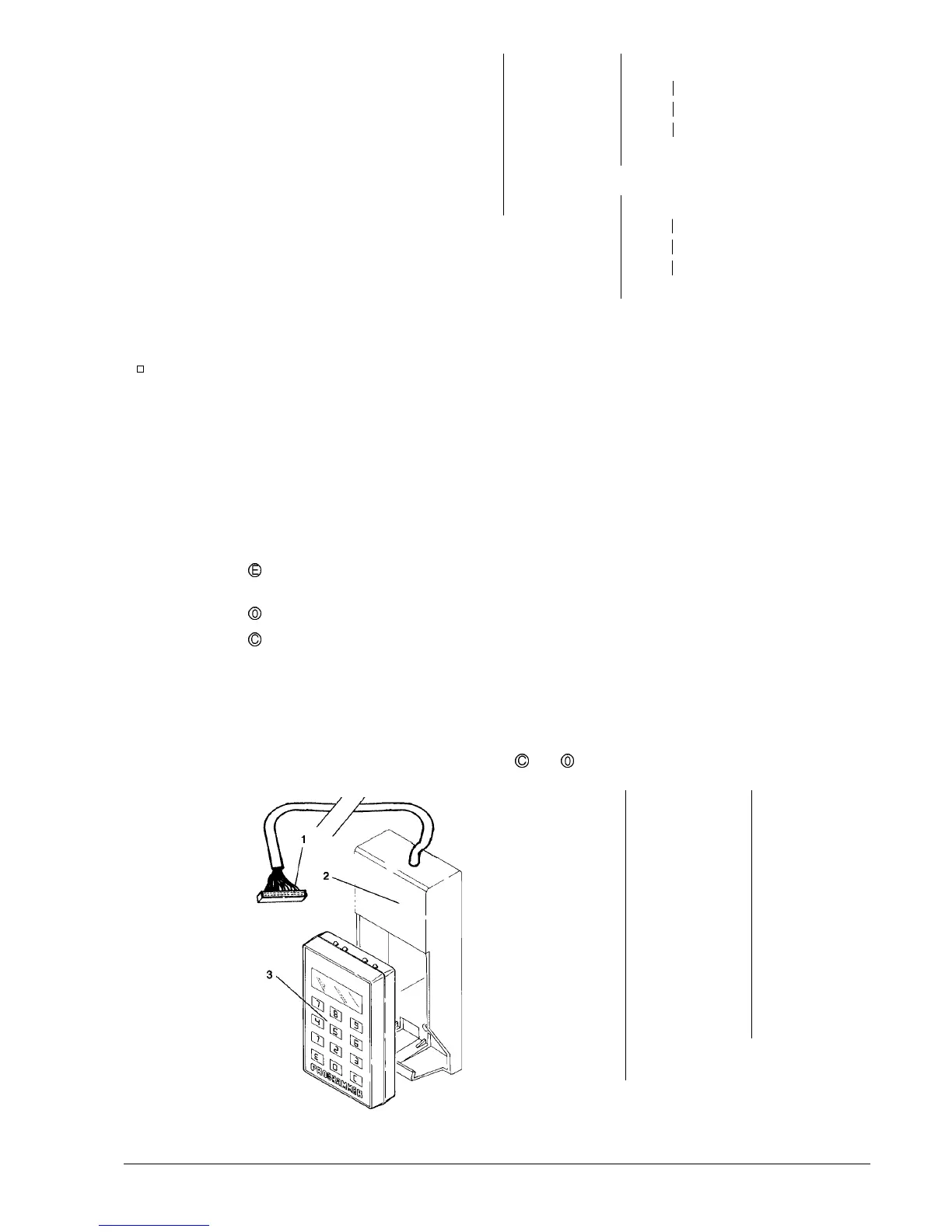

Fig. 30
1 - Connector
2 - Holder
3 - Programmer
PROGRAMMER (OPTIONAL)
AUTOMATIC SETUP TRANSFER
With the programmer device, the programming routines set
and transferred to other machines can be read from a
reference vending machine.
This data is preserved also when the programmer is
disconnected thanks to two Duracell batteries LR03 Format
AAA 1.5 V (to be replaced every 12 months).
The programmer allows up to twenty different programs
(setups) to be stored.
To differentiate among the 20 set-ups available those
containing data, a special character is displayed, and
namely:
< - > = Setup free
< > = Setup with data.
When creating the setup only those programs containing
data are available; if no setup contains data, the message
“no data available” will appear on the programmer display.
To connect the programmer to the machine the special
holder is to be used (see Fig. 30) connecting the special
cable to the connector of the C.P.U. board (see Fig. 29).
Then enter the “programming” mode.
At this point, inserting the programmer in its holder, connec-
tion will take place automatically, and the setup menu will
be shown on the programmer dsisplay:
- press key to access the displayed
function;
- press key to display the next function;
- press key to display the previous function.
PROGRAMMER SETUP READING SETUP 01 <X>
SETUP READING SETUP 01 <X> Confirm?
SETUP READING
SETUP 20 <X>
PROGRAMMER CREATE SETUP SETUP 01 <X>
CREATE SETUP SETUP 01 <X> Confirm?
CREATE SETUP
SETUP 20 <X>
TRANSFERRED DATA
The programming data which are transferred are as follows:
· Price table
· Prices/selection status
· Decimal point position
· Discount data
. Time bands
. Refrigeration parameters
CONFIGURING THE LANGUAGE
It is possible to change the programmer configuration
regarding the language in which the messages are to be
displayed as well as to reset all of the data therein
contained.
To activate the “Programmer configuration” mode do as
follows:
- insert the programmer in its holder and start the machine.
- wait about 10 seconds and then press programmer keys
and the first function will be displayed:
CONFIGURATION CONFIGURATION CONFIGURATION
LANGUAGE ITALIAN Confirm?
CONFIGURATION
FRENCH
CONFIGURATION
GERMAN
CONFIGURATION
ENGLISH
CONFIGURATION
SPANISH
CONFIGURATION INITIALISING
INITIALISING Confirm?
CONFIGURATION
CONFIG. END Exit from the configuration menu
The software restarts from address 0000
(as when starting the machine)
