29EN Operating instructions
3 Description PRIMUS 2 H2N/H2N+
3.1 General product description
The PRIMUS 2 H2N/H2N+ lasers are fully-automatic dual slope rotating laser
for horizontal use. With the PRIMUS 2 H2N+ the tilt is also monitored (see
8.3)! The innovative shock protection system and the robust, water and dust-
proof housing protects the high power laser under virtually all indoor and out-
door operating conditions.
3.2 Specifications
Fully-automatic rotating laser PRIMUS 2 H2N/H2N+
Self-levelling range ±5°, motorised with automatic monitoring
Levelling accuracy better than ±0,05mm/m
Adjustable tilt (X/Y axis) ±10 %
Accuracy of the slope function
H2N better than ±0,1%
H2N+ better than ±0,015 %
Laser model < 5 mW, Laser class 3R, 635 nm
Operating voltage 6 V
Operation duration approx. 100 h with rechargeable batteries /
approx. 120 h with Batteries
Weight 4,0 kg
Dimensions (width/depth/height) 210×208×200 mm
Working temperature range –20 °C to +50 °C
Charging temperature –5 °C to +40 °C (recommended: +10 °C to +20 °C)
Working range with COMMANDER 2
H2N/H2N+
700 m diameter
Rotational speed 600 rpm / optionally 900 rpm
Class of protection IP 66
Working range of remote control 150m (In optimum conditions: direct line-of-sight
contact between PRIMUS 2 and
COMMANDER 2)
3.3 Scope of Delivery
The COMMANDER 2 H2N/H2N+, the ACCEPTOR digital and a telescopic
sight are available as optional accessories.

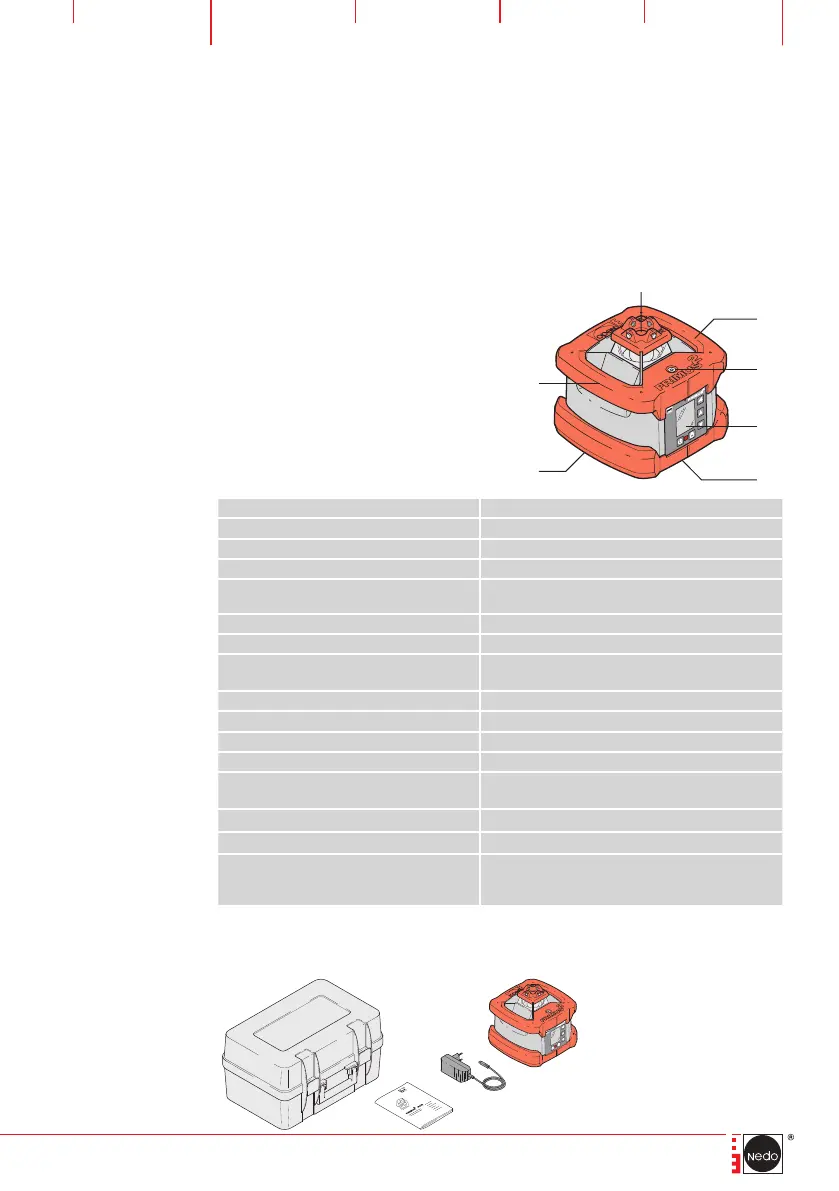

1 Rotating laser
2 Handle, rubberised
3 Spirit level
4 Control panel with buttons and display
5 5/8" threaded bushing (bottom)
6 Rechargeable battery compartment
7 Handle, rubberised
1 PRIMUS 2 H2N/H2N+
rotating laser
2 Charger
3 Operating Instructions
4 Transportation case
2
3
5
7
4
6
1
1
2
4
3
