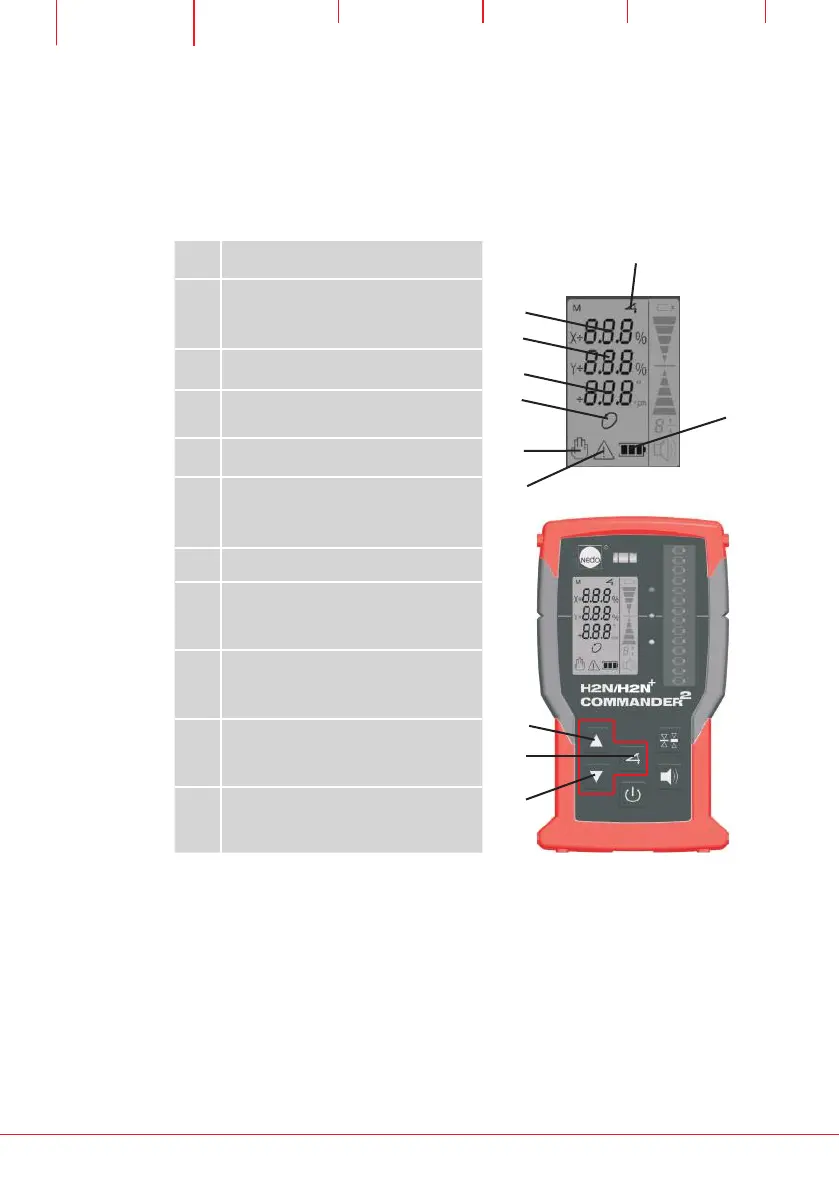

11 Remote control COMMANDER 2 H2N/H2N+
2
1
Controls on COMMANDER 2 H2N/H2N+ have the same function as on
PRIMUS 2 H2N/H2N+ - they are described in detail in chapters 7 and 8.
1 Reduce X/Y tilt value
2
Activate TILT axes / Confirm
percentage value input
3 Increase X/Y tilt value
4 Warning symbol (flashes)
5 MANUAL operating mode
6
ROTATION mode (flashes during
automatic levelling)
7 Speed of the laser (600 rpm)
8
TILT Y-axis display as percentage
values
9
TILT X-axis display as percentage
values
10
TILT function (symbol flashes
during input)
11
Rechargeable battery/battery
state of the laser
11.1 Displays and controls of the remote control
