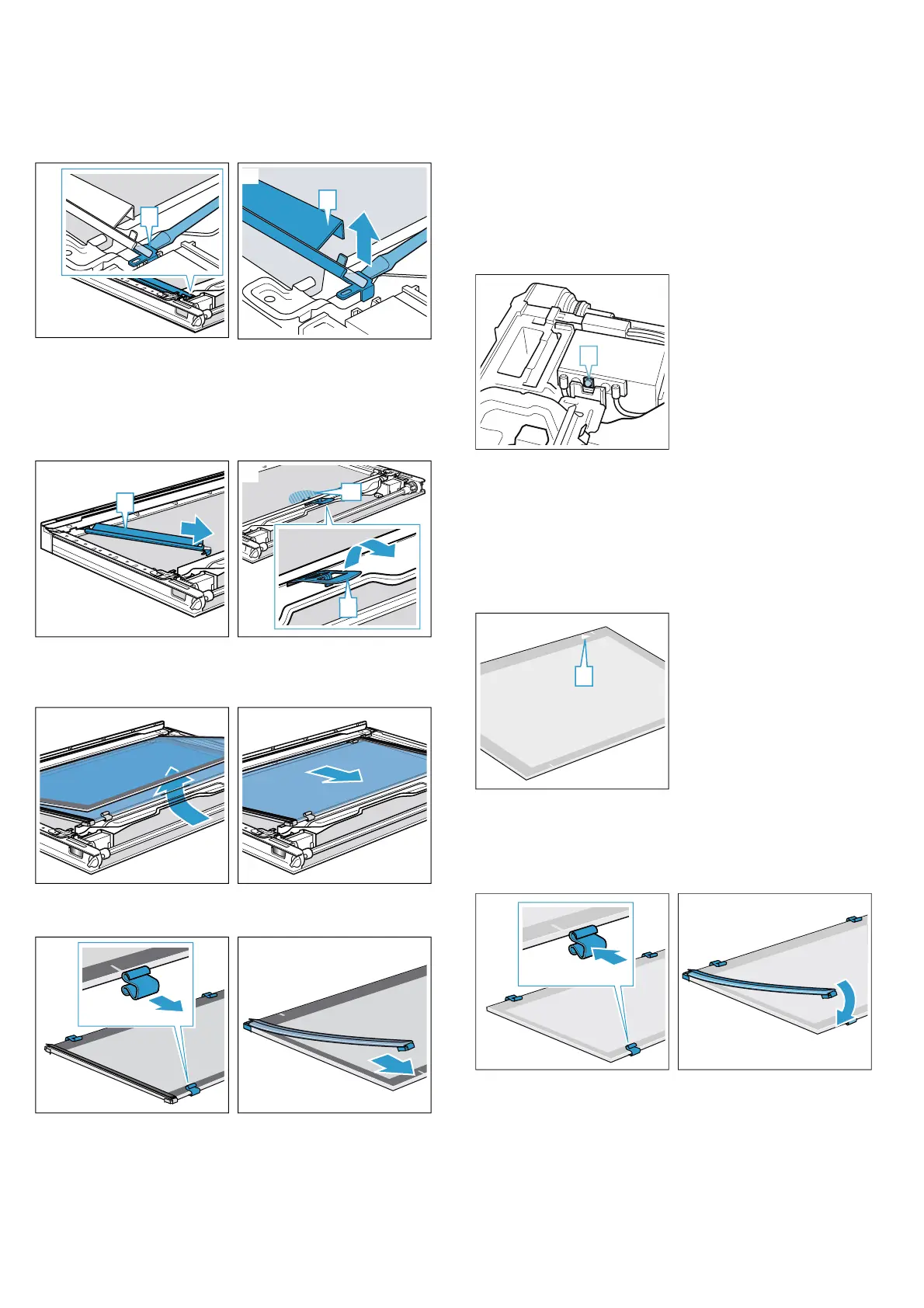

5. Slide the tip of the screwdriver in between the metal
tab ‚ and the plastic underneath it (fig. #).
6. Use the tip of the screwdriver to carefully lift the
reflector ƒ until it is detached (fig. $).
7. Lift the reflector ƒ up and out (fig. %).
8. Remove the second reflector in the same way as the
first.
9. Push down on the intermediate panel around „, and
carefully lift the holder … until you are able to pull it
out (fig.
&).
10. Lift the first and second intermediate panels from
below (fig. ') and remove them in the direction of
the arrow (fig. ().
11. Remove the spacers (fig. )) and seals (fig. *) for
cleaning if needed.
12. Clean the glass door panels and reflectors on both
sides with glass cleaner and a soft cloth.
:Warning
Risk of injury!
Scratched glass in the appliance door may develop
into a crack. Do not use glass scrapers, sharp or
abrasive cleaning aids or aggressive or abrasive
cleaning products.
Caution!
Make sure you do not damage the lighting. Do not
clean or touch either of the LEDs ‚.The two LEDs
are on the right and left in the appliance door.
13. Dry the door panels and refit them.
Fitting
Note: When fitting the door panels, make sure that they
are in the original order.
1. Insert the intermediate panel so that the ‚ arrow on
the right-hand side is pointing upwards (Fig. !).
2. Check the fit of the four spacers and two seals on
the intermediate panel:
– Position the spacers so that each of the lines
runs through the centre (Fig. ").
– Attach the seals at the corners (Fig. #).
