5. Remove the inner panel.
6. Remove the middle panel.
Note: The middle panel is kept in place with rubber
bushings rather than retaining pins.
Clean the panels with glass cleaner and a soft cloth.
:Warning – Risk of injury!
Scratched glass in the appliance door may develop into
a crack. Do not use a glass scraper, sharp or abrasive
cleaning aids or detergents.
Fitting the door panels
1. Reinsert the middle panel.
Notes
– If the Low-E symbol can be read, the middle
panel is inserted correctly.
– Make sure that the panel is seated correctly. All
rubber mounts must lay flat against the outer
panel.
2. Reinsert the inner panel.
Note: All four fastening pins must engage in the
holders provided for them.
3. Remove the locking pins and close the oven door.
Removing and fitting the appliance door
If the oven is very heavily soiled, the oven door can be
removed for easier cleaning. Normally, however, this is
not necessary.
Removing the appliance door
1. Open the oven door fully.
2. Lock the two hinges on the left and right using the
locking pin (a).
Note: The locking pins must be fully inserted into the
holes in the hinges.
3. Take hold of the sides of the oven door with both
hands and close the oven door by approx. 30° (b).
4. Lift the oven door slightly and pull it out.
Note: Do not close the oven door fully,otherwise the
hinges could become bent and the enamel could be
damaged.
Fitting the appliance door
1. Take hold of the sides of the oven door with both
hands.
2. Slide the hinges into the slots in the oven (a).
Note: The notch at the bottom of the hinges must
engage into the frame of the oven (b).
3. Lower the door.
4. Remove the locking pins.
:Warning – Risk of injury!
If the oven door falls out accidentally or a hinge snaps
shut, do not reach into the hinge. Call the after-sales
service.
:Warning – Risk of injury!
The door may not close properly if the door hinges have
not engaged correctly. This will allow heat to escape
and the parts of the appliance may become very hot. To
prevent this from happening, remove the door again.

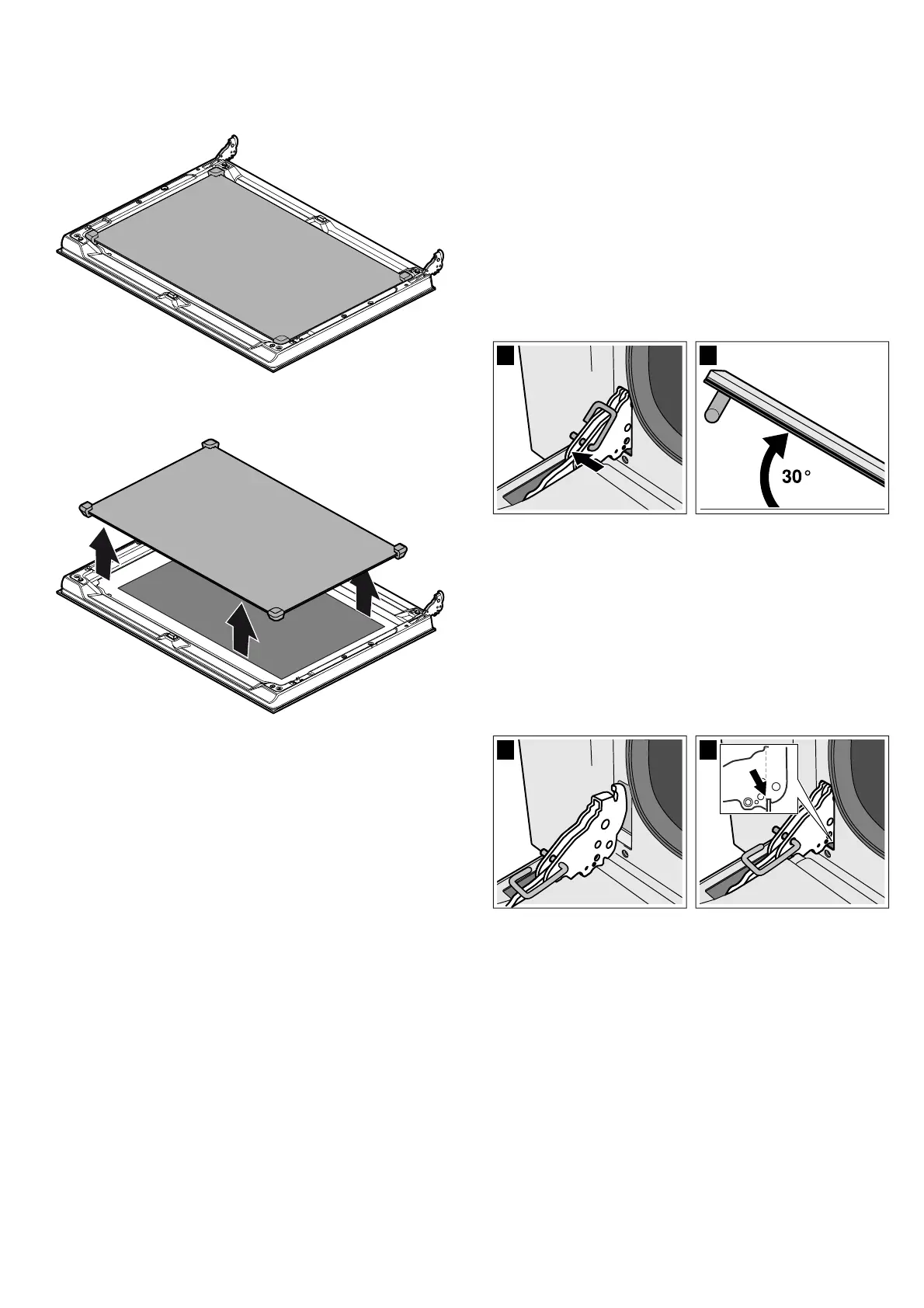

Then refit the door as shown in the drawing, making
sure that the groove on the underside of the hinges
engages in the oven frame.
