INSTALLATION INSTRUCTIONS
For models 8354, 8356, 8359, 8362 (see figure 2)
Remove the transformer cover by loosening the two screws. Route AC wires
to connector provided. Cut and trim wires to install in chassis mount
connector. Tighten the screws. (For Australia an extra clamp has been
provided.) Observe proper polarity of wires as you install them (ie. L1, L2 and
ground). The transformer is now wired. Replace the transformer cover and the
two screws. DO NOT turn on power yet.
NOTE: Failure to ground unit properly may cause severe damage to the
controller and/or personal property and will void warranty.

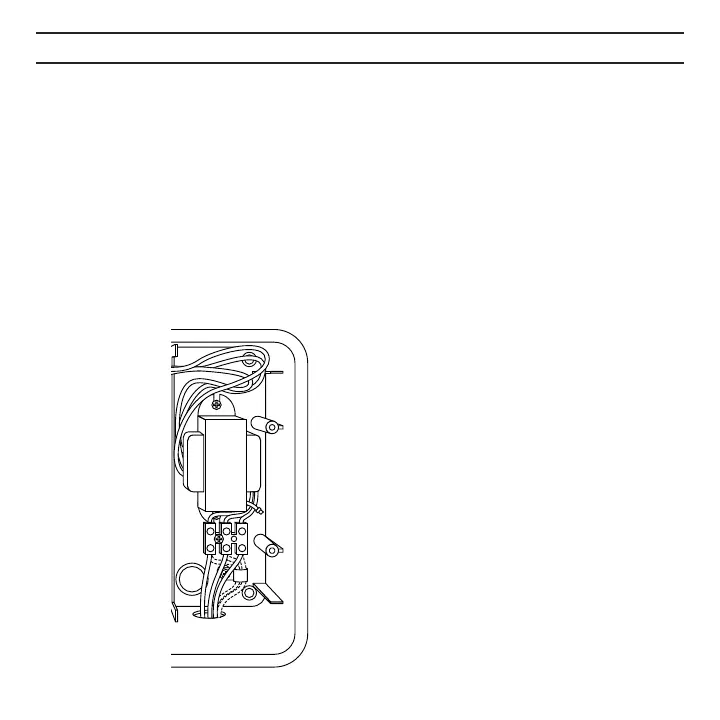

Figure 2
