STEP 3 - Inter-connect Micro inverters into branch
Each BDM-600 comes with two AC output cable with oppositely sexed connectors at the end. Plug the AC connector of the
each BDM-600 into the connector of neighbored micro inverter to form a continuous AC branch circuit. Please check the
rating label of the trunk cable for the maximum allowable number of BDM-600 on one AC branch circuit.
DO NOT EXCEED THE MAXIMUM NUMBER OF BDM-600 IN AN AC BRANCH CIRCUIT, AS DISPLAYED ON THE UNIT-
RATING LABEL. For 12AWG trunk cable, EACH BDM-600 AC BRANCH CIRCUIT MUST BE SOURCED FROM A
DEDICATED BRANCH CIRCUIT PROTECTED BY A 20A MAXIMUM BREAKER.
Install a protective end cap on the open AC connector at the end of the branch.
NEP micro inverters are designed to be able to inter-connect with other NEP models.
MAKE SURE PROTECTIVE END CAPS HAVE BEEN INSTALLED ON ALL UNUSED AC CONNECTORS. UNUSED AC BDM-
600 WIRE HARNESS CONNECTORS ARE LIVE WHEN THE SYSTEM IS ENERGIZED BY THE UTILITY SYSTEM.

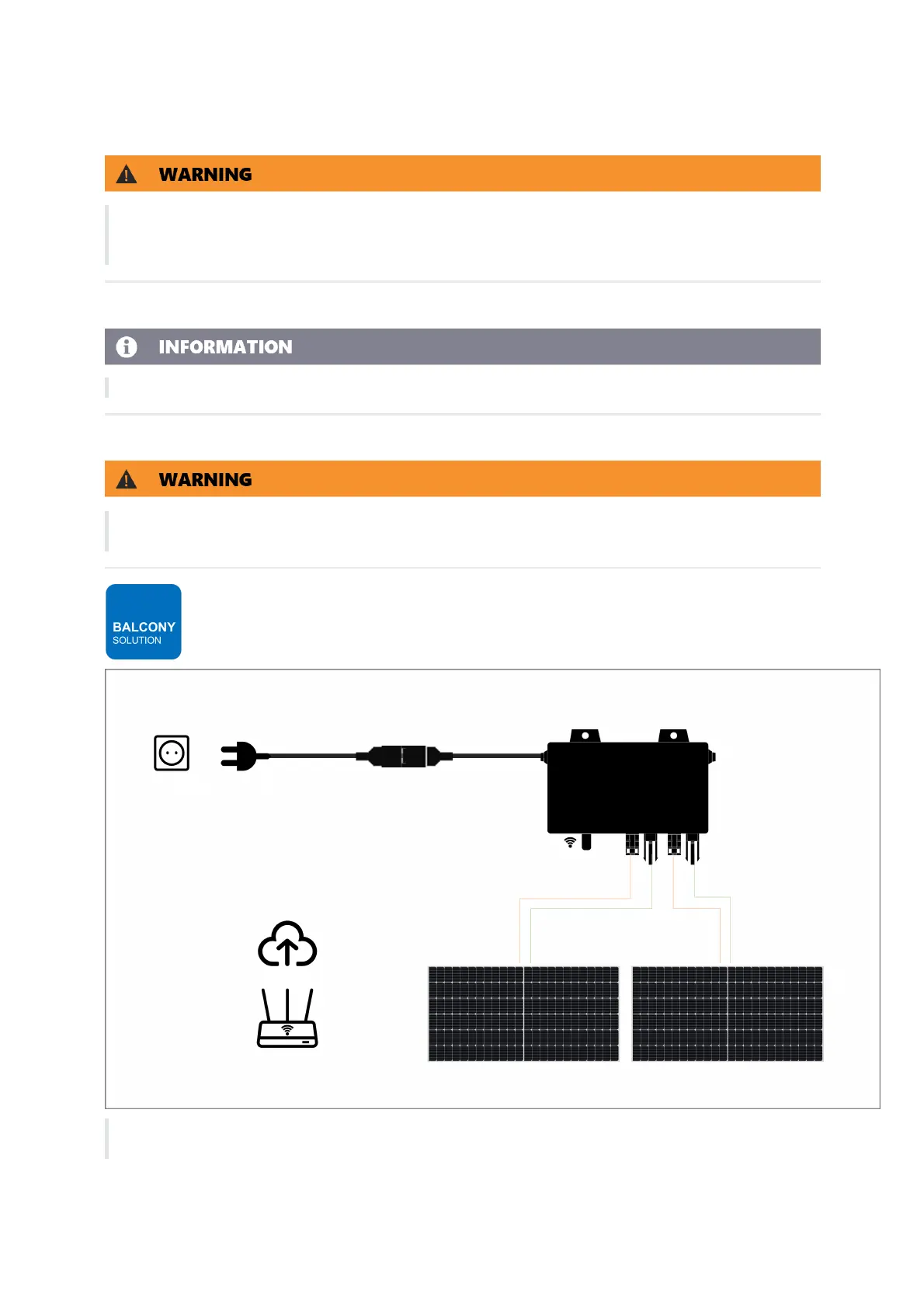

Typical Balcony Solution Topology
For balcony solution, there is only one inverter in the system. The monitoring is realized by WIFI connection between
WiFi dongle on the inverter and home router.
