MAIN COMPONENTS

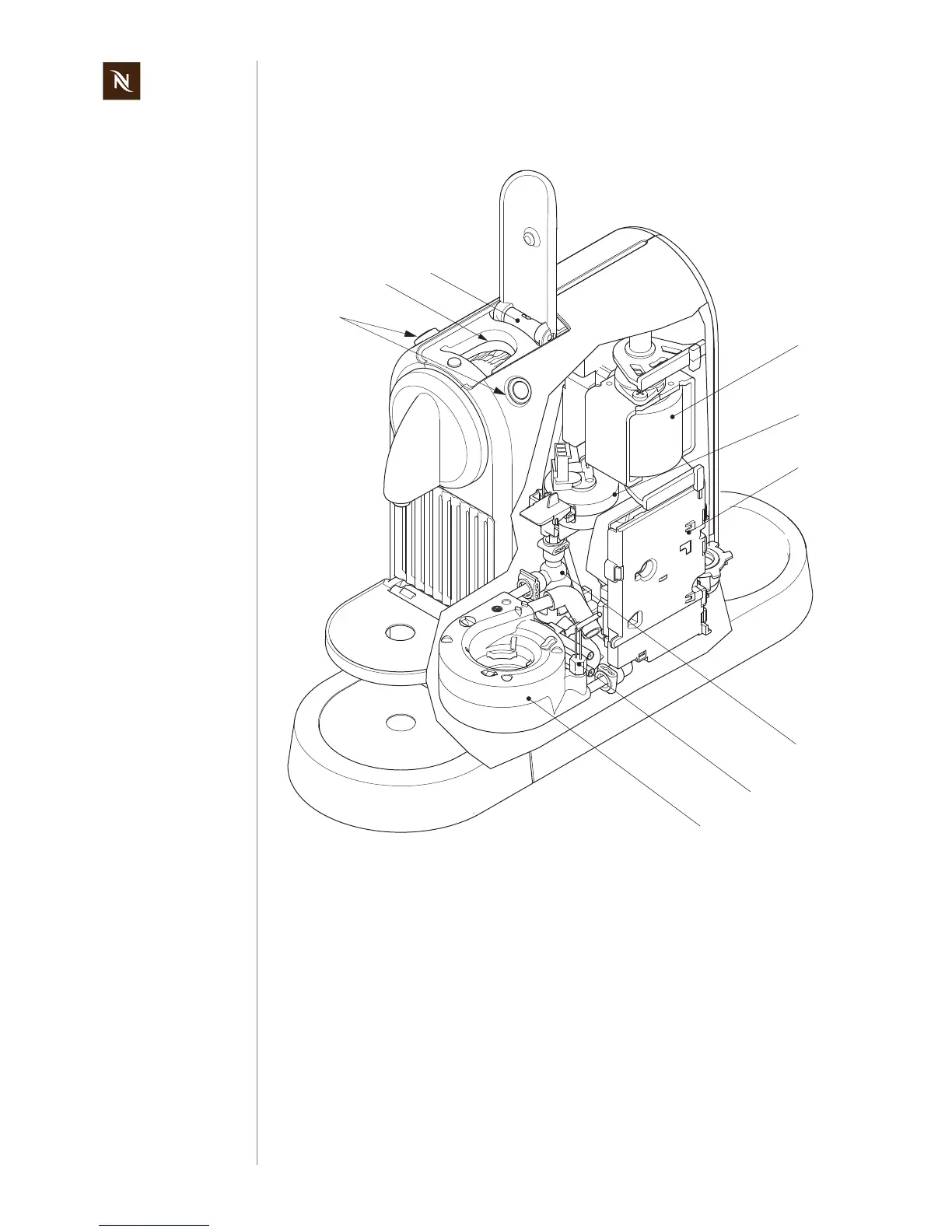

3.1.1 Interior view - core unit, D-range
1) Button prints
2) Capsule bay
3) Brewing unit (TMBU, Tolkien Mini
Brewing Unit)
4) Pump (Sysko)
5) Flowmeter (FHKSC12)
6) Electronic control board
(with protective covers)
7) Self priming device (APD)
8) NTC temperature sensor
9) Thermoblock (EF 2003)
1
2
6
4
5
3
9
7
8
