Nespresso EF 451 C 111 - Overview - Core Unit, C-range

Citiz service manual
11
MAIN COMPONENTS

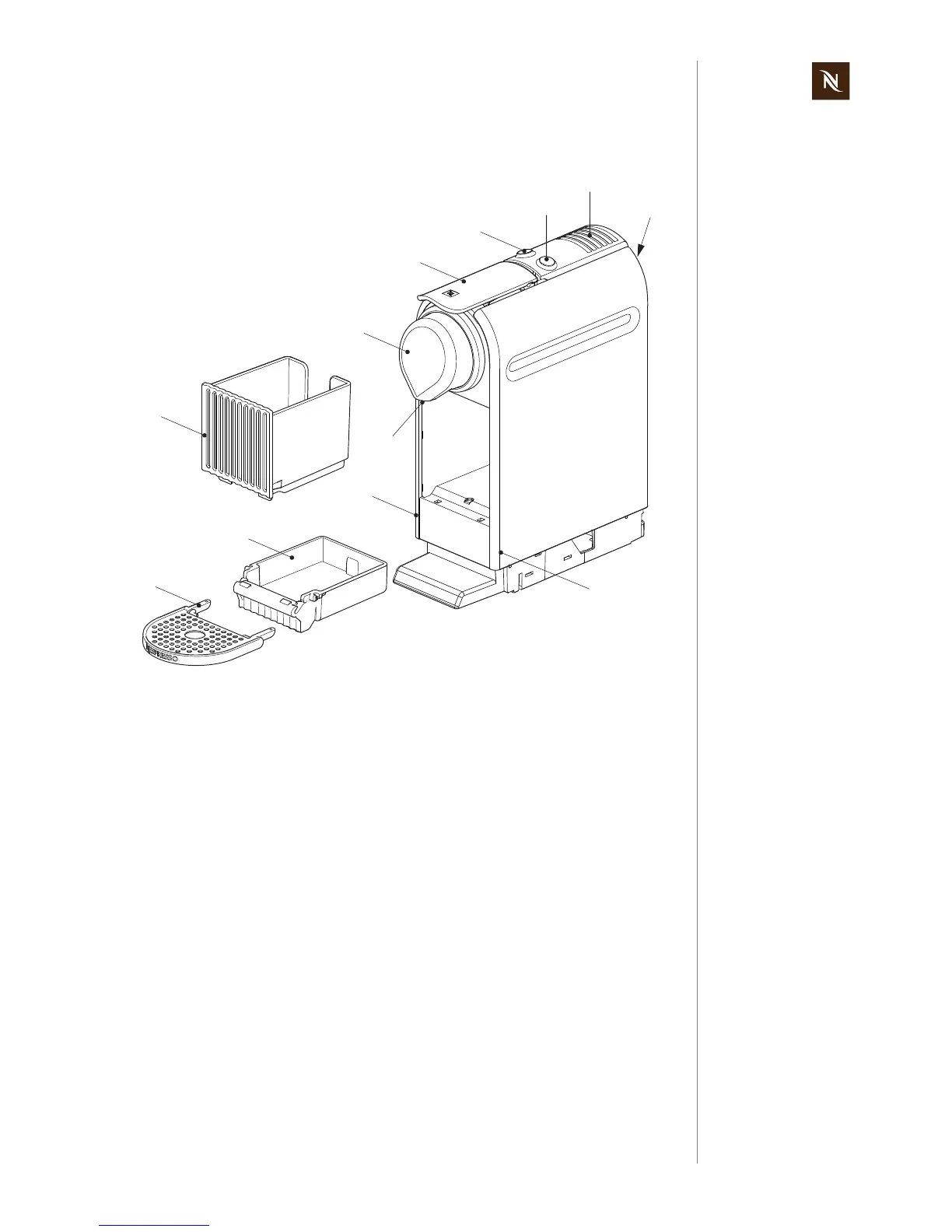

3.2 Overview - core unit, C-range
1) Cup support
2) Waste water container
3) Capsule container (used capsules)
4) Side panel, left
5) Side panel, right
6) Coffee nozzle
7) Steam cover
8) Closing handle
9) Espresso button
10) Lungo button
11) Top cover
12) Rear cover
