Nespresso Lattissima+ F416BL User Manual

11
Release 00 - 07.2011

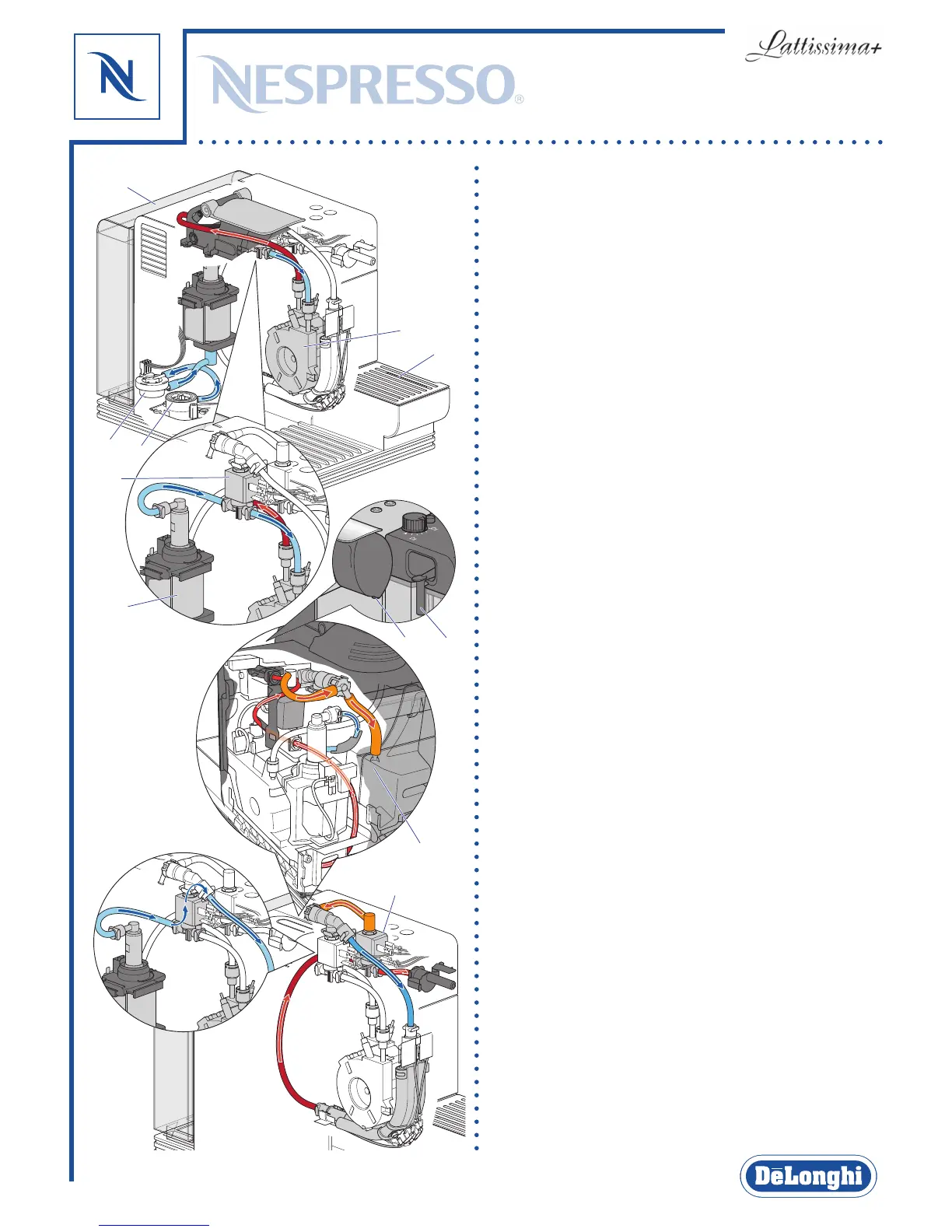

1.4. Circuito acqua
Circuito acqua per caffè
1 Serbatoio acqua
2 Valvola serbatoio acqua
3 Flussometro
4 Pompa
5 Caldaia
6 Erogatore caffè
7 Tubo vapore
8 Elettrovalvole
9 Raccolta condensa
10 Gocciolatoio
Generalità
1.4. Water circuit
Water circuit coffee
1 Water tank
2 Water tank valve
3 Flowmeter
4 Pump
5 Thermoblock
6 Coffee outlet
7 Steam pipe
8 Solenoid valve
9 Condensation chamber
10 Drip tray
Generality
2
3
1
4
8
10
5
9
8
6
7
