8. SHAPE
Shape-Generator(SHAPE) is greatly convenient in controling track & effect of fixtures, such as
Circle, Rainbow, Wave etc. SHAPE can also combine different shapes of multiple fixtures to show
various dynamic effects which can’t be easily achieved by Multi-Step Program. Take the SHAPE of
circle for example, the operation of making circle is already finished by the console, just leave the
parameters such as speed, size and direction to be set, which is more effective.
In the console there are many Shape-Generators, each one can be set for different effects such as
Circle, Rainbow or Wave etc., and the parameters such as size, speed, direction and spread value etc.
Shapes can run together but up to 4 shapes can be superposed to 1 fixture at the same time.
8.1 Edit and call SHAPE
SHAPE can be called in Manual-Run, Single-Step Program, Multi-Step Program and Scene.
Call SHAPE in Scene:
Just need to record data of manual-run which uses SHAPE into Single-Step-Program or Scene.
When program or Scene runs, the corresponding SHAPE will run automatically.
Call SHAPE in Chase:
Just add SHAPE into the Program Step in editing Multi-Step Program, when the program runs, the
corresponding SHAPE will run automatically.
Example of calling SHAPE in Manual-Run, operation is as follow:
1） Select fixtures firstly, it’s suggested to use
LOCATE to light up, and then set Colour,
Dimmer and Pan/Tilt location;
(the Pan/Tilt location is at the center of SHAPE)
2） Press PLAY key, the indicator will flash, which
means now it is in SHAPE menu.

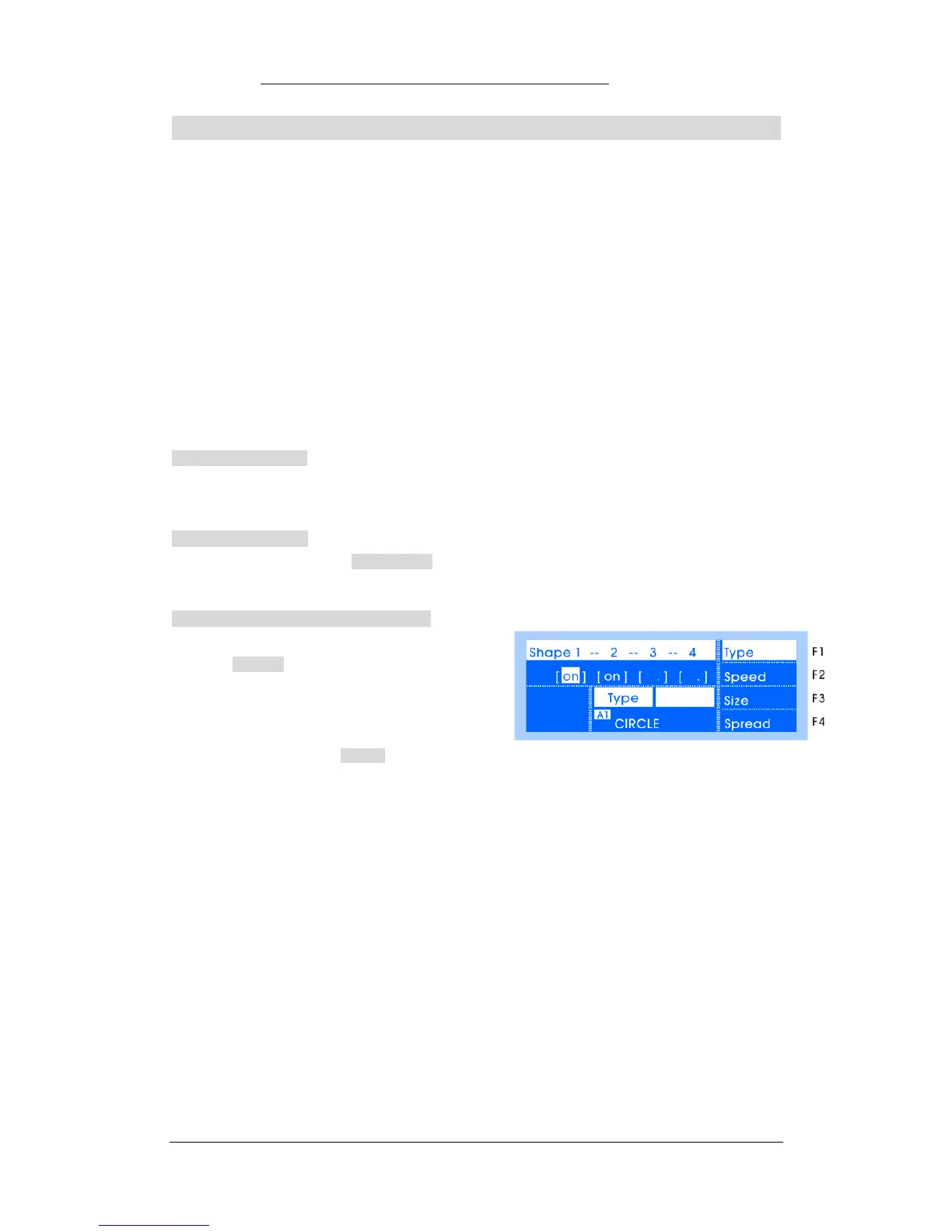

3） Press Edit... soft key to enter edit status, as shown on the right:
4） Select shape No. by   Key. (totally 4 Numbers, 4 Shapes can be surperposed in 1 fixture)
5） Open shape by  Key. (close by  Key)
6） Select Shape:
Press Type soft key, select shape by A/B Wheel.
7） Set Speed / Direction:
Press Speed soft key, set running speed and direction by A/B Wheel.
8） Set Size / Distortion:
Press Size soft key, set shape size by A/B Wheel (for example: the size of circle), and the
shape distortion (for example: distort circle to be ellipse).
9） Set Spread:
Press Spread soft key, set spread amount by A/B Wheel to make the location of fixtures
different in a shape.
For example: create wave effect in shape of Tilt. Make circling fixtures to be in different
locations and move one after one. (The higher the spread amount is, the bigger the offset will
be, and v.v.)
