NET Corsight CO1041C2 - Dimensions; Mounting Points

22/50
Please note that all data and illustrations are subject to error, change and omissionswithout notice. CORSI GH T
Operational Manual - rev. 2.0_10_2016

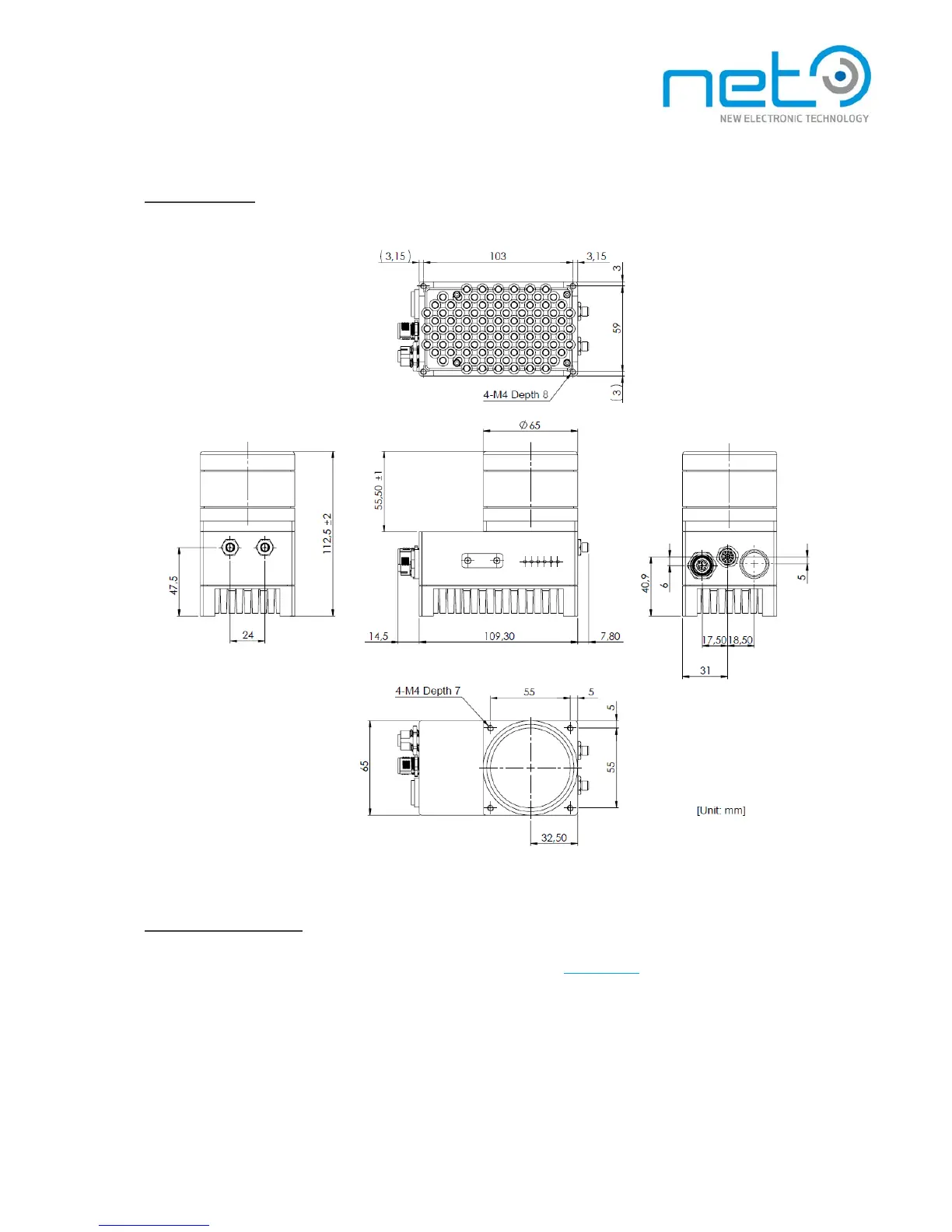

Dimensions
Mounting points
The mounting points' position and size is illustrated in se ct io n , “ Dimensions
” .
The following mounting points are available:
- F o u r M 4 × 10 points in front panel of the camera (the side of the lens mount).
- F o u r M 4 × 1 0 points in back panel of the camera.
