CORSIGHT CO4206M2
Specification
CORSIGHT CO4206M2
PC technology
Embedded PC with Intel Atom E3845 1.91GHz, 4GB DDR3/1333MHz, 16GB built-i n S A T A -
SSD flashdisk, µSD card slot, Gigabit Ethernet interface, USB2 interface, DP++ output, 2×
WLAN/Bluetooth antenna connector, LUT for image manipulation, MPEG-4/H264
encoder/decoder
Sensor
1/1.8" CMOS, parallel readout, type e2v EV76C570

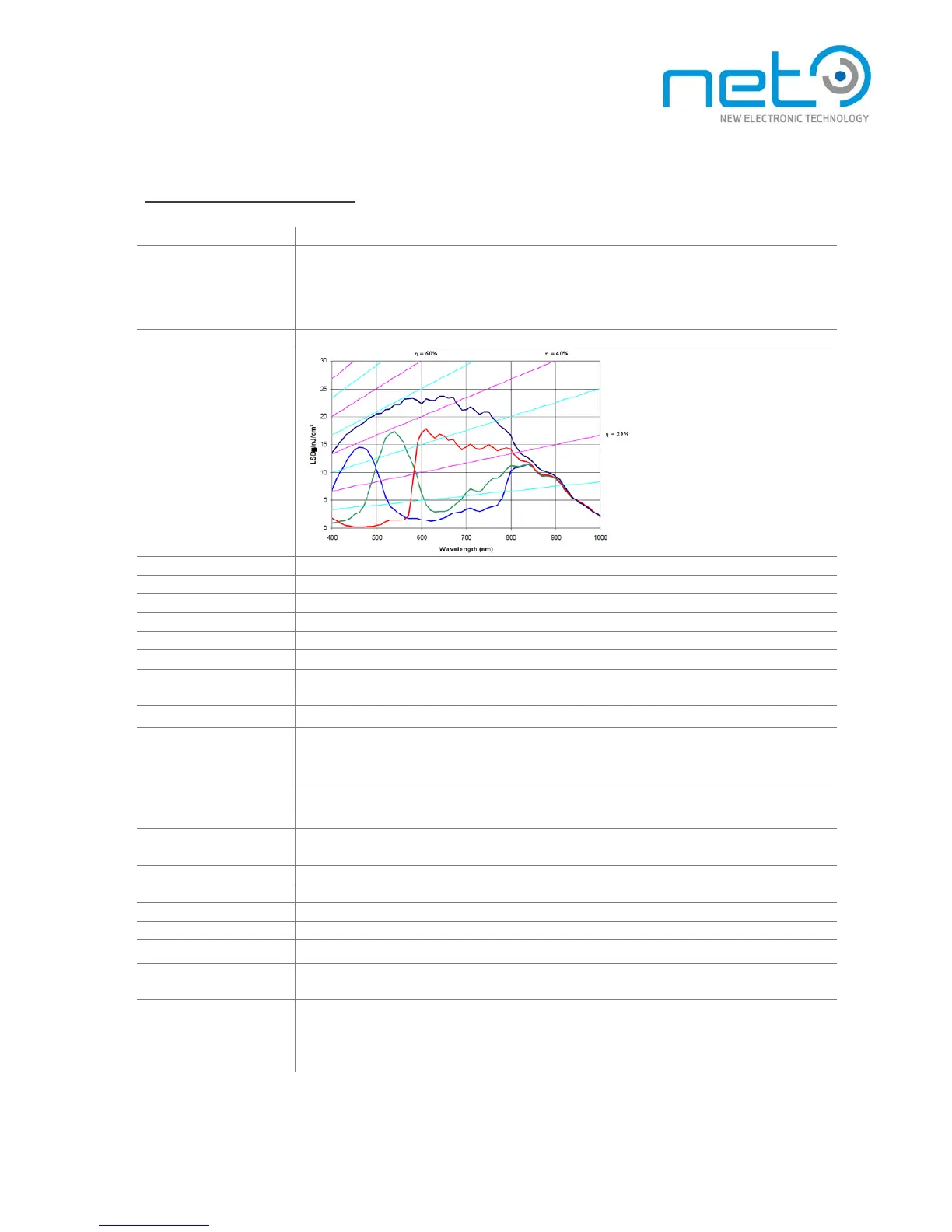

Spectral sensitivity
Monochrome/color
monochrome
resolution (H×V)
1600 x 1200 pixels
F r a m e r a t e
50
Video format
10-bit, single tap
Scanning
pro gr essive
Pixel size (H×V)
4.5 × 4.5 µm
Sensor size (H×V)
7.200 × 5.400 mm
Shutter
global, rolling, global reset 31–1030 ms (default 10 ms)
trigger modes
Free running, Triggered mode, Global reset mode
Gain & black level
Analog gain: 0 .. 18.06 dB (default 0 dB)
• Digital gain: 0 .. 24.08 dB (default 0 dB)
• Black level: 0 .. 2.55 DN (default 0 DN)
Auto functions
Automatic black level
Region of interest (ROI)
Horizontal and vertical ROI applicable directly at the sensor
Binning
Horizontal: 2×
Vertical: 2×
Mount
C-mount (CS-mount on request)
Dimension
65×109×73 mm (W×H×L, without connectors)
W e i g h t
516 g
Power input
24 VDC ±10%, 15 W (typical) or PoE+
Digital I/O
4×opto in, 4×opto out, TTL in, TTL out, RS232 interface
Supported operating
s ys t e m s
Microsoft Windows Embedded Standard 7, Linux
Directly supported
image processing
libraries
Adaptive Vision Studio, Halcon, ActivVisionTools, Common Vision Blox, MATLAB, OpenCV
