Pins 14, 19, 20 on the DP connector are not connected.
Pins 1, 4, 6, 7, 8, 9 on the RS232 D-sub 9 connector are not connected.
The cable carries following signals via twisted pair wires: ML0+/ML01, ML1+/ML1-, ML2+/ML2-,
ML3+/ML3-, AU X +/AU X -, USB-/USB+.
All grounds are connected together.

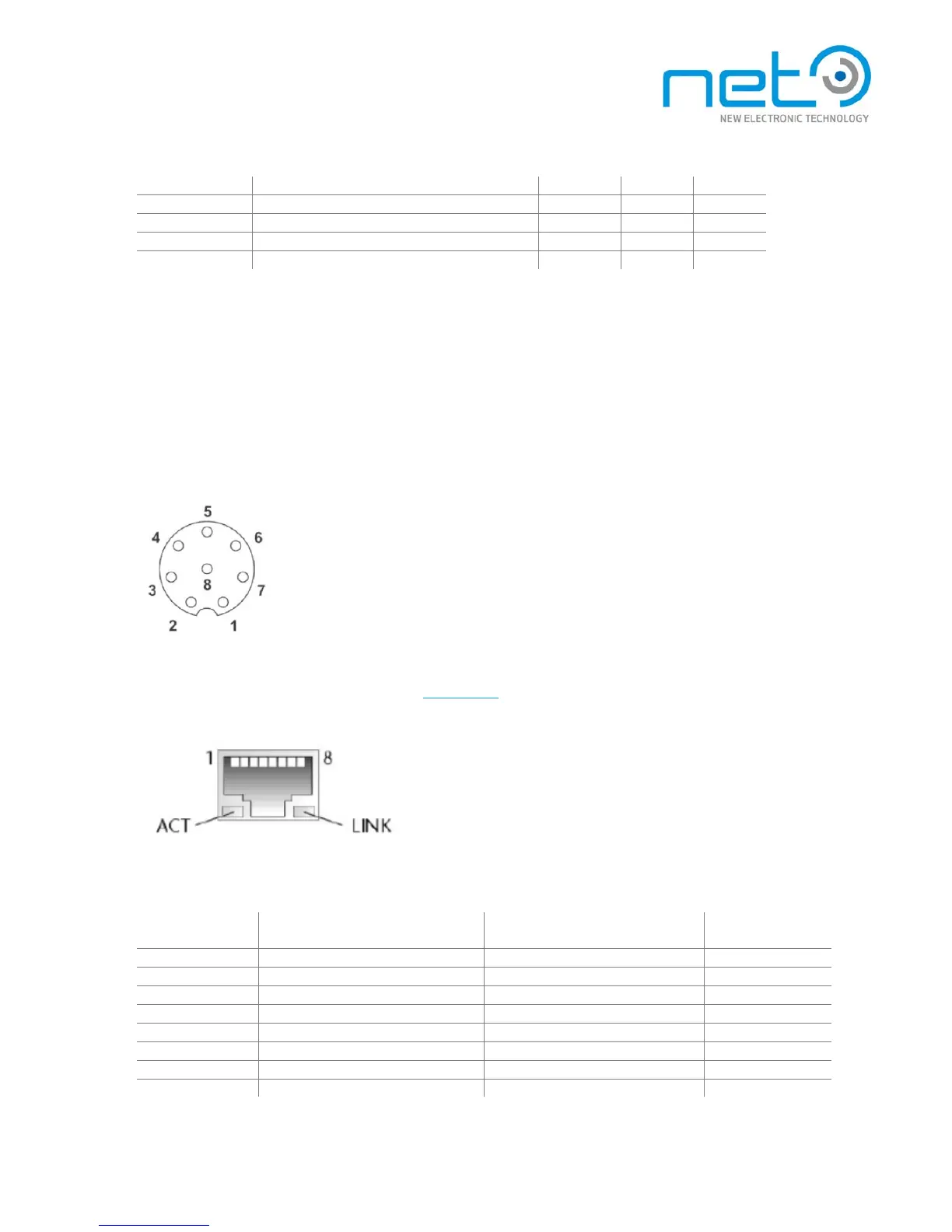

Ethernet connector
8-pin female M12 Ethernet connector.
CORSIGHT Ethernet connector
An adapter cable is available (see S e c t i o n “ Acce ssories
”), with standard Ethernet connector, 8P8C
modular plug, often also referred to as RJ-45.
Ethernet RJ-45 connector
CORSIGHT Ethernet connector, pinout
Pin
Signal (1000BASE-T)
Signal (10BASE-T ,
100BASE_TX)
Pin RJ-45
1
BI_DC-
NC
5
2
BI_DD+
NC
7
3
BI_DD-
NC
8
4
B I _D A -
TX-
2
5
BI_DB+
RX+
3
6
B I _D A +
TX+
1
7
BI_DC+
NC
4
8
BI_DB-
RX-
6
