Connector and cable description
All the grounds from individual connectors are connected inside the camera.
CORSIGHT connectors
I/O connector

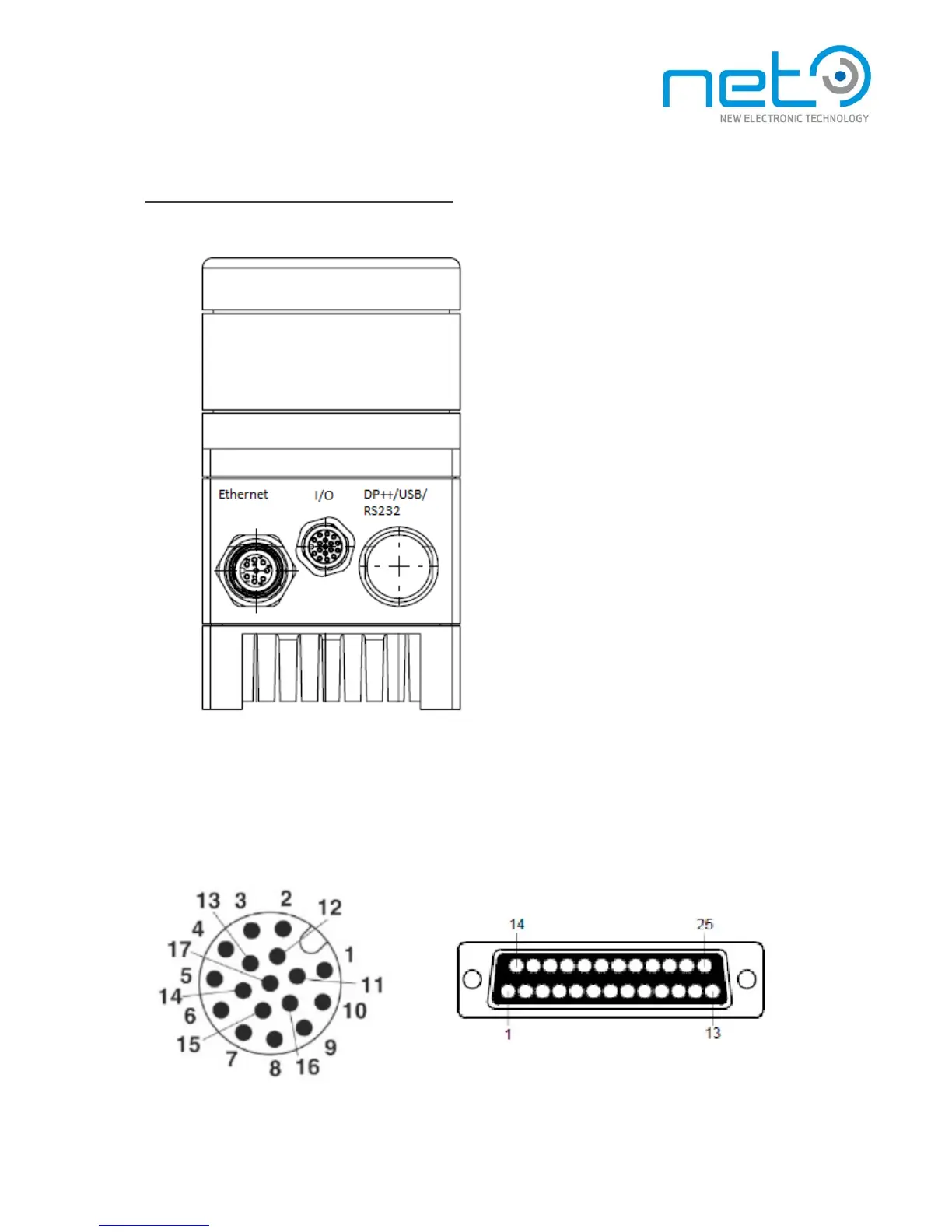

17-pin male M12 connector for digital i/o (optocoupler and TTL inputs/outputs) and power input.
CORSIGHT I/O connector CORSIGHT I/O adapter cable, D-sub 25-pin connector
