CORSIGHT COL6270M2 /COL6435M2

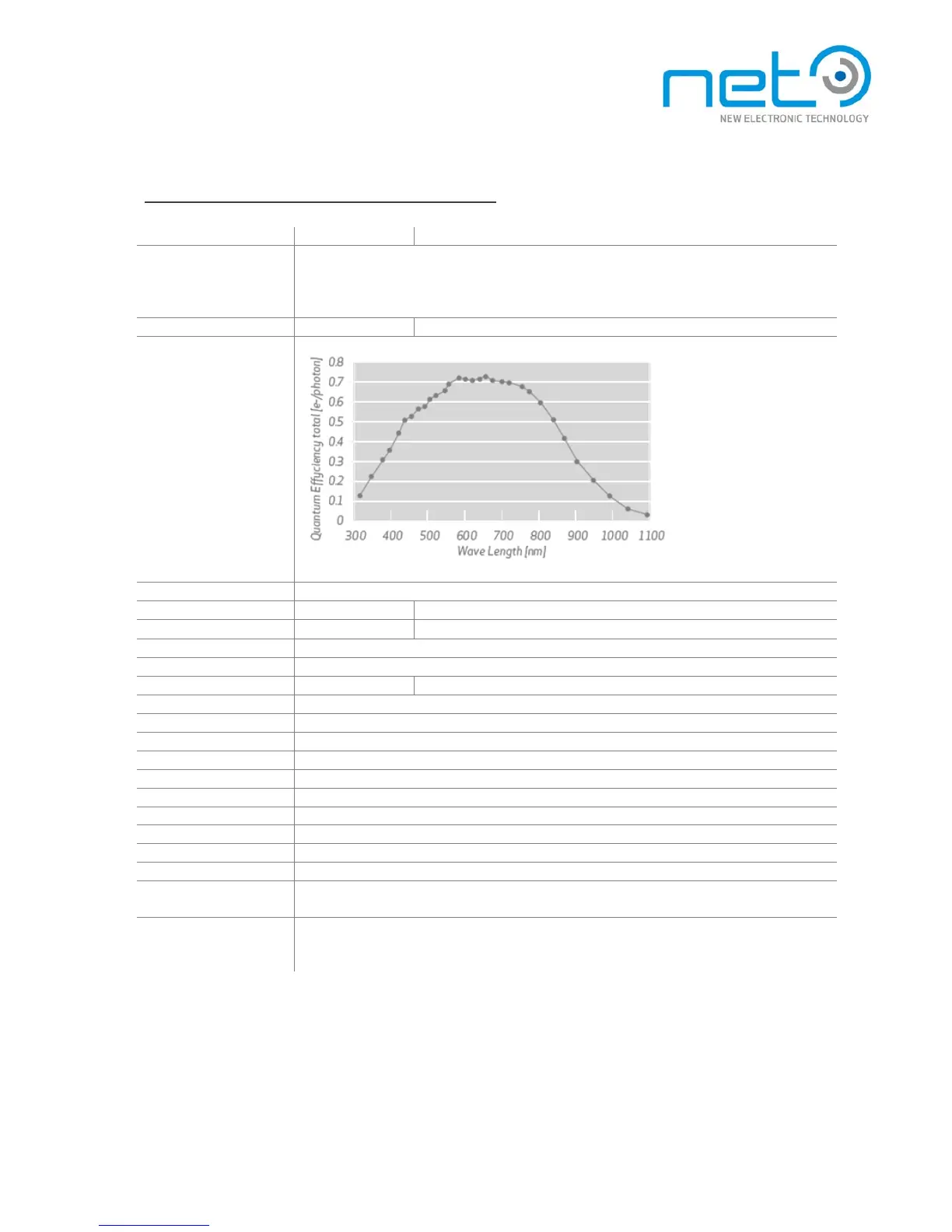

Specification
COL6270M2
COL 6435M2
PC technology
Embedded PC with Intel Atom E3845 1.91GHz, 4GB DDR3/1333MHz, 16GB built-i n S A T A -
SSD flashdisk, µSD card slot, Gigabit Ethernet interface, USB2 interface, DP++ output, 2×
WLAN/Bluetooth antenna connector, LUT for image manipulation, MPEG-4/H264
encoder/decoder
Sensor
Dragster 2k7
4k3.5
S p e c t r a l sensitivity
Monochrome/color
monochrome
Number of pixels
2048
4096
Pixel size [μm]
7.00 × 7.00 µm
3.50 × 3.50 µm
Video format
12-bit, single tap
Sensor length
14.33 mm
Line scan rate [kHz]
37
18.5
Flat field correction
Yes
Exposure control
Yes
Auto functions
Automatic black level
Trigger modes
free running, triggered model
Gain & black level
analog gain (0...12 dB), digital gain (-6...20 dB)
Mount
C-mount (CS-mount on request)
Dimension
65×109×73 mm (W×H×L, without connectors)
W e i g h t
516 g
Power input
24 VDC ±10%, 15 W (typical) or PoE+
Digital I/O
4×opto in, 4×opto out, TTL in, TTL out, RS-232 interface
Supported operating
s ys t e m s
Microsoft Windows Embedded Standard 7, Linux
Directly supported
image processing
libraries
Adaptive Vision Studio, Halcon, ActivVisionTools, Common Vision Blox, MATLAB, OpenCV
