CORSIGHT CO1041M2

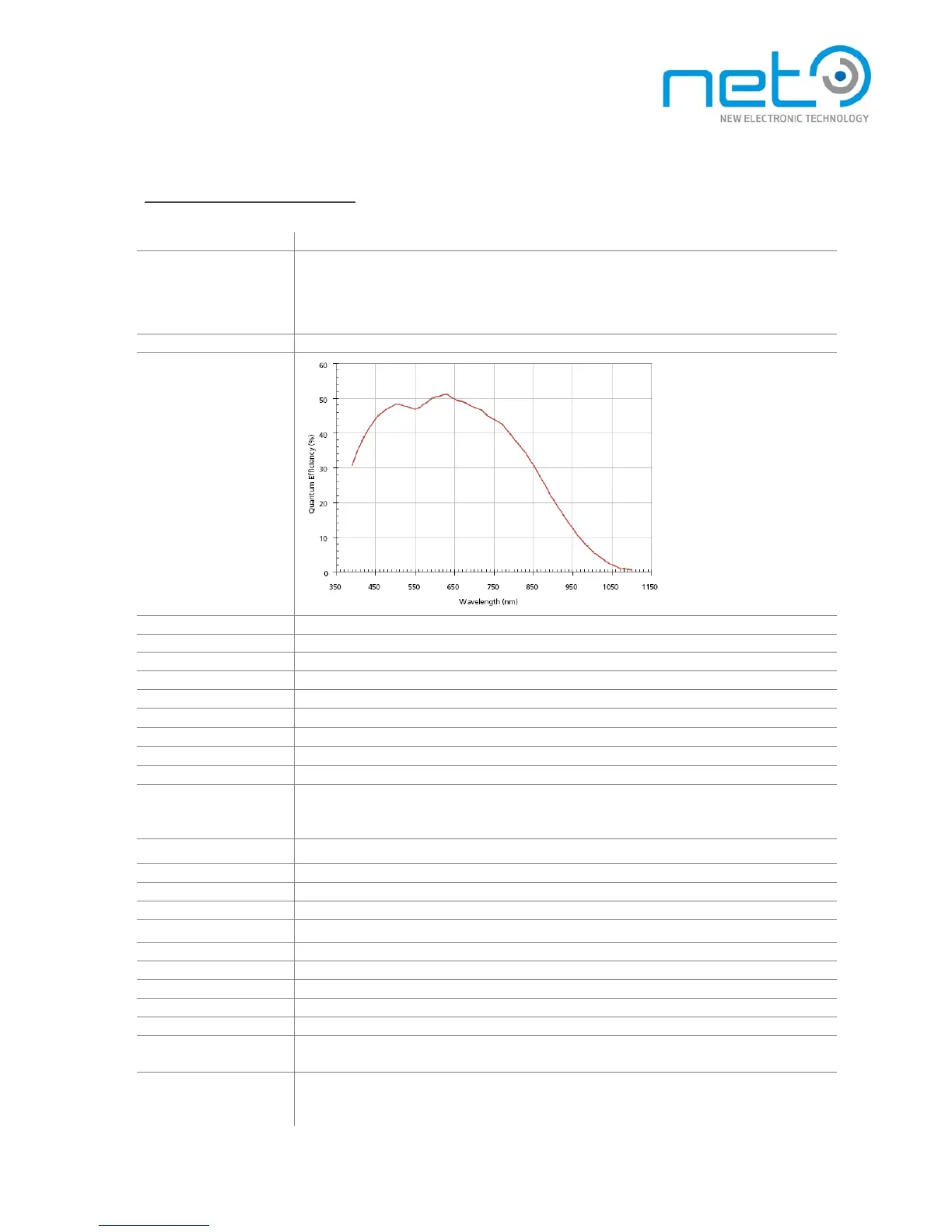

Specification
CORSIGHT CO1041M2
PC technology
Embedded PC with Intel Atom E3845 1.91GHz, up to 4GB DDR3/1333MHz, 16GB built-in
S A T A -SSD flashdisk, µSD card slot, Gigabit Ethernet interface, USB2 interface, DP++
output, 2× WLAN/Bluetooth antenna connector, LUT for image manipulation, MPEG-
4/H264 encoder/decoder
Sensor
1/3" CMOS, parallel readout, type Aptina MT9V034
Spectral sensitivity
Monochrome/color
monochrome
resolution (H×V)
752 × 480 pixels
F r a m e r a t e
62 fps
Video format
10-bit, single tap
Scanning
pro gr essive
Pixel size (H×V)
6 × 6 µm
Sensor size (H×V)
4.512 × 2.88 mm
Shutter
global, 10 –1000 ms (default 15 ms)
trigger modes
Free running, Triggered mode
Gain & black level
Analog gain: 0 .. 12.04 dB (default 12 dB)
Digital gain: -12.04 .. 11.48 dB (default 0 dB)
Black level: 0 .. 6.35 DN (default 0 DN)
Auto functions
Auto exposure, Automatic analog gain control, Automatic black level
Signal/noise ratio
42 dB
Dynamic range
49 dB
Region of interest (ROI)
Horizontal and vertical ROI applicable directly at the sensor
Binning
Horizontal: 2× 4×, Vertical: 2× 4×
Mount
C-mount (CS-mount on request)
Dimension
65×109×73 mm (W×H×L, without connectors)
W e i g h t
516 g
Power input
24 VDC ±10%, 15 W (typical) or PoE+
Digital I/O
4×opto in, 4×opto out, TTL in, TTL out, RS232 interface
Supported operating
s ys t e m s
Microsoft Windows Embedded Standard 7, Linux
Directly supported
image processing
libraries
Adaptive Vision Studio, Halcon, ActivVisionTools, Common Vision Blox, MATLAB, OpenCV
