NMC-DC
INSTALLATION MANUAL
Page: of 109 pagesRevision: 01 IDoc. Name: NMC-DC I Installation Manual
Crop Management Technologies
12V DC Latch (Normally Open Connection)
Relevant screws
-Red wires on top terminal (+)
-Black wires on middle terminal (-)
-If there is a 3 wired solenoid, insert
white wires on lower terminal (com)
Until wires are locked
1
2
3

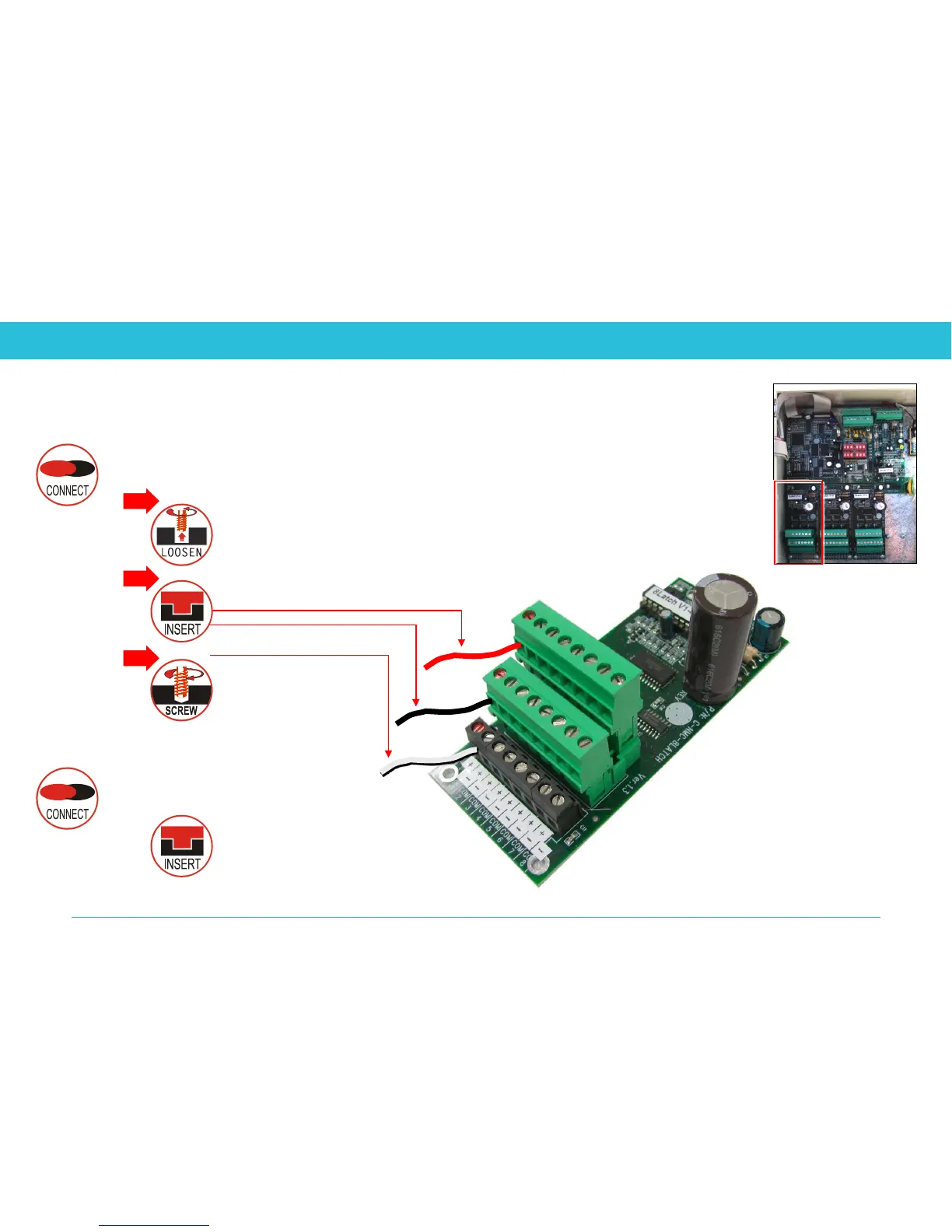

6.4 Output Terminals
6.4.1 12V DC Latch Connection
12V DC Latch (Normally Closed Connection)
-Black wires on top terminal
-Red wires on middle terminal
-If there is a 3 wired solenoid, insert
white wires on lower terminal
Common
24
