8. Controller Test Procedure

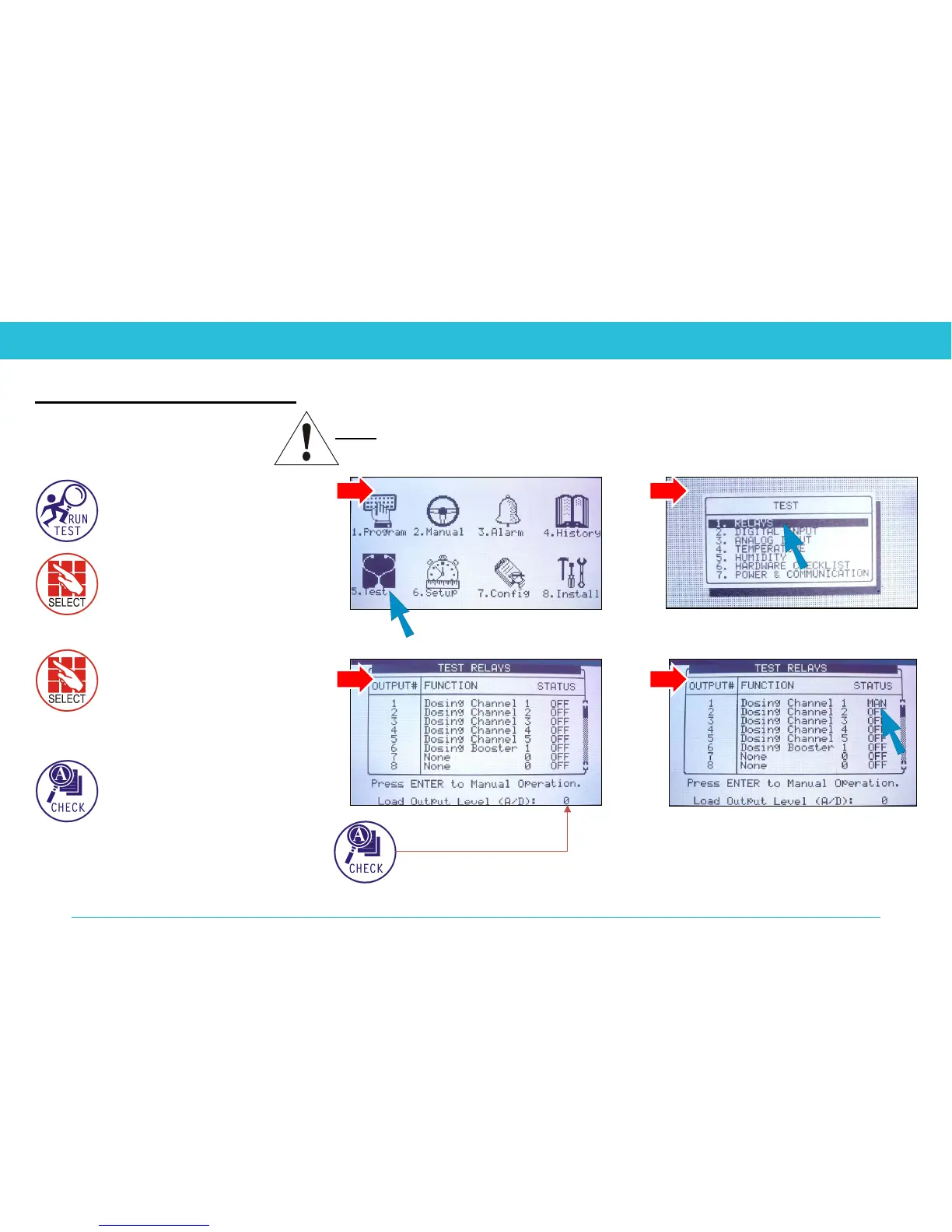

“5. Test” in Main Menu
“1. Relays” to test output
devices in the field (dry test)
Highlight status, press ENTER,
“MAN” appears
To end process press ENTER
again
For Irrigation valve test,
send someone out in field
with Walky-Talky to verify
status
2
3
1
4
Output Level (A/D): ≤300 A/D
when all outputs are on.
If output level is above 300, see
Troubleshooting Appendix B
8.1 Test Relays
NOTE: In order to bring solenoid to Normally Open/Closed position either manually open
and close each output, or switch controller off and back on again for automatic positioning.
39
