NMC-DC
INSTALLATION MANUAL
Page: of 109 pagesRevision: 01 IDoc. Name: NMC-DC I Installation Manual
Crop Management Technologies

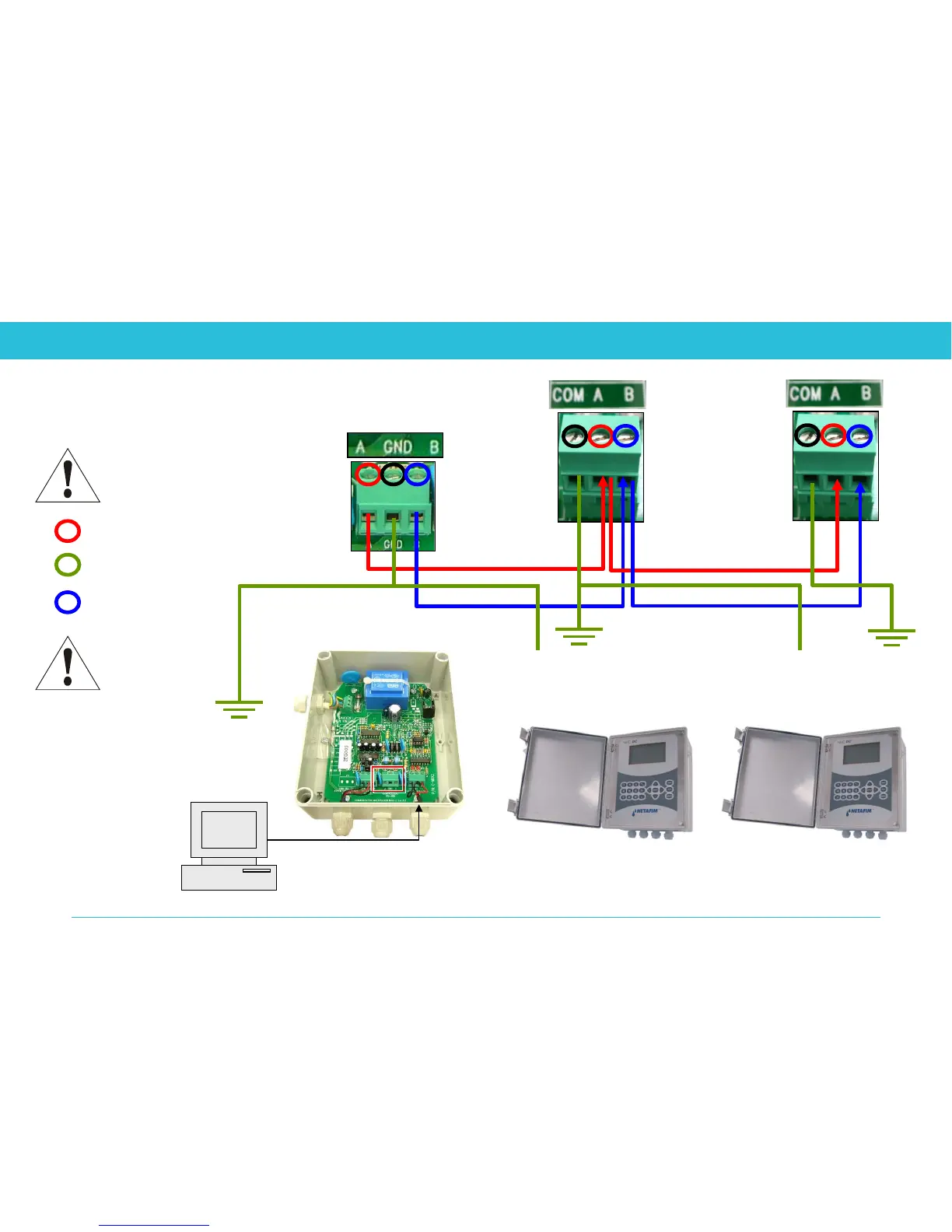

6.6.2 Wiring and Controller Setup
MUX RS 485
B
A
DB9
connector
Ground (shield)
Do not connect the
end of the cable’s
shield to the ground.
Use 2 wire shielded
communication cable.
NMC-DC Controller 1 NMC-DC Controller 2
Option A: RS-485
32
