Netafim nmc-pro Installation Manual
4
of 1
of 1 rating
110 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
NMC
-
DC
INST
ALLA
TIO
N MANUAL
Page:
of
109 pages
Rev
isi
on:
01
I
Doc. Nam
e: NMC
-
DC
I
I
nstall
ation
M
anual
Cr
op Managem
ent Technologie
s
Digi
tal
I
nput
s
(
1
-4
):
W
ater
Meter
Pres
sure
sw
i
tch

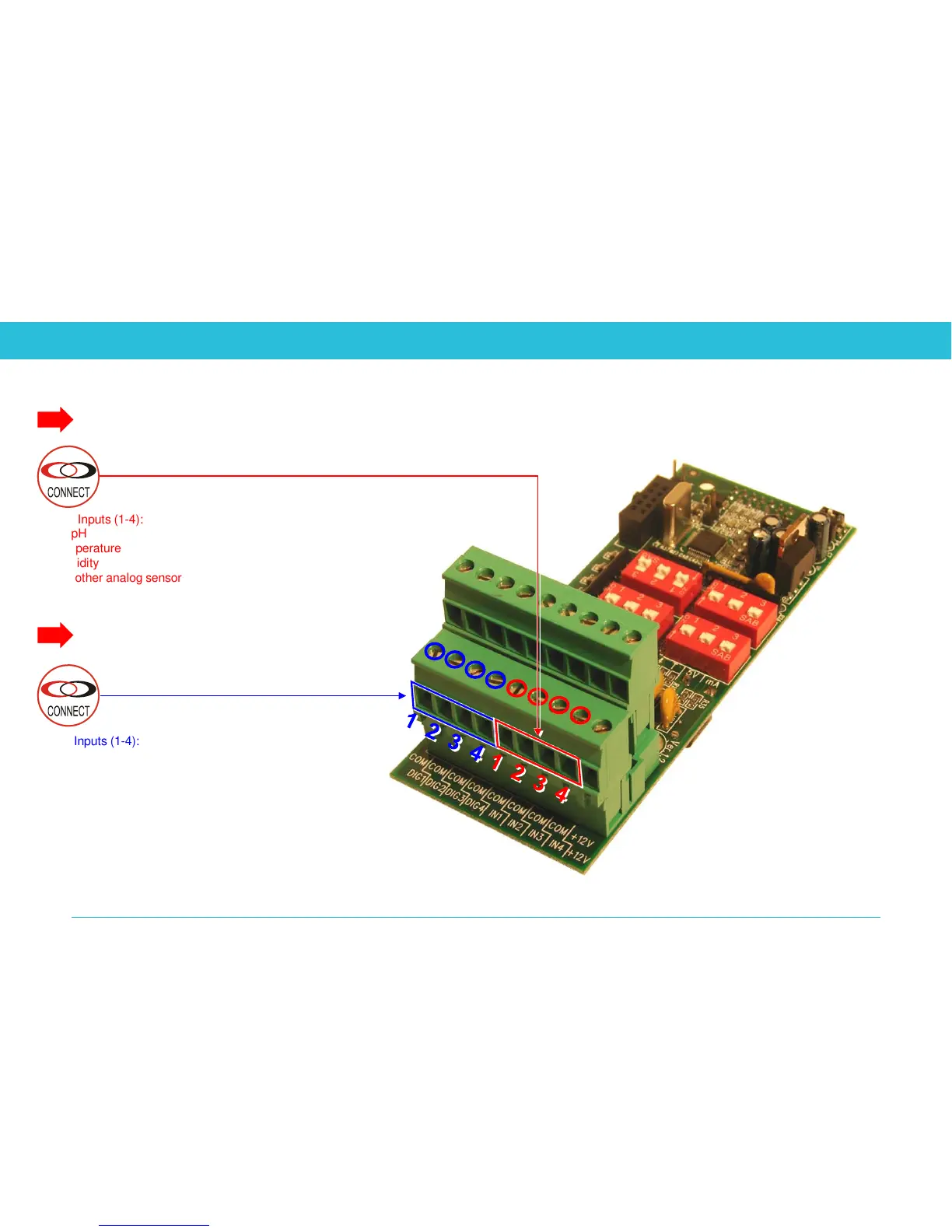

Fl
oats
Any ot
her ON/O
FF inputs
2
3
Anal
og
I
nput
s
(
1
-4
):
EC/
pH
Tem
per
at
ur
e
Hum
i
di
t
y
Any
ot
her
anal
og
s
ens
or
27
27
29
Table of Contents
Default Chapter
3
Method
3
Table of Contents
4
1 General Instructions
8
2 Basic Requirements for On-Site Preparation
9
3 NMC-DC General Dimensions
10
4 Unpacking and Installation
11
Unpacking
11
Solar Panel and Controller Installation
13
5 Power Supply Wiring
14
Main Battery Wiring
14
Solar Panel Wiring
16
Cold Start
17
Set Language, Date and Time
19
6 Electrical Installation
20
Input/Output Layout
20
Input/Output Card Layout
21
Controller Hardware Verification
22
Solenoid Installation
23
Output Terminals
25
DC Latch Connection
25
DC Latch Hydraulic Connection
26
Input Terminals
27
Wring
27
Digital Input Connection
29
Analog Input Connection
30
Analog Input Dip Switch Selections
31
PC and Inter-Controller Communication
32
Card Installation
32
Wiring and Controller Setup
33
7 Controller Set-Up
35
Hardware Checklist
35
Output Definition
36
Digital Input Definition
38
Analog Input Definition
39
8 Controller Test Procedure
40
Test Relays
40
Digital Input Test
41
Analog Input Test
42
Power & Communication Test
44
9 System Configuration Procedure
45
Device Delay Configuration
45
Pump Station Configuration
46
Valve Configuration
47
Valve Flow Rate
47
Water Meter
48
Dosing Channel Configuration
49
Dosing Configuration
50
Ec/Ph Sensor Range
51
History Resolution
52
System Nutrigation™ Check
53
Simulation
54
Water Run Time
55
Start/Stop Valve
56
Data Plug
57
10 Controller Advanced Settings
58
Pump Station Configuration
58
Multiple Water Meters
61
Drain Meter Measurement
63
Drain Log
64
Various Dosing Configurations
65
Method
65
Method
66
Dosing Configuration
67
Ec/Ph Control
67
Ec/Ph Control Alarm Setting
67
Dual Ec/Ph Sensors
68
Advanced System Setup
69
SMS Setup
72
Edit SMS Phonebook
73
SMS Personal Message
73
Troubleshooting
79
Controller Components
100
Other manuals for Netafim nmc-pro
User Guide
60 pages
Installation Guide
167 pages
4
Based on 1 rating
