NMC-DC
INSTALLATION MANUAL
Page: of 109 pagesRevision: 01 IDoc. Name: NMC-DC I Installation Manual
Crop Management Technologies

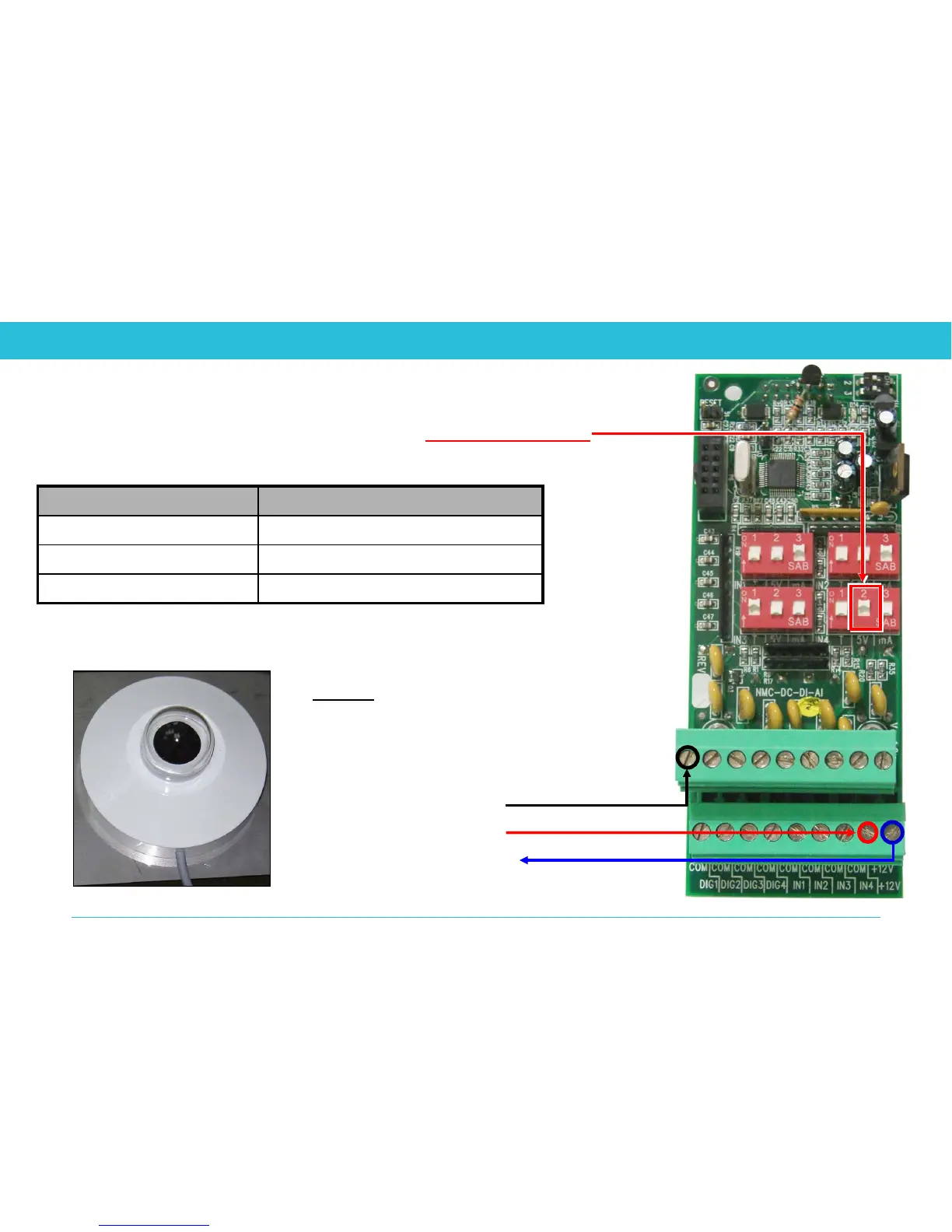

2. Pyranometer Connection- Netafim
Pyranometer – IN 4 :
Sensor typeDip Switch position
Temperature sensor (30kΩ)Temp
Radiation0-5V
EC, pH, CO2…4-20mA
Dip Switch position
Brown +12VDC
Green - COM
White - Input
Sensor Wires
Cable type
3x0.5mm
2
(20AWG)
Shielded
