NMC-DC
INSTALLATION MANUAL
Page: of 109 pagesRevision: 01 IDoc. Name: NMC-DC I Installation Manual
Crop Management Technologies
Sensor typeDip Switch position
Temperature sensor (30kΩ)Temp
Pressure inlet, Pressure outlet0-5V
Pressure inlet, Pressure outlet4-20mA
Pressure inlet – IN 2 :
Pressure outlet– IN 3 :
P in - COM
P in - Input
P out - COM
P out - Input
Filter Station

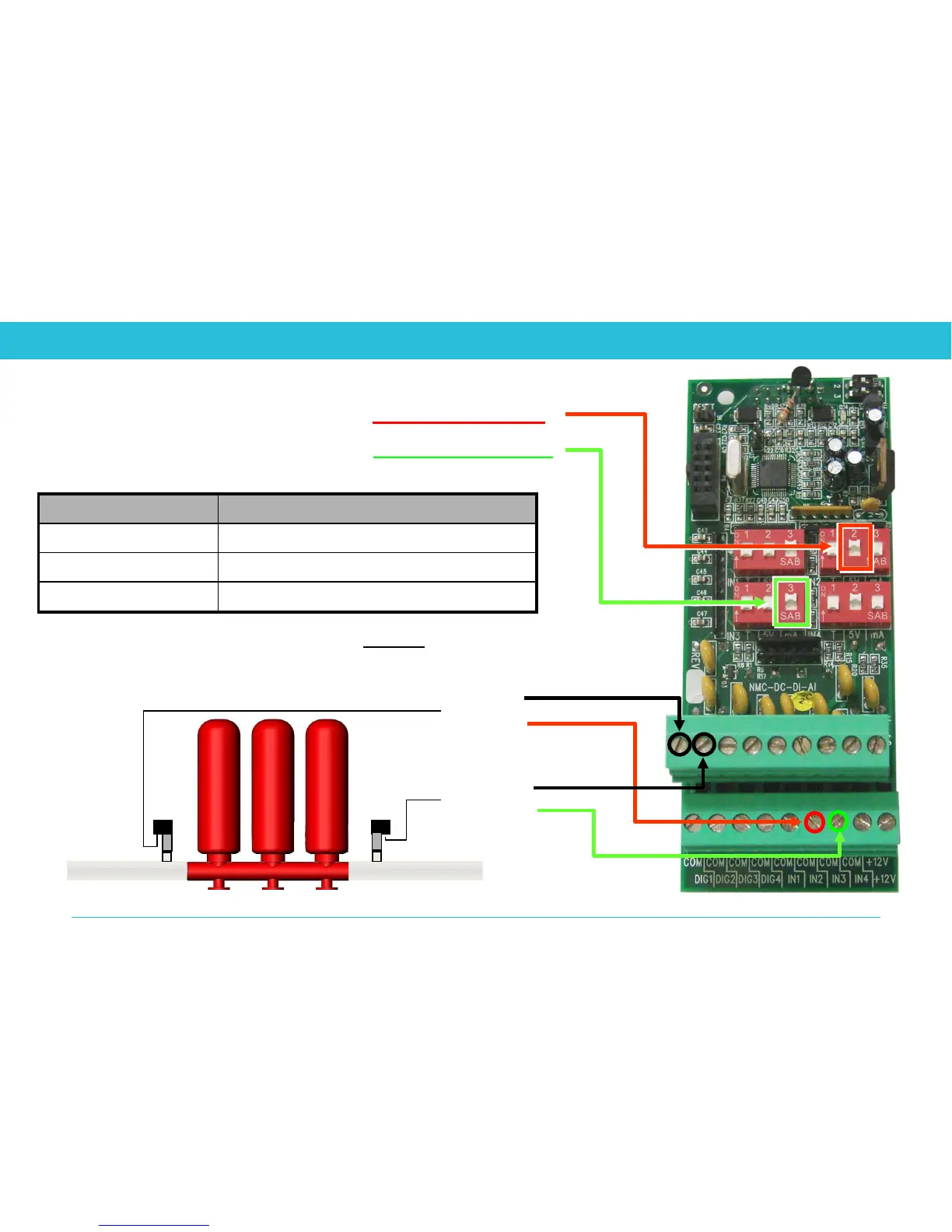

3. Pressure Transducer Connection
Cable type
3x0.5mm
2
(20AWG)
Shielded
