SCREENGUARD
™
INSTALLATION AND USER MANUAL 33
TROUBLESHOOTING

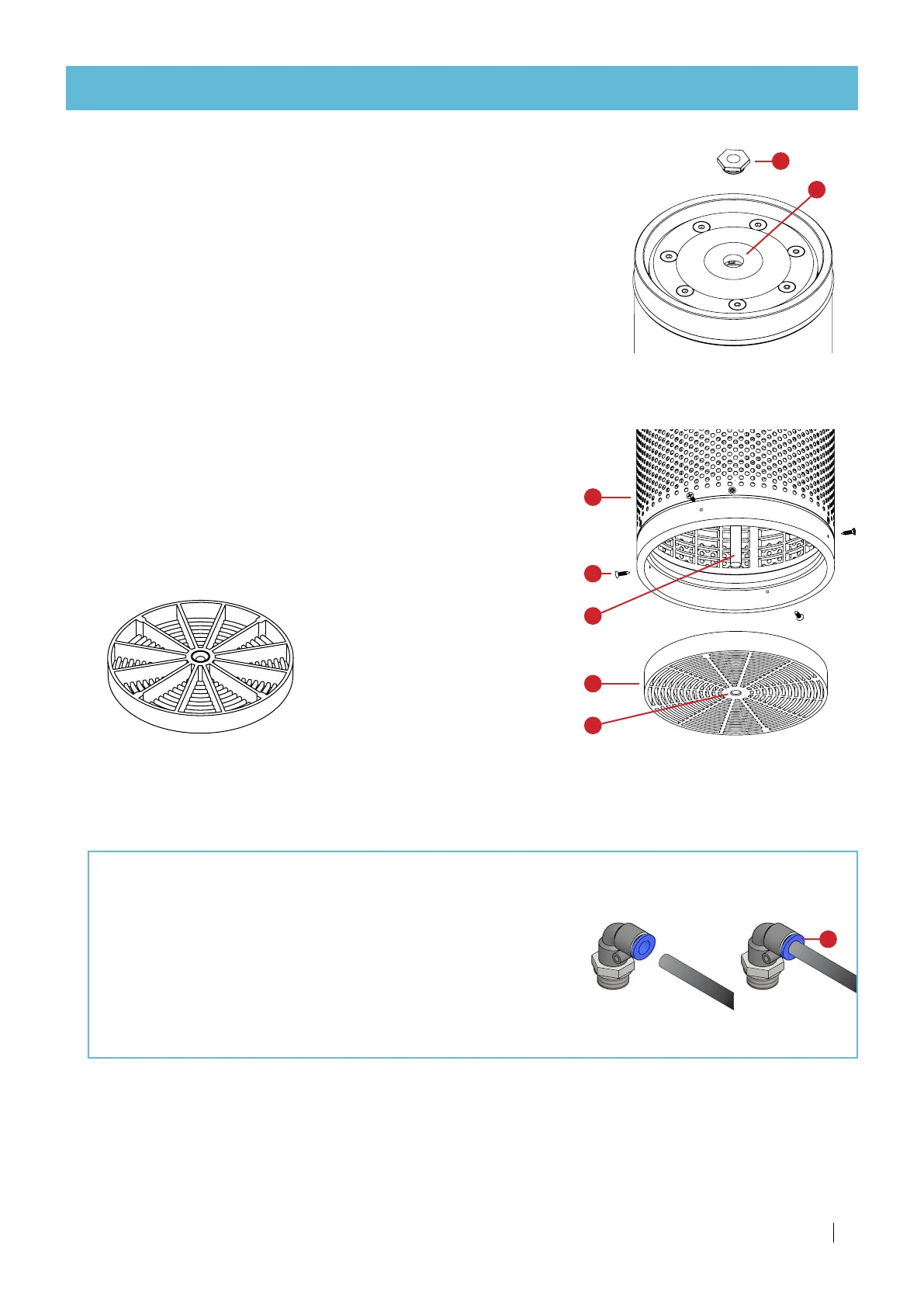

Turbine Brass Bearing replacement
Disassembly:
1. Remove the turbine brass bearing (A) from the turbine set (B)
with a 32mm wrench.
Assembly:
1. Place a new turbine brass bearing in its stead. Hand tighten properly.
A
B
A
Connection:
1. Make sure the tip of the tube is cut neatly and straight.
2. Simply insert the tube all the way into the fast connector.
3. Slightly pull the tube back to make sure it is properly inserted.
Disconnection:
1. Push back and hold the blue locking ring (A) and pull the tube out of the fast connector.
Control tube fast connector
Coarse Screen with Bearing replacement
Disassembly:
1. Manually unscrew 4 screws (A) with a crosshead screwdriver.
2. Pull the Plastic Coarse Screen with Bearing (B) from the screen
assembly (C).
Assembly:
1. Insert a new Plastic Coarse Screen with Bearing (B) into the
screen assembly (C). Mind correct orientation:
This side
facing inside
the screen
assembly.
Make sure the Suction Assembly Shaft (D) is aligned and
properly inserted into the Bearing (E).
2. Manually rotate the Suction Assembly. It should rotate freely.
C
B
A
E
D
